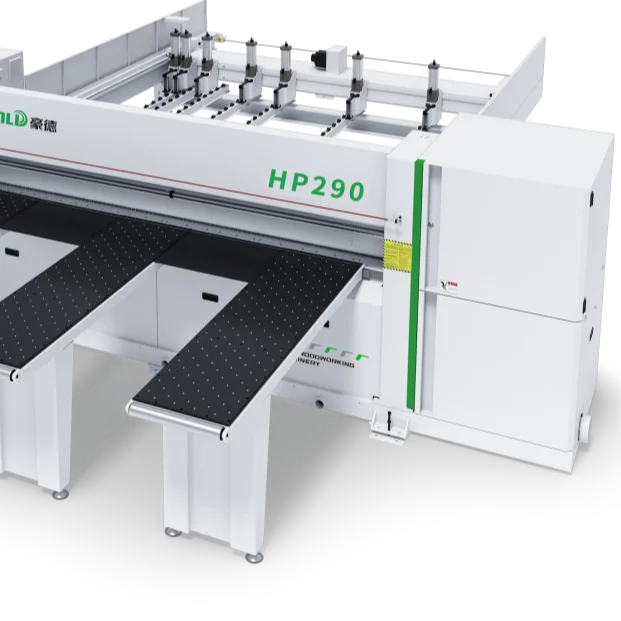

FUMA HP290C Vertical CNC Panel Saw for MDF Board Cutting 2900mm Max Length PLC Controlled Table Saw

FUMA HP290C Vertical CNC Panel Saw for MDF Board Cutting 2900mm Max Length PLC Controlled Table Saw
  • FUMA HP290C Vertical CNC Panel Saw for MDF Board Cutting 2900mm Max Length PLC Controlled Table Saw

    • FUMA HP290C Vertical CNC Panel Saw for MDF Board Cutting 2900mm Max Length PLC Controlled Table Saw

    Request a Quote
    TypePanel Sawvoltage380V/50HZ
    StyleVERTICALuseWoodworking
    core componentsPLCmachinery test reportProvided
    Key Selling PointsCompetitive Pricevideo outgoing-inspectionProvided
    weight (kg)4000power (kw)23
    dimension(l*w*h)4800*1350*1900/4200*930*500Mechanical arm's running distance2900mm
    Max.height blade105mm(intelligent control)Diameter of main saw400*4.4*75mm
    Diameter of scoring saw160*4.4-5.4*45mmSaw socket forward speed5-80m/min
    Saw socket backward speed80m/minMechanical arm's speed0-80m/min
    floor area5000*6000mmAfter Warranty ServiceVideo technical support
    Min. panel size70*70MM
