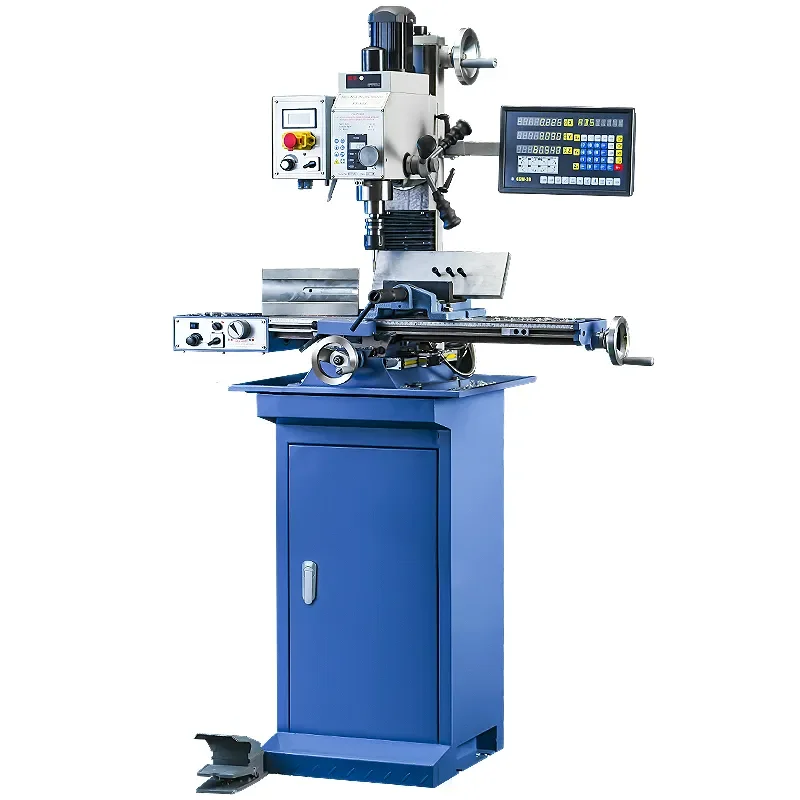

FS 30V 1000W Vertical 220V Conventional Automatic Variable Speed Digital Display Wood Metal Feed Drilling and Milling Machine
FS 30V 1000W Vertical 220V Conventional Automatic Variable Speed Digital Display Wood Metal Feed Drilling and Milling Machine
| type | VERTICAL | machining capacity | Heavy Duty |
| table travel (x) (mm) | 300 | table travel (y) (mm) | 200 |
| table travel (z) (mm) | 50 | spindle taper | NT30 |
| voltage | 220V | machinery test report | Provided |
| video outgoing-inspection | Provided | key selling points | Multifunctional |
| range of spindle speed(r.p.m) | 50 - 2250 r.p.m | weight (kg) | 125 |
| max. table load(kg) | 30 | dimension(l*w*h) | 500*450*760mm(19.69*17.72*29.92in) |
| Product name | Drilling Milling Machines | Machine Type | FS-30V |
| Motor power | 1000W | Max.driling dia | 30mm |
| Max. milling capacity(End milling) | 20mm | Max. milling capacity(Face milling) | 72mm |
| T-slot size | 3*12mm | G.W/N.W | 145/125KG |
| Packing size | 750*710*940mm | Warranty of core components | 1 Year |
