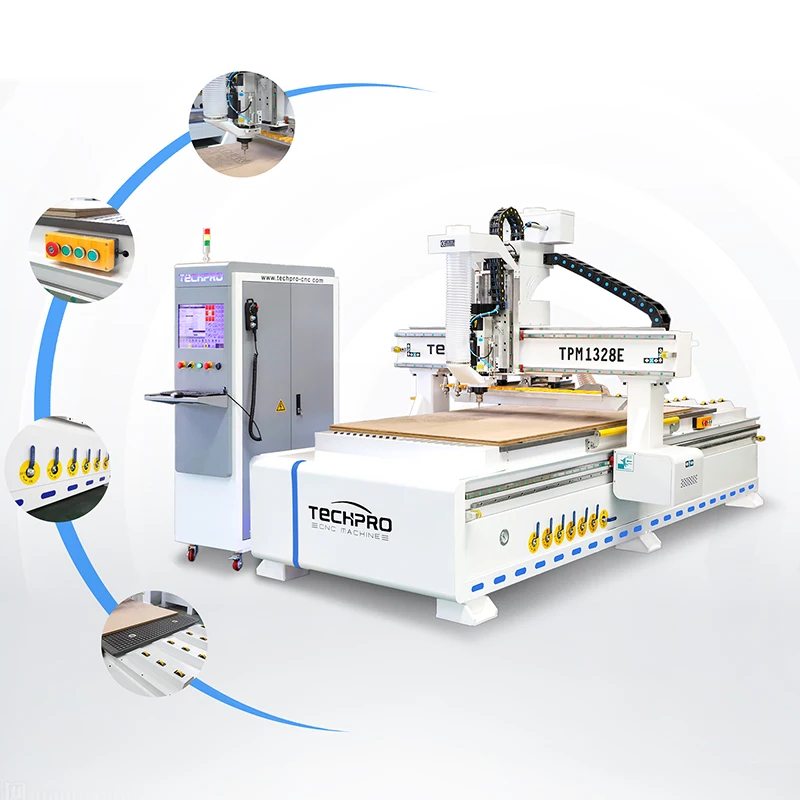

Fast Speed CNC Router ATC 1325 3 Axis CNC Wood Router Manufacturer for Wood Cabinet Door Making MDF Cutting Wooden Furniture
Fast Speed CNC Router ATC 1325 3 Axis CNC Wood Router Manufacturer for Wood Cabinet Door Making MDF Cutting Wooden Furniture
| Working Table Size(mm) | 1300×2500 | number of axes | 3 |
| voltage | AC380V/50HZ | machine type | CNC Router |
| No. of Spindles | Single | key selling points | Competitive Price |
| core components | Bearing, Motor, Gear, PLC, Engine, Gearbox, Other | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| Power (kW) | 20 | weight (kg) | 2000 |
| range of spindle speed(r.p.m) | 0 - 24000 rpm | positioning accuracy (mm) | 0.01 |
| travel (x axis)(mm) | 1300 | travel (y axis)(mm) | 2500 |
| repeatability (x/y/z) (mm) | 0.01 | Spindle Motor Power (kw) | 9.0KW(12.07hp) |
| dimension(l*w*h) | 1300*2500*300mm(51.18*98.43*11.81in) | Product name | ATC CNC Router |
| Application | Kitchen Cabinet Doors Furnitures Making | Working area | 1300mm*2500mm*300mm |
| Spindle | 9.0KW ATC Air Cooling Spindle | Control system | Taiwan LNC/Syntec Control System |
| Motor and driver | Leashine AC Servo Motor and Driver | Table Surface | Vacuum Adsorption + T-slot Table |
| Guide rail | Taiwan Hiwin Square Guide Rail | Inverter | Fuling Inverter |
| Transmission | Helical Rack Pinion |
