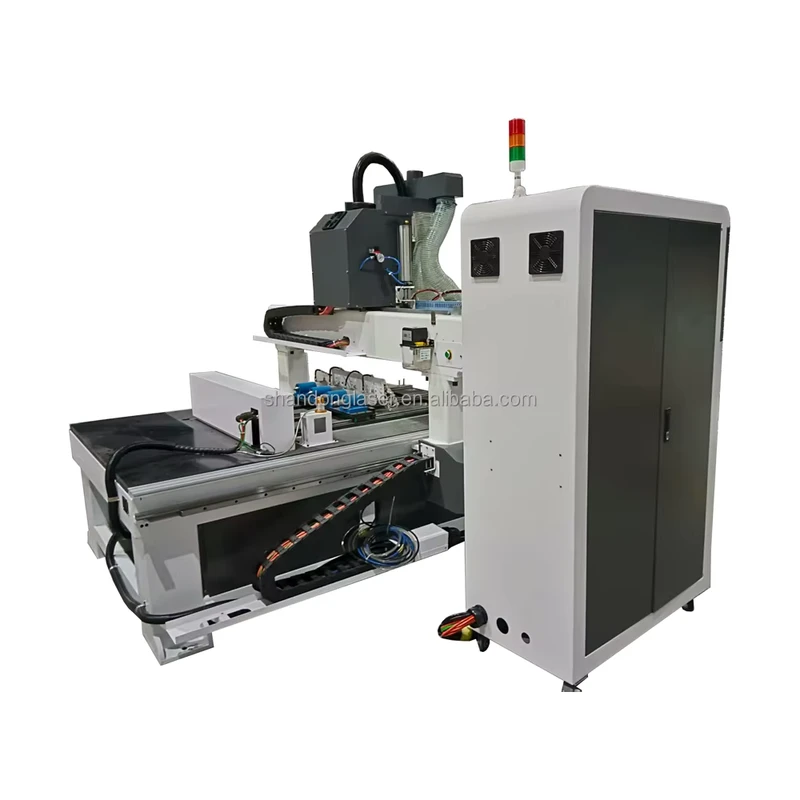

Factory Direct Sales of 1310 CNC Router Machine Four-Head Cylindrical 3D Engraving Machine

Factory Direct Sales of 1310 CNC Router Machine Four-Head Cylindrical 3D Engraving Machine
  • Factory Direct Sales of 1310 CNC Router Machine Four-Head Cylindrical 3D Engraving Machine

    • Factory Direct Sales of 1310 CNC Router Machine Four-Head Cylindrical 3D Engraving Machine

    Request a Quote
    number of axes4voltage380 V, 220V
    machine typeCNC RouterNo. of SpindlesMulti
    key selling pointsMultifunctionalAccessory TypeDust collection
    core componentsBearing, Motor, Pump, Gear, PLC, Pressure Vessel, Enginecnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    weight (kg)1000range of spindle speed(r.p.m)0 - 24000
    positioning accuracy (mm)0.1travel (x axis)(mm)1000
    travel (y axis)(mm)1300repeatability (x/y/z) (mm)0.02
    Spindle Motor Power (kw)2.2dimension(l*w*h)2000*1600*1700mm(78.74*62.99*66.93in)
    Product name4 Axis Cnc RouterApplicationCarbon fiber tube cutting
    KeywordsCNC Carving MachineControl systemDSP A18
    Spindle2.2kw Water Cooling SpindleAfter-sales Service ProvidedOnline Support
    Working area1000x1300mmTransmissionXY-axis:rack Z-axis:ball Screw
    MotorLeadshine Hybrid Servo MotorInverterFuling Inverter
