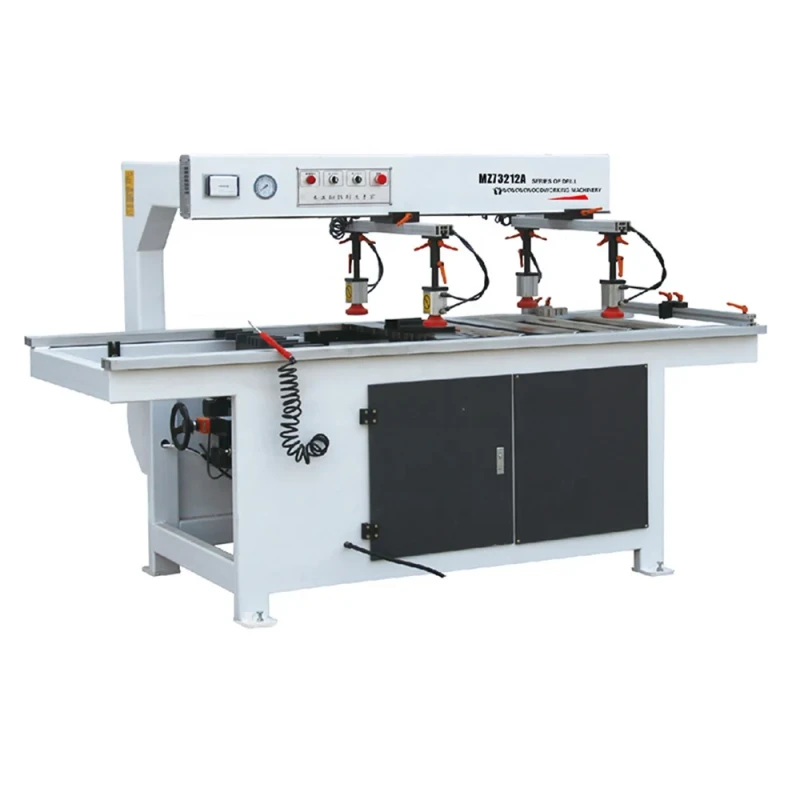

Factory Direct Sales 21 Drills and Row Low Power Consumption Multiple Row Drilling Machine for Furniture

Factory Direct Sales 21 Drills and Row Low Power Consumption Multiple Row Drilling Machine for Furniture
  • Factory Direct Sales 21 Drills and Row Low Power Consumption Multiple Row Drilling Machine for Furniture

    • Factory Direct Sales 21 Drills and Row Low Power Consumption Multiple Row Drilling Machine for Furniture

    Request a Quote
    voltage380V/50Hz 3PHS & Customizedcnc or notNormal
    machinery test reportProvidedvideo outgoing-inspectionProvided
    key selling pointsHorizontal & Vertical drillcore components21 drills / row
    dimension(l*w*h)2420*1150*1420mm(95.28*45.28*55.91in)Weight (KG)500
    Max drilling diametermax.=35mm(single head)D=13mm(multi-head)The maximum drilling depth60mm
    The total number of drilled shaft21*2Drill joint fit-up aperture10mm
    Max.drilling distance1220*640mmMin.drilling distance135*32mm
    Spindle speed2840rpmAir Pressure0.6~0.8Mpa
    The total power of electric motor3kW
