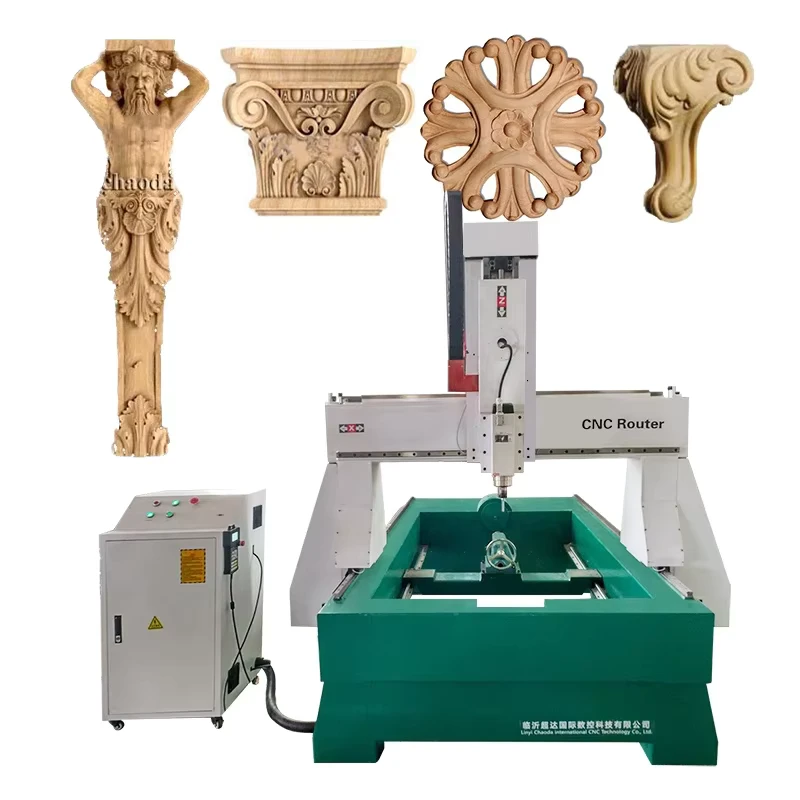

Essential Components for Rotary CNC Router Machine DSP Control System Bearing Motor for Carving Big Sculpture Wood Routers

Essential Components for Rotary CNC Router Machine DSP Control System Bearing Motor for Carving Big Sculpture Wood Routers
  • Essential Components for Rotary CNC Router Machine DSP Control System Bearing Motor for Carving Big Sculpture Wood Routers

    • Essential Components for Rotary CNC Router Machine DSP Control System Bearing Motor for Carving Big Sculpture Wood Routers

    Request a Quote
    Working Table Size(mm)1300*2500number of axes4
    voltage220V/380V/Othersmachine typeCNC Router
    No. of Spindles1key selling pointsLong Service Life
    core componentsBearing, Motor, Othercnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    Power (kW)5weight (kg)2350
    range of spindle speed(r.p.m)6000 - 18000positioning accuracy (mm)0.05
    travel (x axis)(mm)1300travel (y axis)(mm)2500
    repeatability (x/y/z) (mm)0.05Spindle Motor Power (kw)4.5
    dimension(l*w*h)3700*2400*2300mm(145.67*94.49*90.55in)Product nameCnc Router Machine With Flat table & Big Rotary Device
    StructureHeavy duty Steel T-extrusionFlat working size1300mm x 2500mm x 400mm
    Rotary working size700mm diameter ; 2000mm lengthTableRemovable; T-slot with clamps
    Spindle4.5kw air cooling spindleMotor and Driverstepper motor and driver
    InverterFulingControl system4 axis DSP
    OptionBigger size
