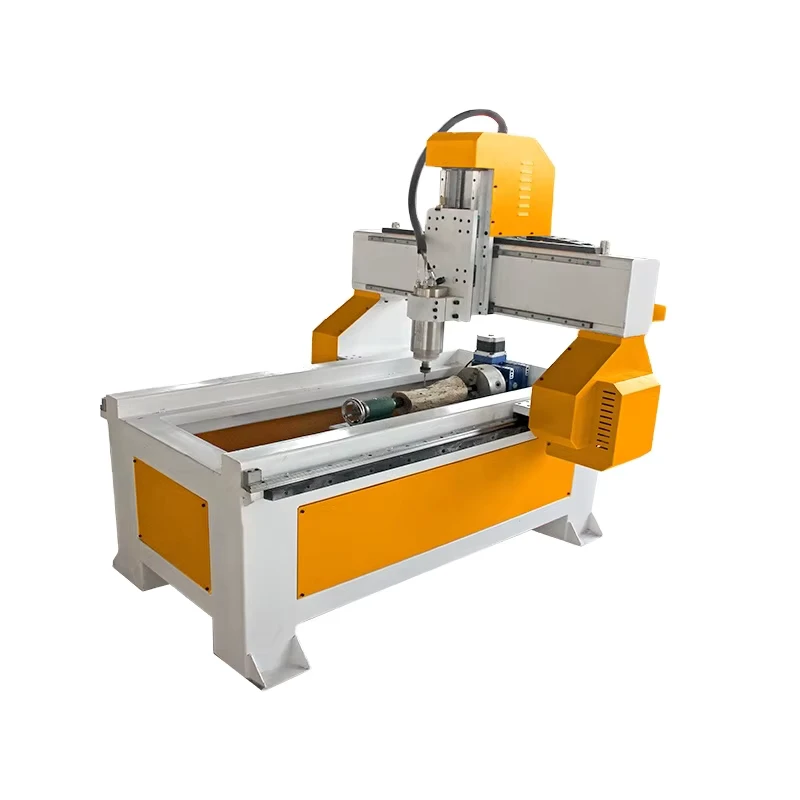

Engraving Machines Engraver Routers Carving Cutting Machine for CNC 4040 4060 6090 Small Mini Wood CNC 3D
Engraving Machines Engraver Routers Carving Cutting Machine for CNC 4040 4060 6090 Small Mini Wood CNC 3D
| Working Table Size(mm) | 600*900*200mm(23.62*35.43*7.87in) | number of axes | 3 |
| voltage | AC220V/50Hz 380V/50hz | machine type | CNC Router |
| No. of Spindles | Single/Double | key selling points | Multifunctional |
| core components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| Power (kW) | 5.5 | weight (kg) | 400 |
| range of spindle speed(r.p.m) | 6000 - 24000 rpm | positioning accuracy (mm) | 0.01 mm(0in) |
| travel (x axis)(mm) | 600 mm(23.62in) | travel (y axis)(mm) | 900 mm(35.43in) |
| repeatability (x/y/z) (mm) | 0.01 mm(0in) | Spindle Motor Power (kw) | 2.2kw/3kw/5.5kw |
| dimension(l*w*h) | 1200*1400*1600mm(47.24*55.12*62.99in) | Product name | Furniture Advertising 690 Signage Taiwan low price CNC Router |
| Application | MDF WOOD ACRYLIC ALUMINUM | Control system | DSP |
| Spindle | Water Cooling Spindle | Transmission | Taiwan TBI Ball Screw |
| Driving system | Japan Yaskawa Servo System | Working area | 600x900x200mm |
| Spindle speed | 0-24000RPM | Table structure | Iron Cast Framer |
| Guide rail | Taiwan Hiwin Square Guide Rail |
