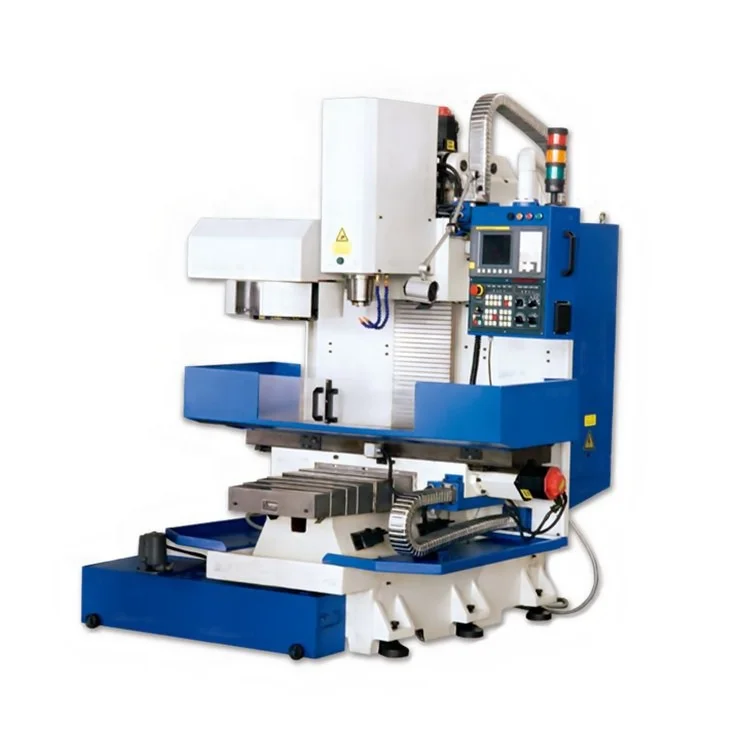

Easy to Operate Metal Vertical CNC Milling Machine
Easy to Operate Metal Vertical CNC Milling Machine
| type | VERTICAL | number of axes | 3 |
| voltage | 380V | table travel (x) (mm) | 800 |
| table travel (y) (mm) | 450 | table travel (z) (mm) | 480 |
| positioning accuracy | ±0.015 | repeatability (x/y/z) (mm) | ±0.008 |
| spindle taper | BT40 | cnc control system | Siemens |
| machining capacity | Heavy Duty | no. of spindles | Single |
| machinery test report | Provided | video outgoing-inspection | Provided |
| key selling points | Competitive Price | spindle motor power(kw) | 5.5 |
| max. table load(kg) | 400 kg(881.85lb) | range of spindle speed | 40 - 6000 |
| dimension(l*w*h) | 2250x2280x2450 | weight | 2600 |
| Table size(LxW/mm) | 1370x300 | Table loading capacity(kg) | 400 |
| T-slots(W/mmxNo) | 16x3 | X-axis (mm) | 800 |
| Y-axis (mm) | 450 | Z-axis (mm) | 480 |
| (X,Y,Z)Max.move speed(mm/min) | 1000 | (X,Y,Z)Max.feed speed(mm/min) | 4000 |
| Spindle speed (rpm/min) | RANGE:40-6000 | Spindle nose | BT40 |
| After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service | Local Service Location | Egypt, Canada, Algeria |
| Certification | CE&ISO |
