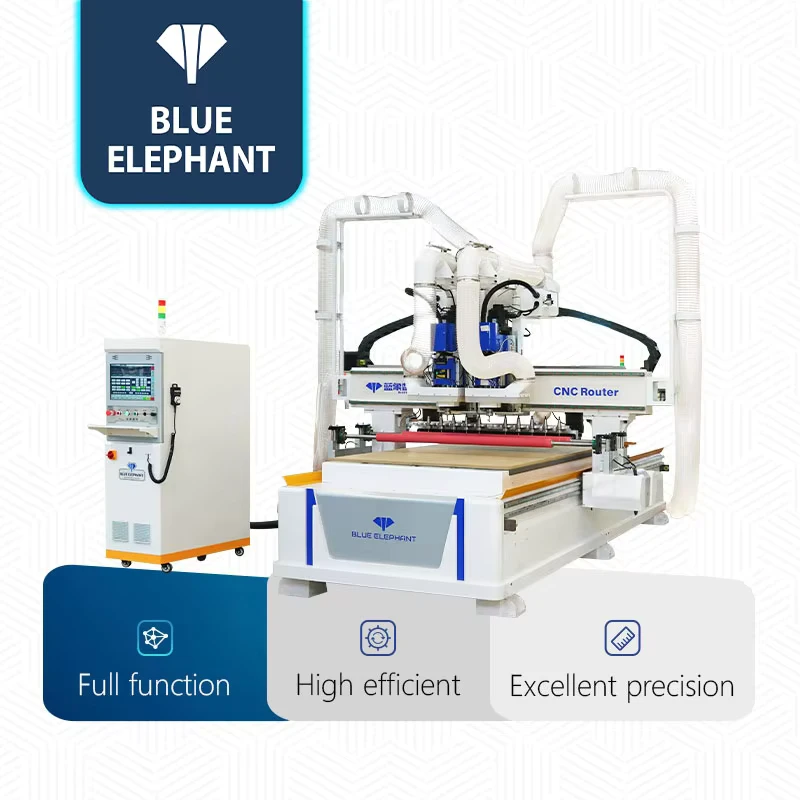

Double Heads EK2 1328 Linear ATC Nesting CNC Router Kitchen Cabinet Door Maker for Modular Furniture

Double Heads EK2 1328 Linear ATC Nesting CNC Router Kitchen Cabinet Door Maker for Modular Furniture
  • Double Heads EK2 1328 Linear ATC Nesting CNC Router Kitchen Cabinet Door Maker for Modular Furniture

    • Double Heads EK2 1328 Linear ATC Nesting CNC Router Kitchen Cabinet Door Maker for Modular Furniture

    Request a Quote
    number of axes3voltage380 V, 200 V
    machine typeNesting CNC RouterNo. of SpindlesATC
    key selling pointsAutomaticAccessory TypeDust collection
    core componentsMotor, Pump, PLCcnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    weight (kg)2500range of spindle speed(r.p.m)0 - 24000
    positioning accuracy (mm)0.03travel (x axis)(mm)1300
    travel (y axis)(mm)2800repeatability (x/y/z) (mm)0.03
    Spindle Motor Power (kw)9dimension(l*w*h)1300*2500*200mm(51.18*98.43*7.87in)
    Product nameCNC Nesting MachineWorking area(X-Y-Z)1300*2800*200mm
    Spindle9kw JST air-cooling automatic tool change spindle*2, 24000r/minControl systemDelta NC50E-WE dual channel and dual head, CAM software
    Motor and driving systemDelta 850W bus absolute valueAfter-sales Service ProvidedService Machinery Overseas
    ApplicationKitchen Cabinet Doors Furnitures MakingFunctionEngraving Carving Milling Cutting
    Working voltage380V/3P/50HZ
