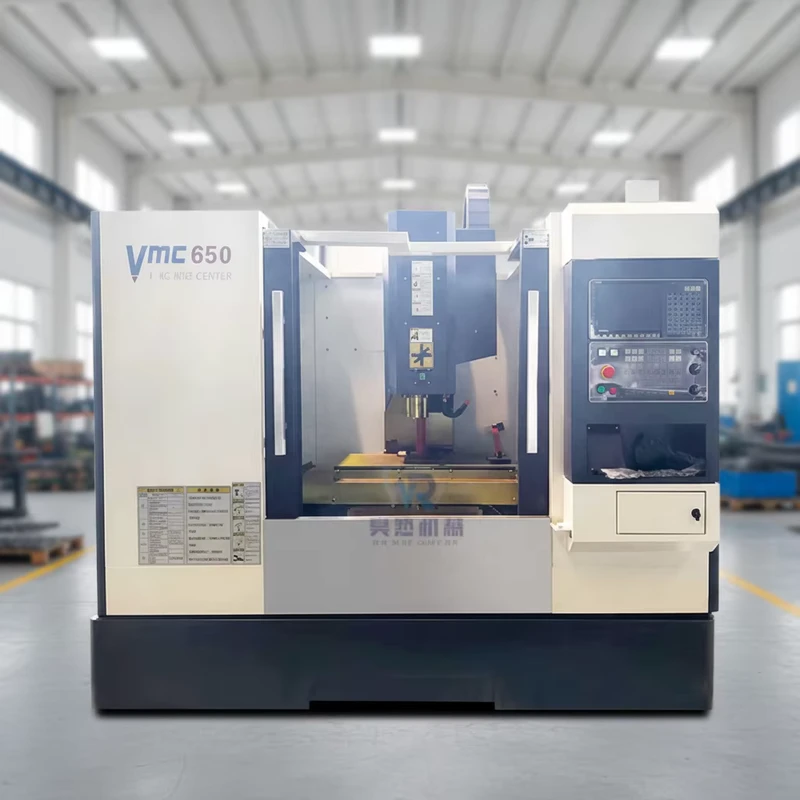

CNC Vertical Machine Center VMC650 3 Axis CNC Milling Machine
CNC Vertical Machine Center VMC650 3 Axis CNC Milling Machine
| type | VERTICAL | table travel (x) (mm) | 650 |
| table travel (y) (mm) | 400 | table travel (z) (mm) | 550 |
| repeatability (x/y/z) (mm) | ±0.005 | positioning accuracy | ±0.01 |
| spindle taper | BT40 | no. of spindles | Single |
| tool magazine capacity | 16, 24, Other | cnc control system | GSK |
| machining capacity | Heavy Duty | voltage | 380V 50HZ /220V 60 HZ |
| table size | 900*400 | machinery test report | Provided |
| video outgoing-inspection | Provided | min. time of tool change(s) | 6 |
| key selling points | High-Accuracy | weight (t) | 3.8 |
| max. table load(kg) | 400 | dimension(l*w*h) | 2350*2150*2250mm(92.52*84.65*88.58in) |
| range of spindle speed | 1 - 8000 r.p.m | rapid feed speed | 1 - 24000 mm/min(0.04-944.88in/min) |
| Model | Vmc650 | Table size (mm) | 650*400 |
| Max. allowable load (Kg) | 400 | X-axis stroke (mm) | 650 |
| Y-axis travel (mm) | 400 | Z-axis travel (mm) | 550 |
| T-slot | 5-18-108 | spindle end face to work table (mm) | BT40-140 |
| X/Y/Z rapid movement (m/min) | 48/48/48 | Spindle speed (r/min) | 8000 |
