Professional manufacturer of woodworking machinery

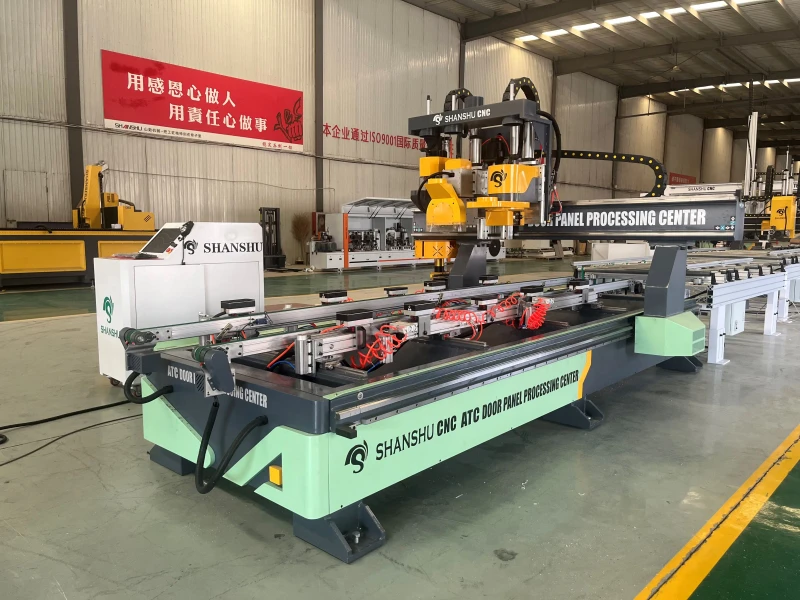

CNC Router with Automatic Tool Changer Wooden Door Lock Hole Hinge Slot Milling Mortising Machine
CNC Router with Automatic Tool Changer Wooden Door Lock Hole Hinge Slot Milling Mortising Machine
| number of axes | 3 | voltage | 380 V, 110 V, 200 V |
| machine type | CNC Router | No. of Spindles | Single |
| key selling points | Multifunctional | Accessory Type | Dust collection, Scanner |
| core components | PLC | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| weight (kg) | 2000 | range of spindle speed(r.p.m) | 0 - 24000 |
| positioning accuracy (mm) | 0.01 | travel (x axis)(mm) | 1200 |
| travel (y axis)(mm) | 2800 | repeatability (x/y/z) (mm) | 0.01 |
| Spindle Motor Power (kw) | 12 | dimension(l*w*h) | 4.2*2.2*1.6m(13.78*7.22*5.25ft) |
| Product name | ATC CNC Router Machine | Application | Furniture Industry |
| Keywords | ATC Woodworking Cnc Router | Control system | Syntec |
| Function | Woodworking Door Lock Groove Hinge Hole Processing Machine | Spindle | Air Cooling Spindle |
| Working area | 1200*2800 | Name | Automatic Tool Changer CNC Router |
| Usage | Door Lock Hole Drilling Hinge Slot Mortising Machine |
