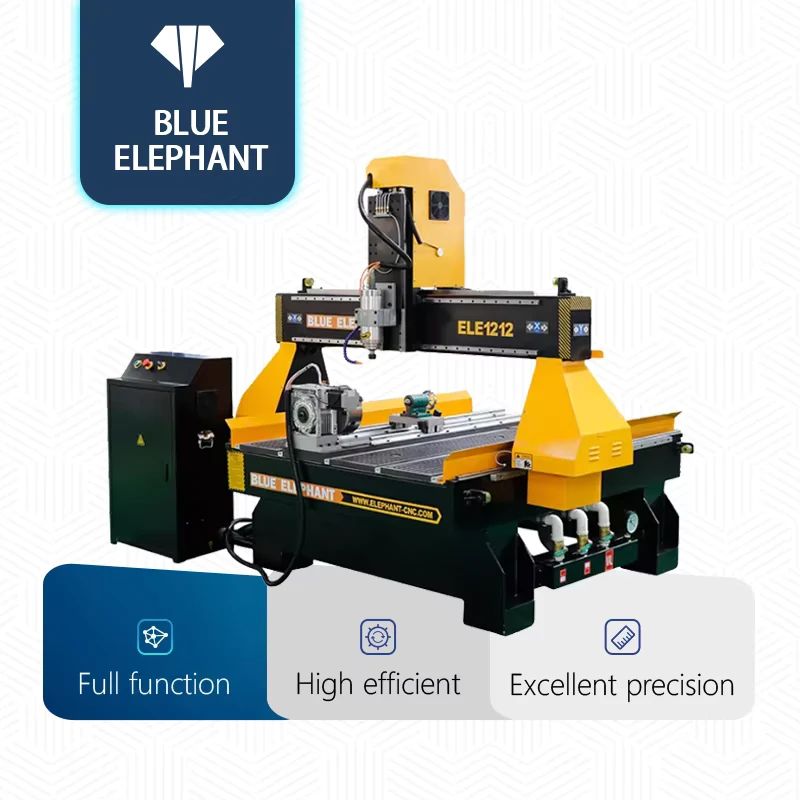

CNC Router 1212 1325 4 Axis CNC 3D Wood Milling Carving Machine with Rotating Device for PVC MDF Acrylic

CNC Router 1212 1325 4 Axis CNC 3D Wood Milling Carving Machine with Rotating Device for PVC MDF Acrylic
  • CNC Router 1212 1325 4 Axis CNC 3D Wood Milling Carving Machine with Rotating Device for PVC MDF Acrylic

    • CNC Router 1212 1325 4 Axis CNC 3D Wood Milling Carving Machine with Rotating Device for PVC MDF Acrylic

    Request a Quote
    Working Table Size(mm)1200×1200number of axes4
    voltage220V 50Hz 1Pmachine typeCNC Router
    No. of SpindlesSinglekey selling pointsEasy To Operate
    core componentsMotorcnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    Power (kW)5.5weight (kg)1000
    range of spindle speed(r.p.m)0 - 24000 rpmpositioning accuracy (mm)0.03
    travel (x axis)(mm)1200travel (y axis)(mm)1200
    repeatability (x/y/z) (mm)0.03Spindle Motor Power (kw)3
    dimension(l*w*h)1200*1200*160mm(47.24*47.24*6.30in)Product nameCNC Wood Working Machine
    ApplicationKitchen Cabinet Doors Furnitures MakingWorking area1200*1200*160mm(optional)
    SpindleChangsheng water cooling spindleControl systemMach3
    Motor and driverStepper Motor 450 and LeadshineM 542 driverCooling systemWater mist cooling sprayer
    InverterFuling InverterTable structureAluminum T-slot table
