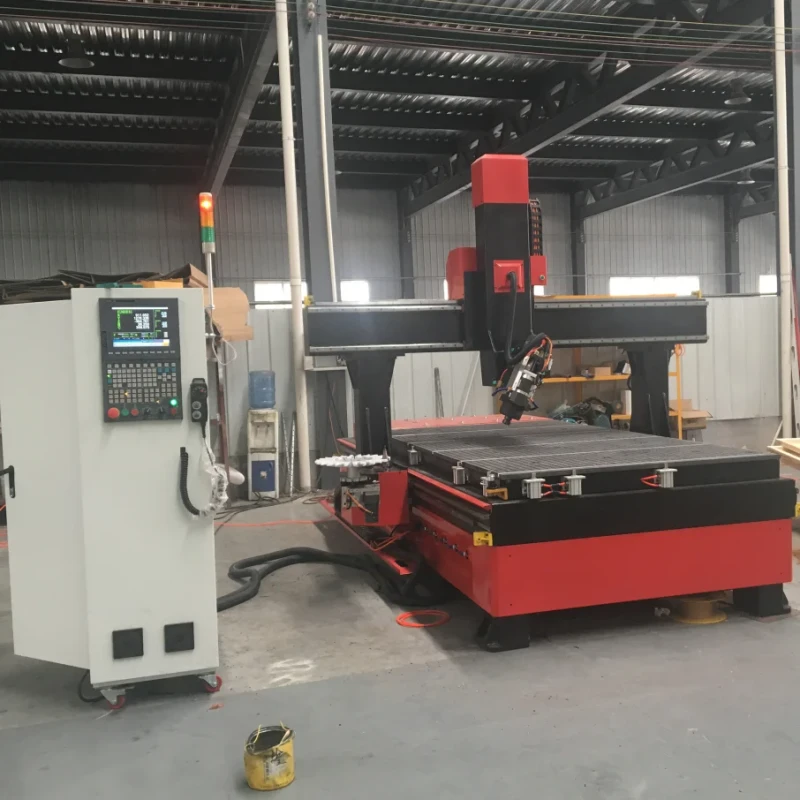

CNC Nesting Center with Rotary Head 12 tool Changer and 9/12kW Engraving Power

CNC Nesting Center with Rotary Head 12 tool Changer and 9/12kW Engraving Power
  • CNC Nesting Center with Rotary Head 12 tool Changer and 9/12kW Engraving Power

    • CNC Nesting Center with Rotary Head 12 tool Changer and 9/12kW Engraving Power

    Request a Quote
    number of axes3voltage380V
    machine typeCNC RouterNo. of SpindlesSingle
    key selling pointsHigh-Accuracycore componentsBearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)3000
    range of spindle speed(r.p.m)24000 - 25000 rpmpositioning accuracy (mm)0.01
    travel (x axis)(mm)1300travel (y axis)(mm)2500
    repeatability (x/y/z) (mm)0.01Spindle Motor Power (kw)9
    Compatible softwareAIphacam door software Yunxi Yimu Haixun 1010 etc.Engraving instructionsStandard G code, u00, mmg, plt
    Software operating environmentWIN7 64 bitX, Y, structureXY-axis high-precision racks
    Z structureZ-axis imported ball screw is Taiwan TPI brandControl SystemTaiwan syntec system
    Spindle motor9kw air-cooled motor Changzhou HQD/CCTool Magazine12 tools change magazine
    Input voltageAC380V/50HZDrive motorXYZ three-axis adopts Leadshine motor and supporting driver.
