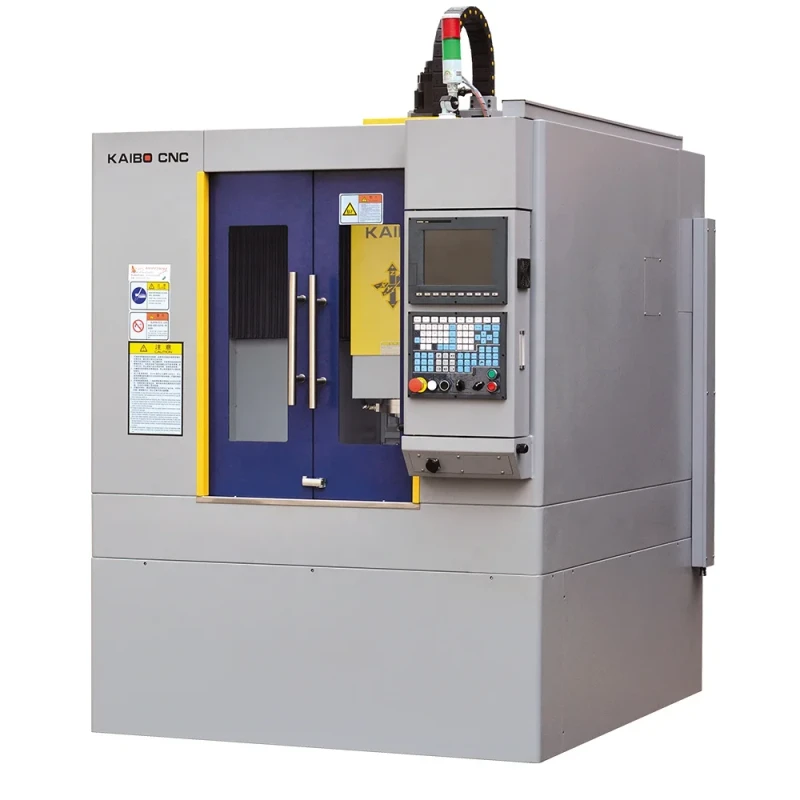

Cnc Machining Center Wet and Dry Cnc Milling Machine for Graphite DC6060G
Cnc Machining Center Wet and Dry Cnc Milling Machine for Graphite DC6060G
| type | Gantry | number of axes | 3 |
| voltage | 380V | table travel (x) (mm) | 600 |
| table travel (y) (mm) | 600 | table travel (z) (mm) | 360 |
| positioning accuracy | ±0.01 | repeatability (x/y/z) (mm) | ±0.005 |
| spindle taper | ER20 | cnc control system | Syntec/Fanuc/Siemens/Mitsubishi |
| machining capacity | Heavy Duty | no. of spindles | Single |
| machinery test report | Provided | video outgoing-inspection | Provided |
| key selling points | High-Accuracy | spindle motor power(kw) | 5.5 |
| max. table load(kg) | 300 kg(661.39lb) | range of spindle speed | 100 - 24000 |
| dimension(l*w*h) | 2030*1830*2430mm(79.92*72.05*95.67in) | weight | 4200 |
| Product name | CNC Graphite machine | Machine Type | Double column |
| Function | Graphite product milling | Application | Electrode milling |
| Processing | Graphite milling | Name | CNC milling machine for graphite |
| Product type | Gantry type milling | Machine name | CNC milling machine for electrode |
| Material | Copper | After-sales Service Provided | Online Service |
