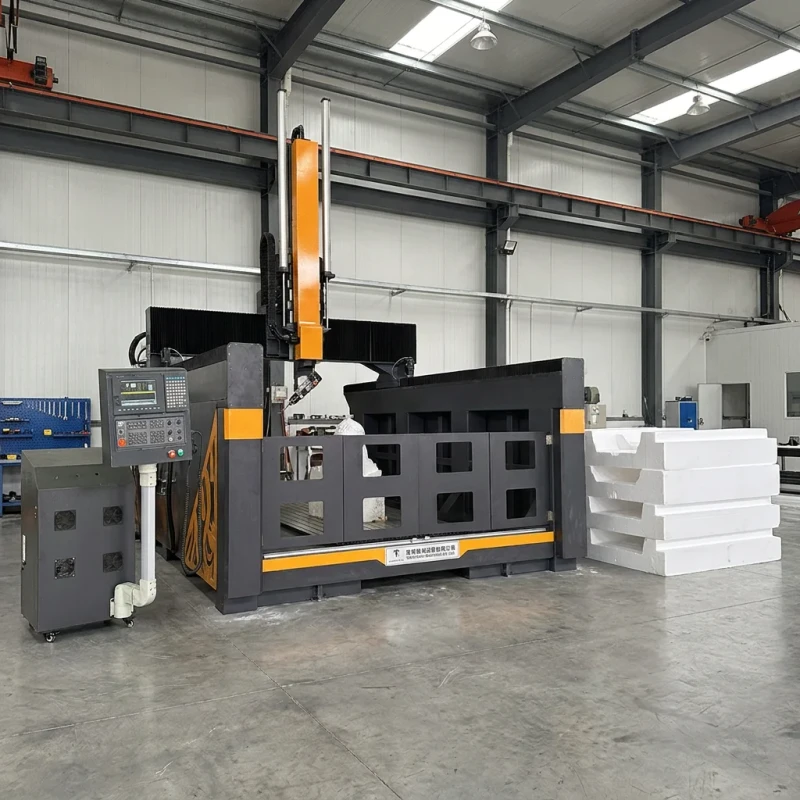

CNC 2030 5A CNC Router 3D Foam Wood Carving Machine with ATC Spindle Swings 180 Degrees YASKAWA Motor

CNC 2030 5A CNC Router 3D Foam Wood Carving Machine with ATC Spindle Swings 180 Degrees YASKAWA Motor
  • CNC 2030 5A CNC Router 3D Foam Wood Carving Machine with ATC Spindle Swings 180 Degrees YASKAWA Motor

    • CNC 2030 5A CNC Router 3D Foam Wood Carving Machine with ATC Spindle Swings 180 Degrees YASKAWA Motor

    Request a Quote
    number of axes5voltageAC380V/50/60Hz,3PH
    machine typeCNC RouterNo. of SpindlesSingle
    key selling pointsMultifunctionalcore componentsBearing, Motor, Gear, Gearbox
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)3000
    range of spindle speed(r.p.m)0 - 24000 rpmpositioning accuracy (mm)0.02
    travel (x axis)(mm)2000travel (y axis)(mm)3000
    repeatability (x/y/z) (mm)0.02Spindle Motor Power (kw)9
    dimension(l*w*h)4200*3240*2650mm(165.35*127.56*104.33in)Working area2000x3000x900mm
    SpindleHiteco 5axis headInverterDELTA inverter
    Control systemSyntec Control SystemX, Y TransmissionHelical rack gears&pinion
    Z transmission3210 TBI ball screwMotorYASKAWA servo motor
    DriverYASKAWA servo driverReducerJapanese Shimpo
    Namewooden mold machine
