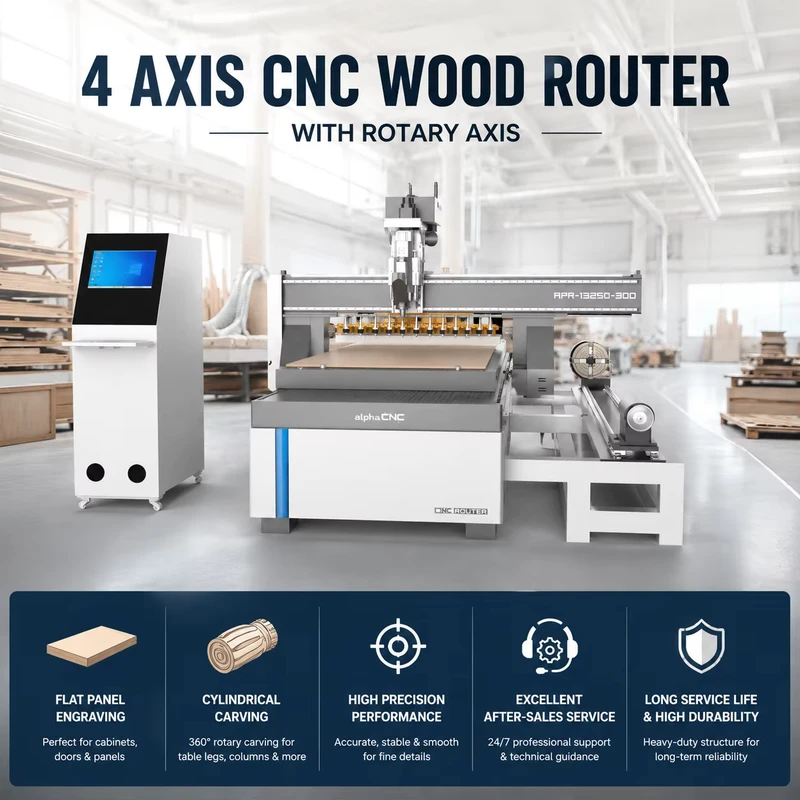

CNC 1325 4 Axis Cnc Router with Side Rotary 3D 4D Wood Foam Sculpture Carving Machine for Making Roman Columns Cabinet

CNC 1325 4 Axis Cnc Router with Side Rotary 3D 4D Wood Foam Sculpture Carving Machine for Making Roman Columns Cabinet
  • CNC 1325 4 Axis Cnc Router with Side Rotary 3D 4D Wood Foam Sculpture Carving Machine for Making Roman Columns Cabinet

    • CNC 1325 4 Axis Cnc Router with Side Rotary 3D 4D Wood Foam Sculpture Carving Machine for Making Roman Columns Cabinet

    Request a Quote
    number of axes4voltage220V/380V
    machine typeNesting CNC RouterNo. of SpindlesATC
    key selling pointsEco-FriendlyAccessory TypeDust collection, Scanner
    core componentsMotor, Bearing, Pump, Engine, Gearboxcnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    weight (kg)2000range of spindle speed(r.p.m)1 - 24000
    positioning accuracy (mm)0.1travel (x axis)(mm)1300
    travel (y axis)(mm)2500repeatability (x/y/z) (mm)0.03
    Spindle Motor Power (kw)9dimension(l*w*h)1300*2500*1800
    Spindle9kw ATC air cooling spindleControl systemTaiwan SYNTEC/LNC controller
    Inverter11kw Delta/Best/FulingTable structureVacuum work table
    TransmissionX,Y axis: Taiwan helical rack Z axis: Taiwan TBI ball screwMotor and driving systemservo motor drive+Japan Shimpo reducer
    Guide railTaiwan square railMachine Travel Speed80m/min
    ApplicationMDF/ Wood /Acrylic / Soft metalKeywordsATC CNC router machine for panel furniture production
