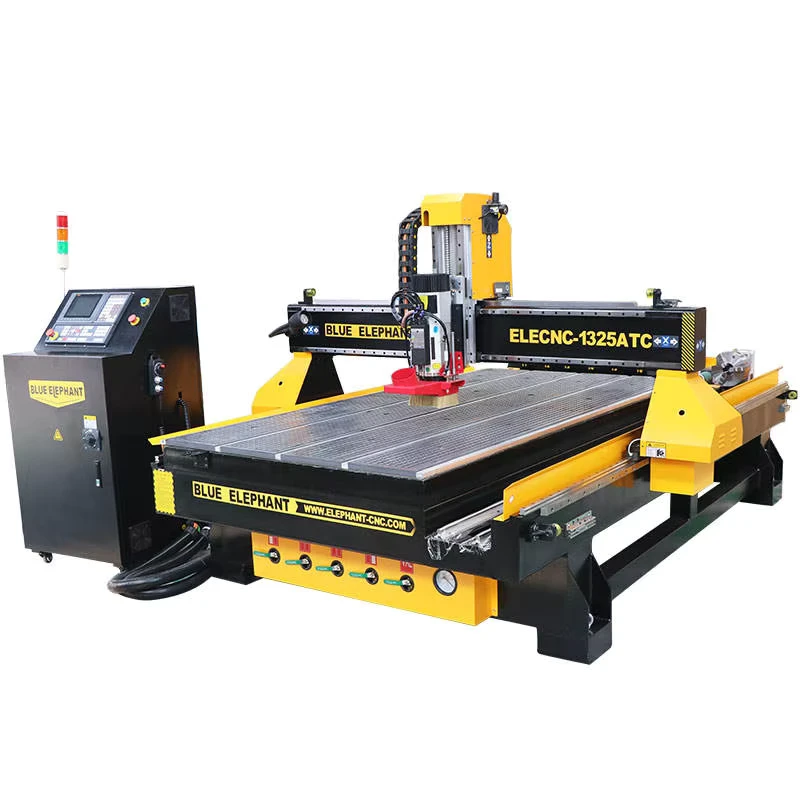

Carousel 1325 1530 5x10 4*8 ATC Wood MDF Plywoods Carving Cnc Machine CNC Router with Rotary Device for Columns & Chair Legs

Carousel 1325 1530 5x10 4*8 ATC Wood MDF Plywoods Carving Cnc Machine CNC Router with Rotary Device for Columns & Chair Legs
  • Carousel 1325 1530 5x10 4*8 ATC Wood MDF Plywoods Carving Cnc Machine CNC Router with Rotary Device for Columns & Chair Legs

    • Carousel 1325 1530 5x10 4*8 ATC Wood MDF Plywoods Carving Cnc Machine CNC Router with Rotary Device for Columns & Chair Legs

    Request a Quote
    number of axes4voltage380v
    machine typeCNC RouterNo. of SpindlesATC
    key selling pointsAutomaticcore componentsMotor
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)3000
    range of spindle speed(r.p.m)0 - 24000 rpmpositioning accuracy (mm)0.03
    travel (x axis)(mm)1300travel (y axis)(mm)2500
    repeatability (x/y/z) (mm)0.03Spindle Motor Power (kw)11
    dimension(l*w*h)2100x3000x200mm(82.68x118.11x7.87in)ModelELECNC1325 ATC
    X,Y axis travel1500*3000mm, option: 1300x2500mmZ axis travel200mm, option: 300mm, 400mm, 500mm, 600mm, etc.
    Spindle type9kw ATC air cooling spindle, ISO30, ER32Inverter type11kw Fuling inverter
    ReducerJapan SHIMPO reducerControl systemTaiwan LNC controller, option: Ncstudio, Syntec
    Machine structureHeavy duty body with quenching treatmentWork tableAluminum T-slot & vacuum work table
    Positioning cylinder7 pieces (X3,Y4)
