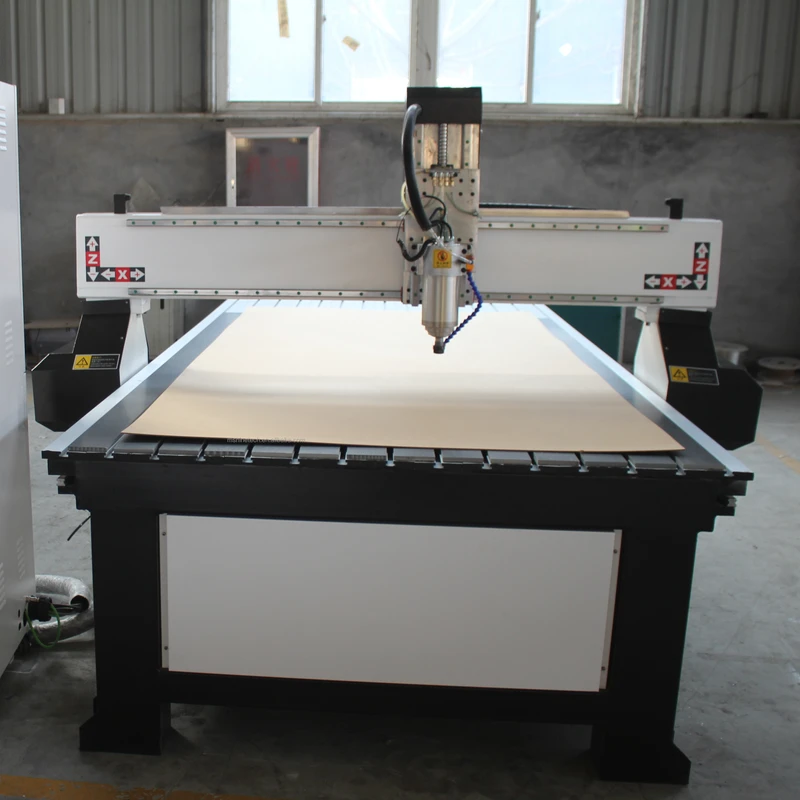

Brand New 1325 3d Woodworking CNC Router Machine With Rotary Device Wood Engraving Machine for Sale

Brand New 1325 3d Woodworking CNC Router Machine With Rotary Device Wood Engraving Machine for Sale
  • Brand New 1325 3d Woodworking CNC Router Machine With Rotary Device Wood Engraving Machine for Sale

    • Brand New 1325 3d Woodworking CNC Router Machine With Rotary Device Wood Engraving Machine for Sale

    Request a Quote
    number of axes2voltage380 V, 220V
    machine typeCNC RouterNo. of SpindlesSingle
    key selling pointsEasy To OperateAccessory TypeDust collection
    core componentsBearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearboxcnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    weight (kg)1200range of spindle speed(r.p.m)1 - 18000 rpm
    positioning accuracy (mm)0.02travel (x axis)(mm)1300
    travel (y axis)(mm)2500repeatability (x/y/z) (mm)0.02
    Spindle Motor Power (kw)3.5KW(4.69hp)dimension(l*w*h)3050*2030*2000mm(120.08*79.92*78.74in)
    Product name3 Axis / 4 Axis Wood Cnc RouterSpindleChina HQD/GDZ 3.5KW Air Cooling Spindle
    Control systemNC Studio / MACH3 / DSP A11E / DSP A18 control systemMotorLeadshine Stepper Motor
    Rotary Axis80-400MM diameter 3D rotary axis, length 2500MMTransmissionTaiwan HIWIN 25 Guide Rails, YCC 1.5M rack
    PositioningPositioning blockInverterChina BEST/Fuling Inverter
    Table SurfaceAluminum T-SlotsSpindle speed0-24000RPM
