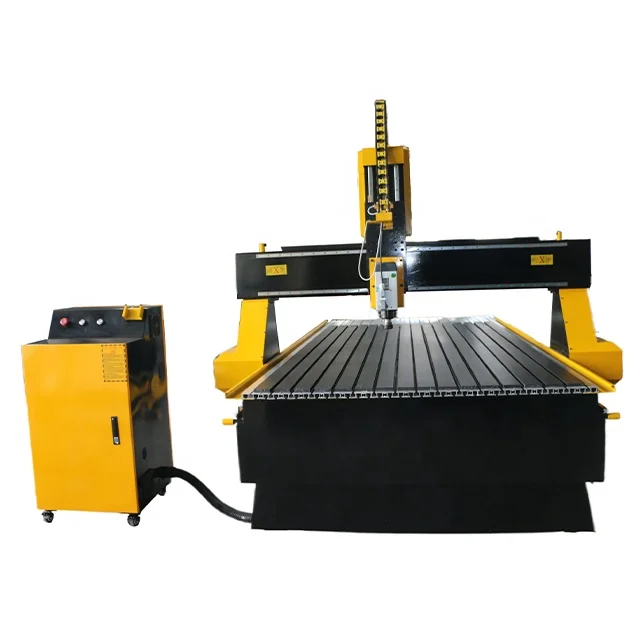

Big Manufacture Direct Sale 1325 Onefinity Signkey Light Frame Cnc Router With Big Power Spindle
Big Manufacture Direct Sale 1325 Onefinity Signkey Light Frame Cnc Router With Big Power Spindle
| Working Table Size(mm) | 1300×2500 | number of axes | 3 |
| voltage | 380V | machine type | CNC Router |
| No. of Spindles | Single | key selling points | Easy To Operate |
| core components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Other | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| weight (kg) | 1300 | range of spindle speed(r.p.m) | 0 - 24000 rpm |
| positioning accuracy (mm) | 0.05 mm(0in) | travel (x axis)(mm) | 1300 mm(51.18in) |
| travel (y axis)(mm) | 2500 mm(98.43in) | repeatability (x/y/z) (mm) | 0.05 mm(0in) |
| dimension(l*w*h) | 3200*2300*2000mm(125.98*90.55*78.74in) | Product name | onefinity cnc router |
| Spindle | 3/4.5/5.5kw/6kw Spindle | Transmission | Helical Rack Pinion |
| Control system | Nc-studio/Mach3/DSP Control System | Working area | 1300x2500mm |
| Inverter | Fuling Inverter | Motor | Stepper Motor |
| Spindle speed | 0-24000rpm/min | Guide rail | Taiwan HIWIN Square Linear Rail |
| Software | Ucancam / ArtCam/TYPE3/UG | Condition | New |
| Warranty of core components | 1 Year |
