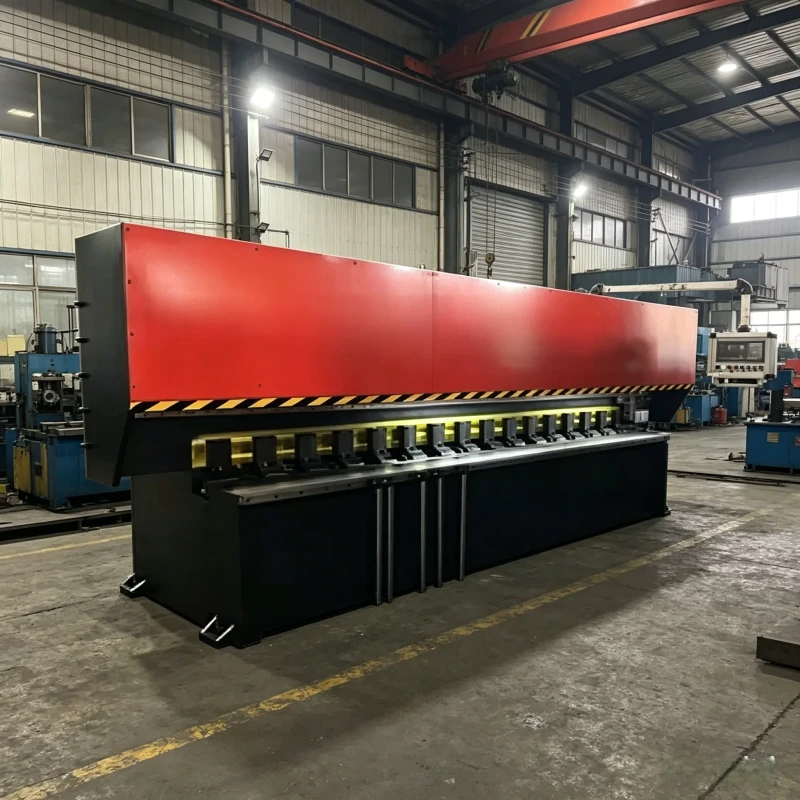

Automatic V Grooving Machine for Metal Sheets

Automatic V Grooving Machine for Metal Sheets
  • Automatic V Grooving Machine for Metal Sheets

    • Automatic V Grooving Machine for Metal Sheets

    Request a Quote
    voltage220v 380vpower (kw)5
    machinery test reportProvidedvideo outgoing-inspectionProvided
    key selling pointsCNC V Grooving Machinecore componentsPLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump, V groover
    weight (kg)10000dimension(l*w*h)5500x3000x2000MM(216.54x118.11x78.74in)
    Metal Length *Width1500x4000mmMetal thickness the machine can work0.4-6mm
    V cutting speed5M-70M/minBack feeding device moving0.5-20M/min
    CNC operating systemTaiwan HUST brandX Y Z axis Positioning accuracy±0.02mm
    Angular Contact Ball BearingsJapan NSKBall screwTaiwan HIWIN brand
    Electric componentsSchneider brandV cutting blades quantity5 pieces of white steel
