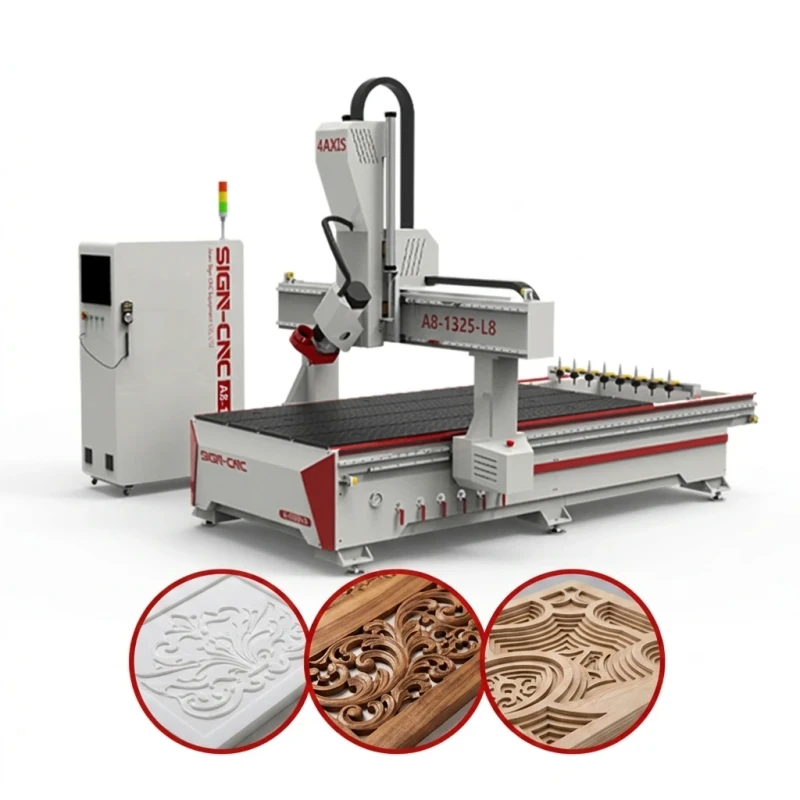

Automatic Tool Change 4 Axis CNC Router 180 Degree Tilting Spindle Machine

Automatic Tool Change 4 Axis CNC Router 180 Degree Tilting Spindle Machine
  • Automatic Tool Change 4 Axis CNC Router 180 Degree Tilting Spindle Machine

    • Automatic Tool Change 4 Axis CNC Router 180 Degree Tilting Spindle Machine

    Request a Quote
    number of axes4voltage380V/50HZ, 220V/50HZ
    machine typeCNC RouterNo. of SpindlesATC
    key selling pointsCompetitive Pricecore componentsBearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)1600
    range of spindle speed(r.p.m)0 - 24000positioning accuracy (mm)0.01
    travel (x axis)(mm)1300travel (y axis)(mm)2500
    repeatability (x/y/z) (mm)0.01dimension(l*w*h)3500*2100*2200mm(137.80*82.68*86.61in)
    Product nameATC CNC Router MachineSpindle9.0KW ATC air-cooled ISO30-ER32 spindle
    Inverterhigh frequency 11KW inverterMotor and driverSyntec 1000W AC servo motor and driver
    ReducerShimpo planetary reducerControl systemSyntec 60WE bus control system (4-axis) with handwheel
    Guide rails and rackHigh precision 25mm square guide rails and helical rackWorking tableVacuum table with T-slot and 7.5KW vacuum pump
    Tool magazineLinear type 8 tools changer magazineAfter-sales Service Provided24 Hours Online Service+Engineers
