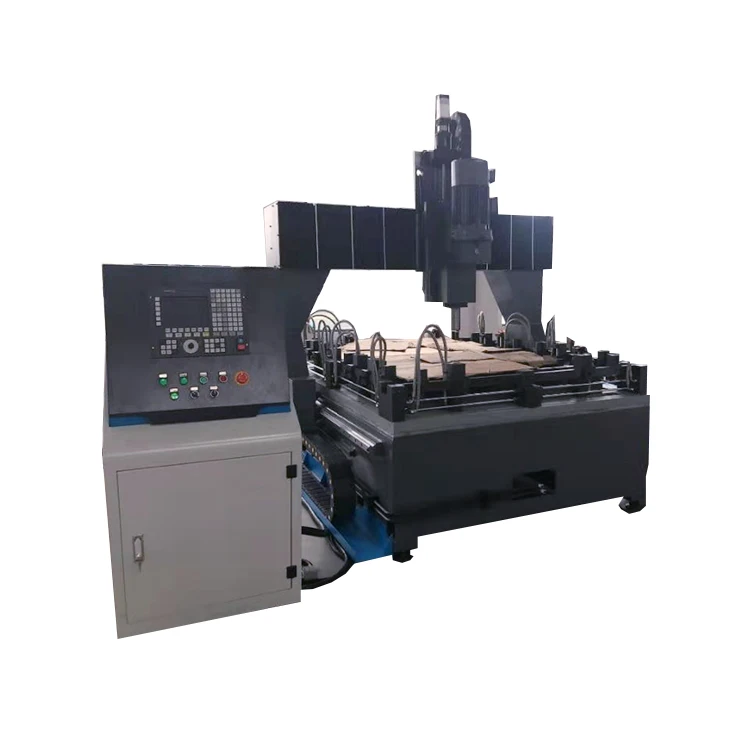

Automatic Numerical Control Vertical Drilling CNC Drilling and Milling Machine for Aluminum Profiles
Automatic Numerical Control Vertical Drilling CNC Drilling and Milling Machine for Aluminum Profiles
| max. drilling dia. (mm) | 50 | type | Pillar Drilling Machine |
| voltage | 380V 50Hz | cnc or not | CNC |
| machinery test report | Provided | core components | Bearing, Pump, Gear, Motor, Gearbox, PLC, Pressure Vessel, Engine, Other |
| video outgoing-inspection | Provided | key selling points | Competitive Price |
| range of spindle speed(r.p.m) | 120 - 560 r.p.m | power (kw) | 5.5 kw(7.38hp) |
| weight (kg) | 5600 KG(12345.89lb) | dimension(l*w*h) | 5200 x 2710 x 2860 mm(204.72x106.69x112.60in) |
| Product name | CNC Drill Machine | Machine size | 5200 x 2720 x 2900mm |
| Weight | 5600kg | Stroke of X axial | 2000mm |
| Stroke of Y axial | 1600mm | Maximum positioning speed | 10000mm/min |
| Certification | CE ISO | After-sale service | Video online support |
