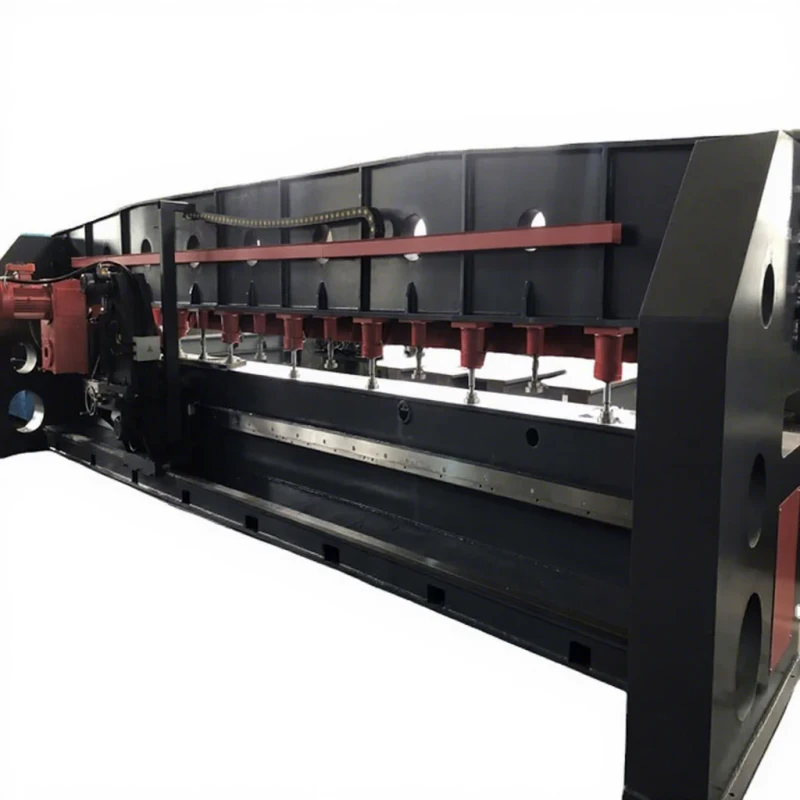

Automatic Horizontal Edge Milling Machine Heavy Duty

Automatic Horizontal Edge Milling Machine Heavy Duty
  • Automatic Horizontal Edge Milling Machine Heavy Duty

    • Automatic Horizontal Edge Milling Machine Heavy Duty

    Request a Quote
    typeHorizontalmachining capacityHeavy Duty
    table travel (x) (mm)6000 mm(236.22in)table travel (y) (mm)100 mm(3.94in)
    table travel (z) (mm)200 mm(7.87in)spindle taperISO40
    voltagestandardmachinery test reportProvided
    video outgoing-inspectionNot Availablekey selling pointsAutomatic
    range of spindle speed(r.p.m)125 - 630 r.p.mweight (kg)8000
    max. table load(kg)5000dimension(l*w*h)standard
    transverse milling speed300/500milling free speed4000
    main shaft rotation speed125-630Product nameMetal Milling Machine
    FunctionMachining MetalHydraulic system pressure≤3.5
    support plateform to the ground distance900feeding motor power(kw)1.1/0.85
    Milling motor power(kw)3oil pump motor power5.5
