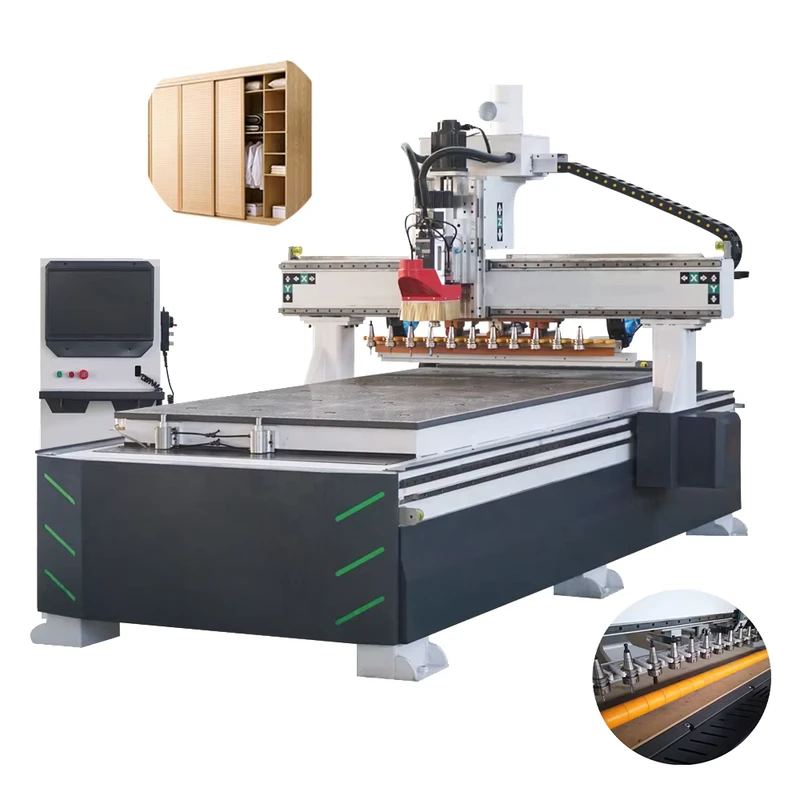

ATC Tool Change Machining Center Woodworking 1325 CNC Wood Router Machine for Cabinets
ATC Tool Change Machining Center Woodworking 1325 CNC Wood Router Machine for Cabinets
| Working Table Size(mm) | 1300×2500 | number of axes | 4 |
| voltage | 380/Customized | machine type | CNC Router |
| No. of Spindles | ATC | key selling points | Easy To Operate |
| core components | Motor | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| weight (kg) | 2000 | range of spindle speed(r.p.m) | 0 - 24000 rpm |
| positioning accuracy (mm) | 0.02 mm(0in) | travel (x axis)(mm) | 1300 mm(51.18in) |
| travel (y axis)(mm) | 2500 mm(98.43in) | repeatability (x/y/z) (mm) | 0.02 mm(0in) |
| Spindle Motor Power (kw) | 9KW(12.07hp) | dimension(l*w*h) | 3500*2300*2000mm(137.80*90.55*78.74in) |
| Product name | Cnc Router Machine | Application | MDF WOOD ACRYLIC ALUMINUM |
| Control system | Taiwan LNC Control System | Table Surface | Unique vacuum adsorption air circuit partition |
| Tool change speed | High Speed Toggle | Maximum working speed | 20000mm/min |
| Maximum idle speed | 80m/min |
