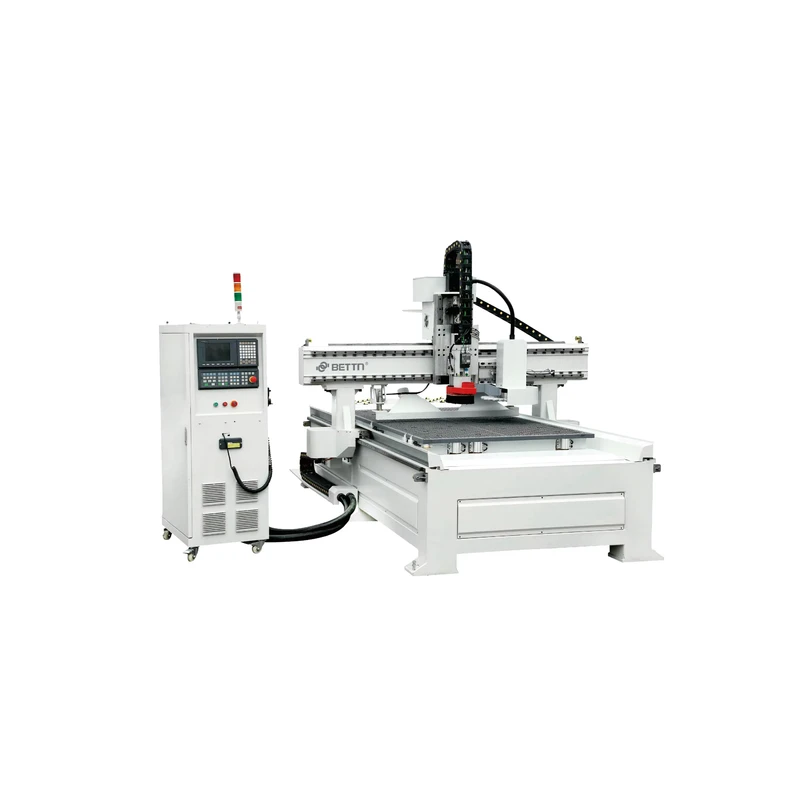

Atc Cnc Router Machine 3d 3 4 Axis Wood Carving Cutting Engraver

Atc Cnc Router Machine 3d 3 4 Axis Wood Carving Cutting Engraver
  • Atc Cnc Router Machine 3d 3 4 Axis Wood Carving Cutting Engraver

    • Atc Cnc Router Machine 3d 3 4 Axis Wood Carving Cutting Engraver

    Request a Quote
    Working Table Size(mm)1300×2500number of axes1
    voltage380Vmachine typeCNC Router
    No. of SpindlesSinglekey selling pointsAutomatic
    core componentsBearing, Motor, Pump, Gear, PLC, Other, Pressure Vessel, Engine, Gearboxcnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    Power (kW)9weight (kg)2000
    range of spindle speed(r.p.m)1 - 24000 rpmpositioning accuracy (mm)0.05 mm(0in)
    travel (x axis)(mm)1300 mm(51.18in)travel (y axis)(mm)2500 mm(98.43in)
    repeatability (x/y/z) (mm)0.05 mm(0in)Spindle Motor Power (kw)9KW(12.07hp)
    dimension(l*w*h)2300*3600*2500mm(90.55*141.73*98.43in)Control system:Mach3 4 axis control system with usb
    Motor and drive:stepper motor 450B and leadshine 860h driveSpindle:9kw water cooling spindle
    Inverter:3.7kw Fuling InverterTable Surface:Vacuum Combined T-slot Table
    Tool magazine:Automatic tool changingWater circulation vacuum pump:3kw Water circulation vacuum pump for option
    Dust collector:3kw double pocket dust collector for option
