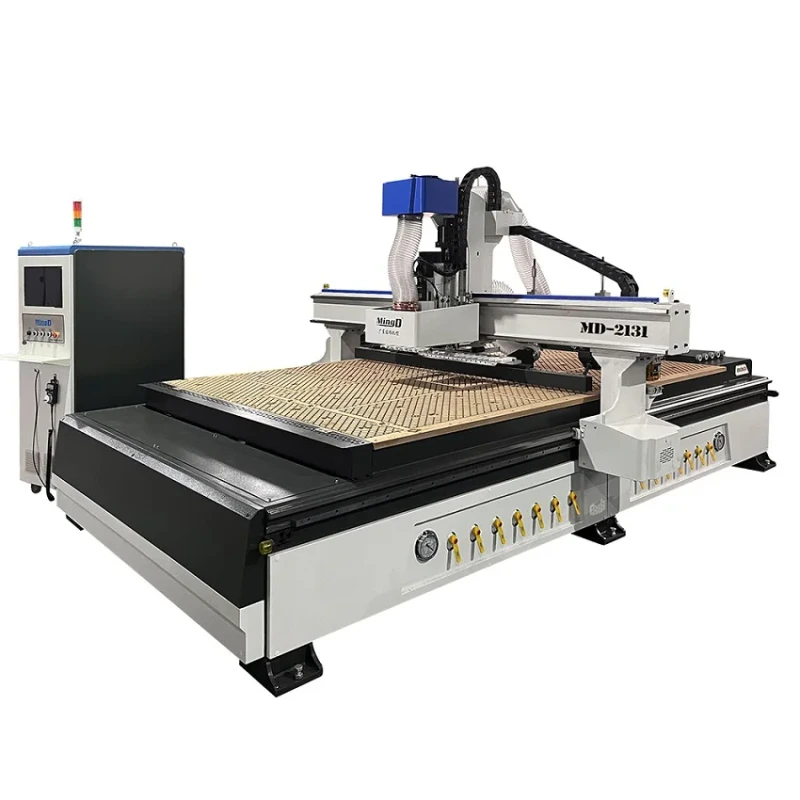

ATC-2131-12 Automatic Change Cutter 3D Engraving Cutting Drilling Slotting CNC Router Machine 12 Auto Knife Changed 2100mm
ATC-2131-12 Automatic Change Cutter 3D Engraving Cutting Drilling Slotting CNC Router Machine 12 Auto Knife Changed 2100mm
| number of axes | 1 | voltage | AC380V/50HZ |
| machine type | CNC Router | No. of Spindles | Single |
| key selling points | Easy To Operate | core components | Motor, Engine, Gearbox, PLC, Pump, Bearing, Gear |
| cnc or not | CNC | video outgoing-inspection | Provided |
| machinery test report | Provided | weight (kg) | 3500 |
| positioning accuracy (mm) | 1 | travel (x axis)(mm) | 2100 |
| travel (y axis)(mm) | 3100 | repeatability (x/y/z) (mm) | 1 |
| Spindle Motor Power (kw) | 9 | dimension(l*w*h) | 4150*3100*2100mm(163.39*122.05*82.68in) |
| Y-axis machining range | 3100mm | Z-axis machining range | 170mm |
| Knife handle diameter | 12.7, 6.35, 12, 10, 6 | Spindle speed | 24000r/min |
| Working air pressure | 0.6-0.8Mpa | X-axis machining range | 2100mm |
| X-axis maximum positioning speed | 70m/min | Y-axis maximum positioning speed | 70m/min |
| Condition | New | Z-axis maximum positioning speed | 20m/min |
