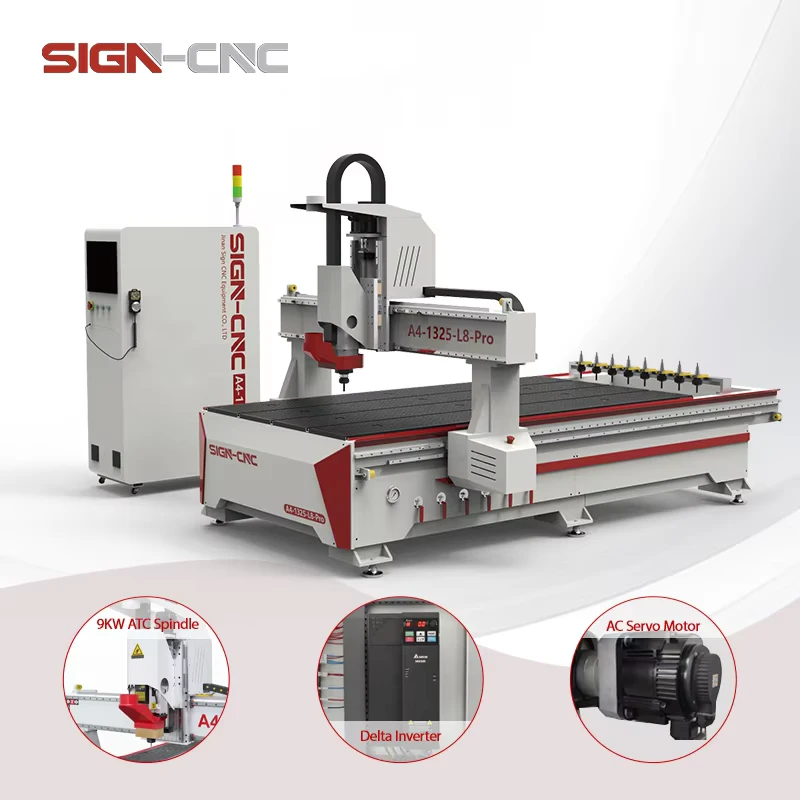

Air cooled Spindle 3 Axis ATC CNC Router Machine Cutting 3D Engraving Machine

Air cooled Spindle 3 Axis ATC CNC Router Machine Cutting 3D Engraving Machine
  • Air cooled Spindle 3 Axis ATC CNC Router Machine Cutting 3D Engraving Machine

    • Air cooled Spindle 3 Axis ATC CNC Router Machine Cutting 3D Engraving Machine

    Request a Quote
    number of axes3voltage380V 50HZ/ 220V 50HZ
    machine typeCNC RouterNo. of SpindlesSingle
    key selling pointsMultifunctionalAccessory TypeDust collection
    core componentsBearing, Motor, Gearbox, Spindlecnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    weight (kg)1600positioning accuracy (mm)0.01
    travel (x axis)(mm)1300travel (y axis)(mm)2500
    repeatability (x/y/z) (mm)0.01Spindle Motor Power (kw)9
    dimension(l*w*h)3400*2100*2000mm(133.86*82.68*78.74in)Spindle9.0KW ATC air-cooled ISO30-ER32 spindle
    InverterDelta 11kw InverterTable surfaceVacuum table with T-slot and 7.5KW vacuum pump
    Motor and driverSyntec 1kw AC servo motor and driverReducerJapanese Shimpo planetary reducer
    Control systemSyntec 60WE bus Control SystemTool magazineLinear type 8 tools changer magazine
    DeviceFrench Schneider electrical devicesFunctionWood Acylic Plywood MDF Engraving
    After-sales Service Provided24 Hours Online Service+Engineers
