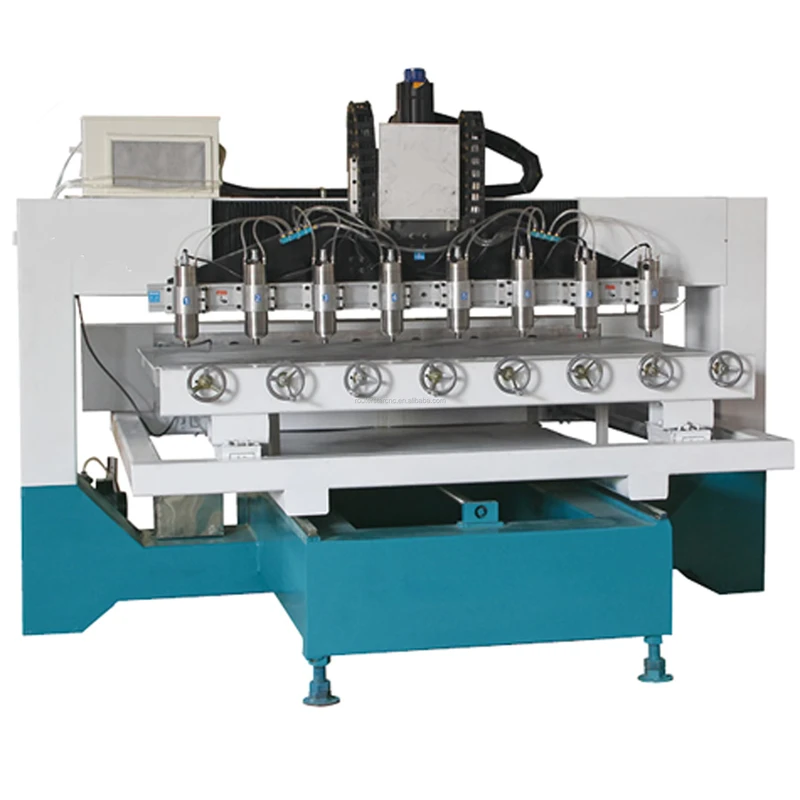

8 Heads 3D 4 Axis Multi Spindles Wood Carving CNC Router with Rotary DSP Control PLC Motor 2.2kW
8 Heads 3D 4 Axis Multi Spindles Wood Carving CNC Router with Rotary DSP Control PLC Motor 2.2kW
| Working Table Size(mm) | 1250×2500 | number of axes | 4 |
| voltage | AC380V/50HZ | machine type | CNC Router |
| No. of Spindles | Multi | key selling points | High Productivity |
| core components | Motor, PLC | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| Power (kW) | 5.5 | weight (kg) | 1300 |
| range of spindle speed(r.p.m) | 1 - 18000 rpm | positioning accuracy (mm) | 0.05 |
| travel (x axis)(mm) | 2500 | travel (y axis)(mm) | 1200 |
| repeatability (x/y/z) (mm) | 0.05 | Spindle Motor Power (kw) | 4.5 |
| dimension(l*w*h) | 2600*2100*2000mm(102.36*82.68*78.74in) | Product name | 8 heads 3d 4 axis multi spindles wood carving cnc router with rotary |
| Application | Engraving | Spindle | 2.2kw Water Cooling Spindle |
| Control system | DSP A18 | Motor | China Absolute servo motor |
| Transmission | Ball Screw | Software | English vertion software for transform G code |
| Working area | max length 1200mm, max diameter 250mm | flat table | as optional |
| software | with english software |
