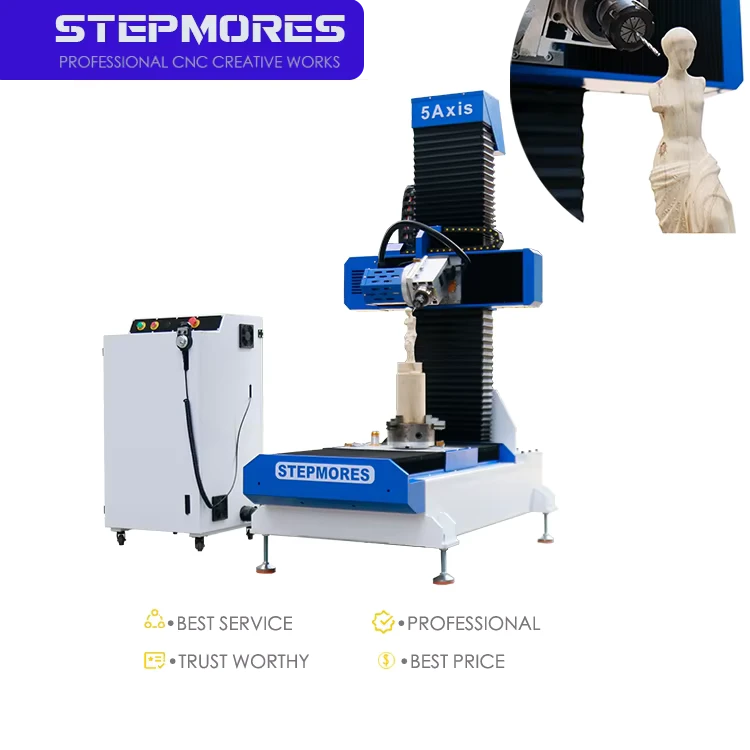

5 Axis Wood Router Wood Statue Carving 3D CNC Router Engraving Machine With Swing Spindle

5 Axis Wood Router Wood Statue Carving 3D CNC Router Engraving Machine With Swing Spindle
  • 5 Axis Wood Router Wood Statue Carving 3D CNC Router Engraving Machine With Swing Spindle

    • 5 Axis Wood Router Wood Statue Carving 3D CNC Router Engraving Machine With Swing Spindle

    Request a Quote
    number of axes5voltageAC 220V, AC380V
    machine typeCNC RouterNo. of SpindlesSingle
    key selling pointsHigh-Accuracycore componentsMotor, PLC, Engine
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)700
    range of spindle speed(r.p.m)1 - 18000 rpmpositioning accuracy (mm)0.01
    travel (x axis)(mm)350travel (y axis)(mm)550
    repeatability (x/y/z) (mm)0.01Spindle Motor Power (kw)4.5
    dimension(l*w*h)1.56*0.96*2.1m(5.12*3.15*6.89ft)X Y Z axis travel distance350x550X1000MM
    Rotary chuck diameter200mm (bigger diameter optional)Max object sizeCylinder / cuboid object 200mm x 750mm
    Guide railLinear Square Guide RailControl system5axis controller with RTCP function
    TransmissionballscrewSoftwareArtcam/Type3/Ucancam
    ApplicationWood Acrylic PVC Engraving CuttingKeywords5 axis Cnc Wood Router
