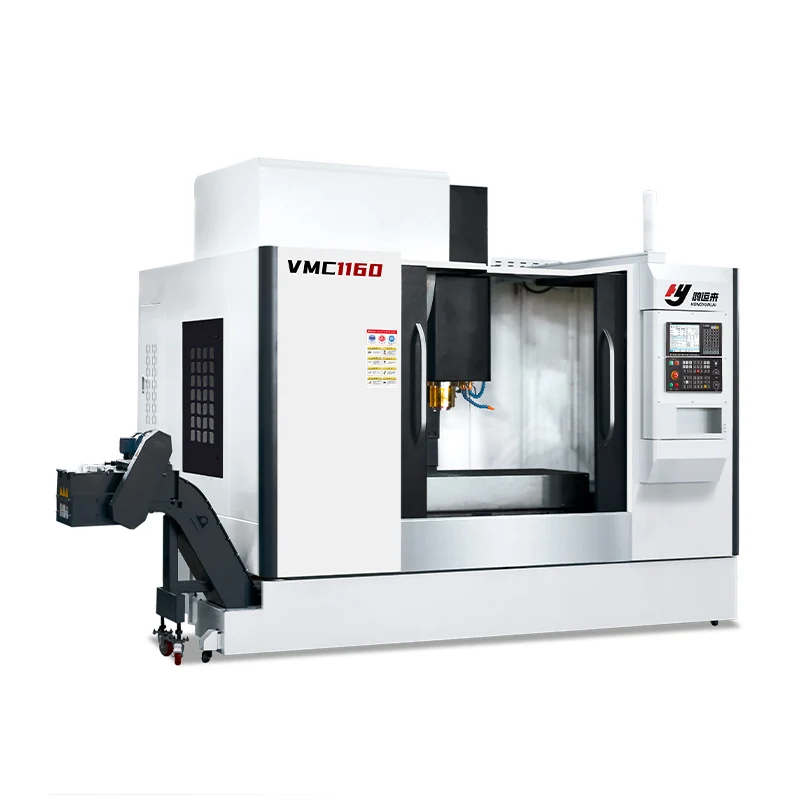

5 Axis CNC Vertical Machining Center 4 Axis CNC Router VMC1160
5 Axis CNC Vertical Machining Center 4 Axis CNC Router VMC1160
| type | VERTICAL | table travel (x) (mm) | 1100 |
| table travel (y) (mm) | 600 | table travel (z) (mm) | 600 |
| repeatability (x/y/z) (mm) | ±0.005 | positioning accuracy | ±0.008 |
| spindle taper | BT40 | no. of spindles | 3 |
| tool magazine capacity | 24 | cnc control system | KND |
| machining capacity | Heavy Duty | voltage | 380 |
| table size | 1200*600 | machinery test report | Provided |
| video outgoing-inspection | Provided | min. time of tool change(s) | 2 |
| key selling points | Automatic | weight (t) | 6.8 |
| max. table load(kg) | 800 | dimension(l*w*h) | 3100*2500*2800 |
| range of spindle speed | 1 - 8000 r.p.m | rapid feed speed | 1 - 10000 |
| Product name | vmc1160 | Condition | New |
| Applicable Industries | Building Material Shops | Showroom Location | None |
| Marketing Type | Hot Product 2019 | Warranty of core components | 1 Year |
| Feed Speed(mm/min) | 1 - 10000 mm/min | Rapid Feed Speed(m/min) | 10000 |
