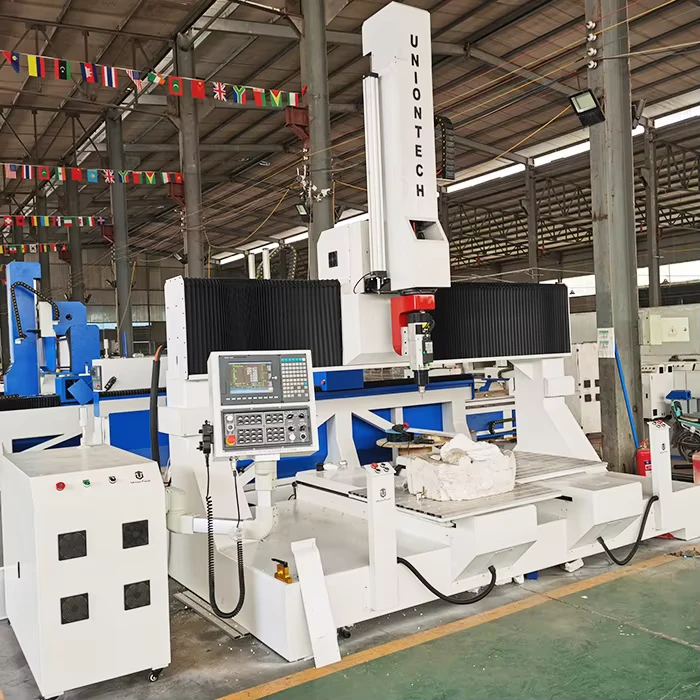

5 Axis CNC Router Machining Center 3D Engraving Machine DSP Mach3 Control Single Spindle Hybrid Servo Motor

5 Axis CNC Router Machining Center 3D Engraving Machine DSP Mach3 Control Single Spindle Hybrid Servo Motor
  • 5 Axis CNC Router Machining Center 3D Engraving Machine DSP Mach3 Control Single Spindle Hybrid Servo Motor

    • 5 Axis CNC Router Machining Center 3D Engraving Machine DSP Mach3 Control Single Spindle Hybrid Servo Motor

    Request a Quote
    number of axes5voltageAC380V/50/60Hz,3PH
    machine typeCNC RouterNo. of SpindlesSingle
    key selling pointsMultifunctionalcore componentsMotor, Other
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)5000
    range of spindle speed(r.p.m)0 - 24000 rpmpositioning accuracy (mm)0.02
    travel (x axis)(mm)1200travel (y axis)(mm)1200
    repeatability (x/y/z) (mm)0.02Spindle Motor Power (kw)9
    dimension(l*w*h)2950*2250*2450mm(116.14*88.58*96.46in)Working area1200*1200*900mm
    SpindleHSD HS300 and ES368InverterDELTA inverter
    Control systemSyntec Control SystemX, Y TransmissionHelical rack gears&pinion
    Z transmission2510 TBI ball screwMotorLeadshine hybrid servo motor
    DriverLeadshine hybrid servo driverReducerJapanese Shimpo
    Name5 axis cnc machine for sale
