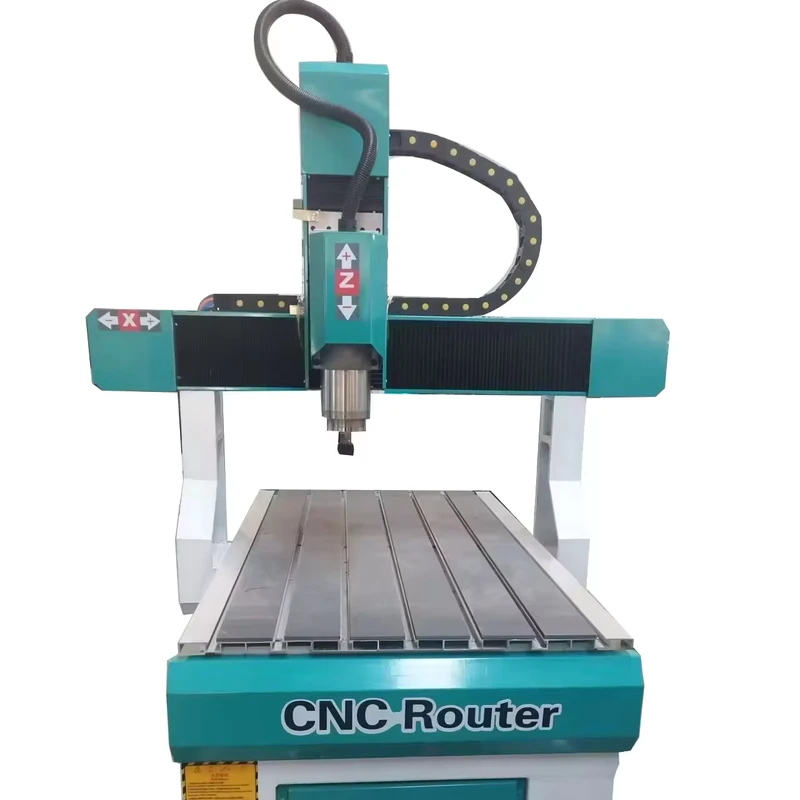

4x8 49 Feet Woodworking Engraving Machine 3D Carving Cutting Wood Acrylic Wood Carving Single Spindle 6090 CNC Router Machine
4x8 49 Feet Woodworking Engraving Machine 3D Carving Cutting Wood Acrylic Wood Carving Single Spindle 6090 CNC Router Machine
| Working Table Size(mm) | 600×900 | number of axes | 3 |
| voltage | AC380V/220V,50HZ | machine type | CNC Router |
| No. of Spindles | Single | key selling points | Easy To Operate |
| core components | Bearing, Motor, Pump, Gear, PLC, Other, Engine, Gearbox | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| Power (kW) | 10 | weight (kg) | 450 |
| range of spindle speed(r.p.m) | 0 - 18000 rpm | positioning accuracy (mm) | 0.01 mm(0in) |
| travel (x axis)(mm) | 600 mm(23.62in) | travel (y axis)(mm) | 900 mm(35.43in) |
| repeatability (x/y/z) (mm) | 0.01 mm(0in) | Spindle Motor Power (kw) | 1.5kw(2.01hp) |
| dimension(l*w*h) | 600*900*170 | Control system | Shanghai Weihong |
| motor | Stepper motor | Spindle | 1.5KW water-cooled spindle motor |
| Frequency changer | High precision special inverter | Machine body | Heavy fuselage |
| Guide rail | Taiwan high precision 20 square linear guide rail | Machine work surface | Aluminum mesa +PVC |
| Lubrication system | Manual oiler | Compatible software | Artcam, type3, CAD, CDR, Jingdiao, Wentai and other software |
| Control cabinet | Machine independent control cabinet |
