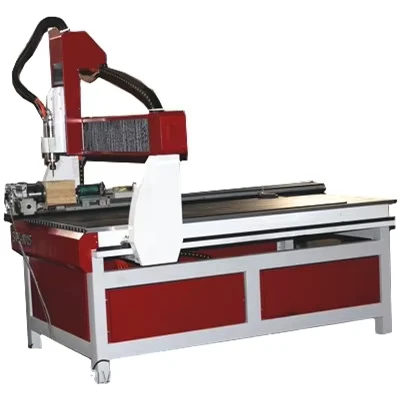

4th Axis Rotary CNC Router 6015 Mach3 DSP Single Motor NC Studio Control 1.5-2.2kW Spindle Wood Carving
4th Axis Rotary CNC Router 6015 Mach3 DSP Single Motor NC Studio Control 1.5-2.2kW Spindle Wood Carving
| number of axes | 4 | voltage | 220V |
| machine type | CNC Router | No. of Spindles | Single |
| key selling points | Easy To Operate | core components | Motor |
| cnc or not | CNC | video outgoing-inspection | Provided |
| machinery test report | Provided | weight (kg) | 600 |
| positioning accuracy (mm) | 0.03 | travel (x axis)(mm) | 600 |
| travel (y axis)(mm) | 1500 | repeatability (x/y/z) (mm) | 0.03 |
| dimension(l*w*h) | 1200*1100*1600mm(47.24*43.31*62.99in) | guide rail | Taiwan Hiwin linear square guide rail |
| transmission | ball screw | spindle | 1.5kw/2.2kw water cooled spindle |
| motor | stepper motor | inverter | Fuling inverter |
| control system | NC studio control card | software | Artcut/Artcam/JD paint/Type3 |
| rotary axis | diameter: 0-100mm | application | for furniture legs, buddha, and stair armrest carving |
| machine type | cnc router rotary 4th axis |
