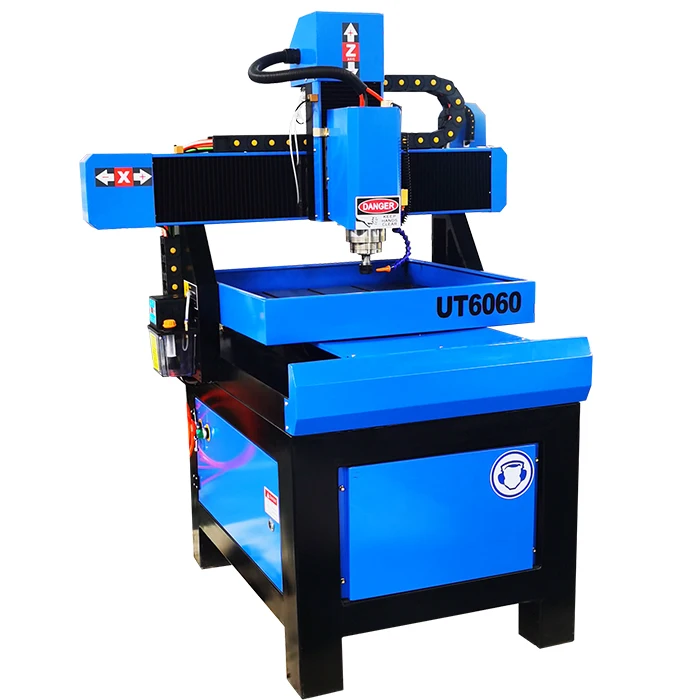

4040 6060 Cast Iron Frame CNC Milling Router Copper Brass Aluminum Mould Metal Engraving Router Machine

4040 6060 Cast Iron Frame CNC Milling Router Copper Brass Aluminum Mould Metal Engraving Router Machine
  • 4040 6060 Cast Iron Frame CNC Milling Router Copper Brass Aluminum Mould Metal Engraving Router Machine

    • 4040 6060 Cast Iron Frame CNC Milling Router Copper Brass Aluminum Mould Metal Engraving Router Machine

    Request a Quote
    number of axes3voltageAC380V/50/60Hz,3PH
    machine typeCNC RouterNo. of SpindlesSingle
    key selling pointsEasy To Operatecore componentsBearing, Motor, Gear, Gearbox
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)300
    range of spindle speed(r.p.m)1 - 24000 rpmpositioning accuracy (mm)0.02
    travel (x axis)(mm)600travel (y axis)(mm)600
    repeatability (x/y/z) (mm)0.02dimension(l*w*h)1100*1640*950mm(43.31*64.57*37.40in)
    After-sales Service ProvidedEngineers available to service machinery overseasWorking area600*600*200mm
    Control systemDSP A11 Control SystemSpindle2.2kw water Cooling Spindle
    Machine structureCast ironX, Y, Z TransmissionTBI ball screw
    Guide railsHIWIN 20 for X, Y, Z axisMotorLeadshine easy servo motor
    DriverLeadshine easy servo driverName6060 Mini Cnc Machine
