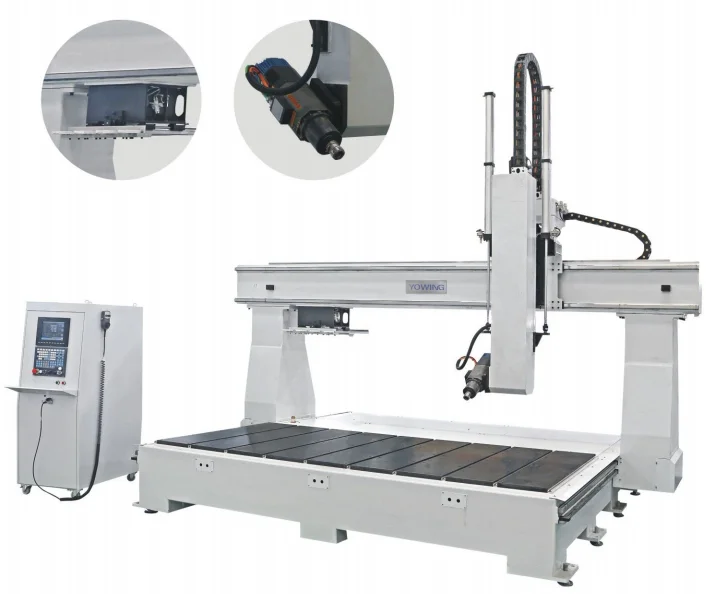

4-axis Wood Mold Gantry Mill CNC Router Foam Resin Moulding Cutting Machine Patterns Machining Center

4-axis Wood Mold Gantry Mill CNC Router Foam Resin Moulding Cutting Machine Patterns Machining Center
  • 4-axis Wood Mold Gantry Mill CNC Router Foam Resin Moulding Cutting Machine Patterns Machining Center

    • 4-axis Wood Mold Gantry Mill CNC Router Foam Resin Moulding Cutting Machine Patterns Machining Center

    Request a Quote
    number of axes4voltageCustomized
    machine typeCNC RouterNo. of SpindlesSingle
    key selling pointsEasy To Operatecore componentsBearing, Motor, Pump, PLC, Gearbox
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)4000
    range of spindle speed(r.p.m)0 - 18000 rpmpositioning accuracy (mm)0.05
    travel (x axis)(mm)1300travel (y axis)(mm)3200
    repeatability (x/y/z) (mm)0.05Spindle Motor Power (kw)7.5 or 9
    dimension(l*w*h)4200mm*2900mm*3800mm(165.35in*114.17in*149.61in)Work table size3200mm*1300mm
    Main Spindle motor7.5kwX,Y,Z Axis Max. move speed40m/min
    X,Y,Z Axis Max. working speed12m/minProcessing thickness250mm
    Max. turning speed15m/minMachine accuracy+-0.02mm
    Repeated positioning accuracy+-0.05mmMotor voltageCustomized
