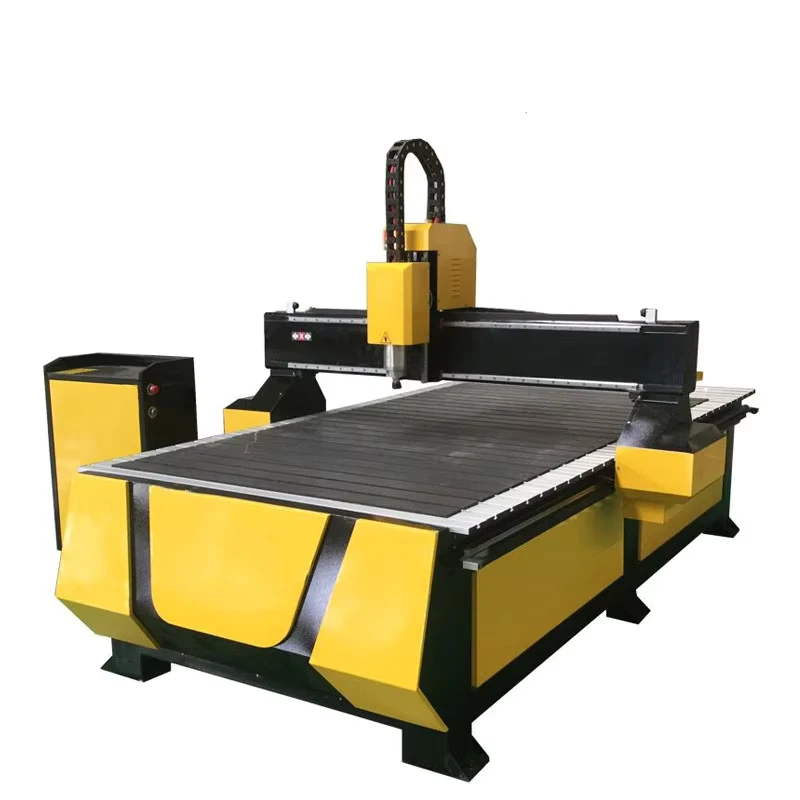

4 Axis CNC Engraving Machine 3D for Wood Furniture Legs

4 Axis CNC Engraving Machine 3D for Wood Furniture Legs
  • 4 Axis CNC Engraving Machine 3D for Wood Furniture Legs

    • 4 Axis CNC Engraving Machine 3D for Wood Furniture Legs

    Request a Quote
    Working Table Size(mm)1300×2500number of axes4
    voltageAC220Vmachine typeCNC Router
    No. of SpindlesSinglekey selling pointsEasy To Operate
    core componentsMotor, Pump, Gear, Pressure Vessel, Engine, Gearboxcnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    Power (kW)6weight (kg)800
    range of spindle speed(r.p.m)200 - 24000 rpmpositioning accuracy (mm)0.02
    travel (x axis)(mm)1300travel (y axis)(mm)2500
    repeatability (x/y/z) (mm)0.02Spindle Motor Power (kw)3.2
    dimension(l*w*h)3.26*2.15*1.8m(10.70*7.05*5.91ft)Product name1325 CNC router machine
    Control systemNc-studio/Mach3/DSP A11Spindle3.2kw Water Cooling Spindle
    TransmissionXY Axis RackInverterBest
    Motorstepper/servor MotorTable SurfaceT-slot Aluminum +PVC or vacuum table
    Driving system860/Servo DriveGuide railTaiwan Hiwin Square Guide Rail
    Z axis transmissionBall screw Transmission
