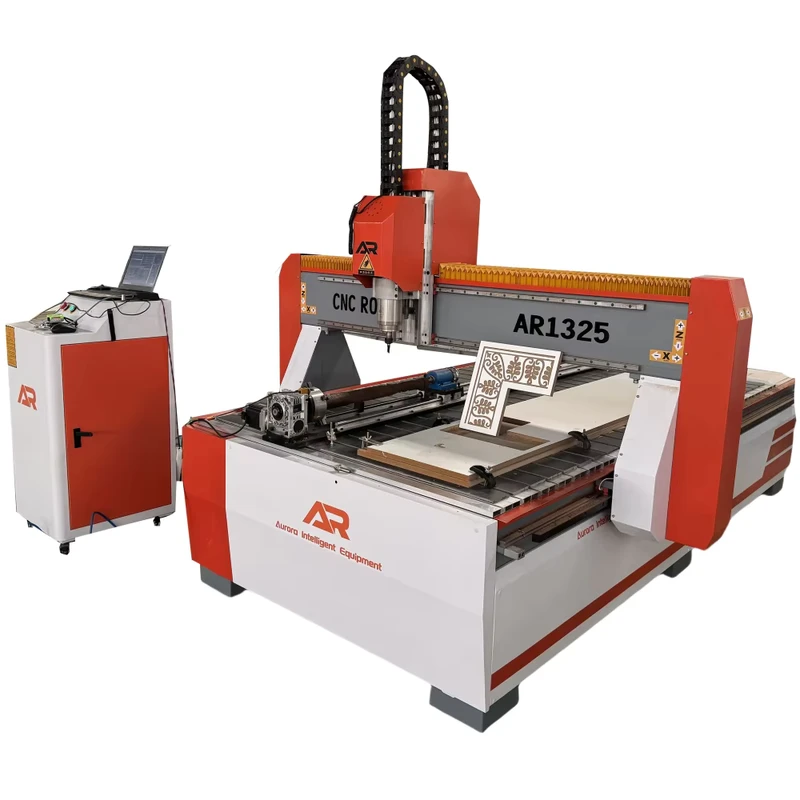

4 Axis 1325 4*8ft Cnc Router 3d Carving Wood Mdf Kitchen Cabinet Door Making Machines with Rotary Axis

4 Axis 1325 4*8ft Cnc Router 3d Carving Wood Mdf Kitchen Cabinet Door Making Machines with Rotary Axis
  • 4 Axis 1325 4*8ft Cnc Router 3d Carving Wood Mdf Kitchen Cabinet Door Making Machines with Rotary Axis

    • 4 Axis 1325 4*8ft Cnc Router 3d Carving Wood Mdf Kitchen Cabinet Door Making Machines with Rotary Axis

    Request a Quote
    Working Table Size(mm)2000×3000number of axes4
    voltageAC220V/380Vmachine typeCNC Router
    No. of SpindlesSinglekey selling pointsEasy To Operate
    core componentsMotor, PLCcnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    Power (kW)5weight (kg)1800
    range of spindle speed(r.p.m)0 - 24000 rpmpositioning accuracy (mm)0.05
    travel (x axis)(mm)1300travel (y axis)(mm)2500
    repeatability (x/y/z) (mm)0.03Spindle Motor Power (kw)3.7/4.5/5.5/6
    dimension(l*w*h)3100x1950x1700mm(122.05x76.77x66.93in)Product nameCnc Router Wood Carving Machine
    Spindle3/4.5/5.5kw/6kw SpindleControl systemNc-studio/Mach3/DSP Control System
    TransmissionXY-axis:rack Z-axis:ball ScrewSoftwareUcancam / ArtCam/TYPE3/Power Mill
    Working tableAluminum T Slot Working TableGuide railTaiwan Hiwin Square Guide Rail
    InverterBEST InverterMotor and driverStepper Motor Leadshine Driver (Servo is optional)
    Working area1300x2500mm/1500x3000mm/2000x3000mm/2000x4000mm etc
