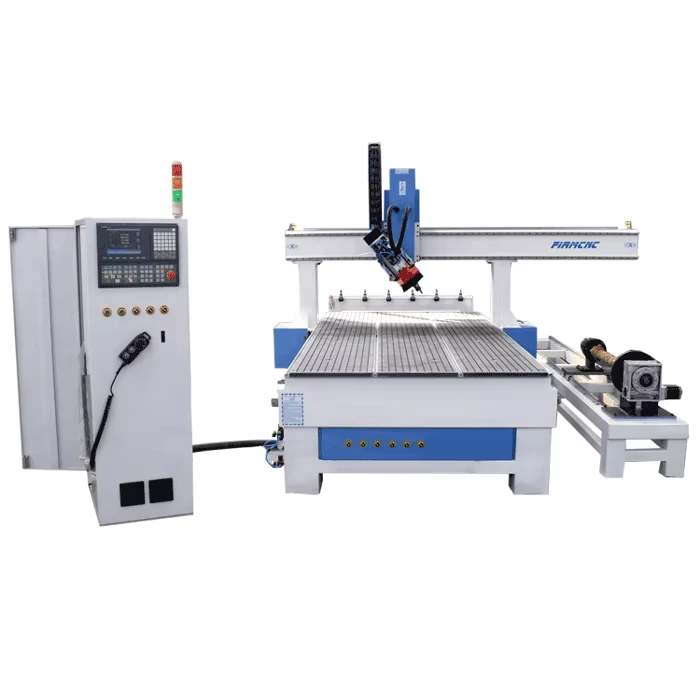

3D Wood Engraving Carving CNC Machine 4 Axis CNC Router

3D Wood Engraving Carving CNC Machine 4 Axis CNC Router
  • 3D Wood Engraving Carving CNC Machine 4 Axis CNC Router

    • 3D Wood Engraving Carving CNC Machine 4 Axis CNC Router

    Request a Quote
    Working Table Size(mm)1300×2500number of axes4
    voltage380V 3P 50-60HZmachine typeCNC Router
    No. of SpindlesSinglekey selling pointsHigh-Accuracy
    core componentsBearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearboxcnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    Power (kW)9weight (kg)2400
    range of spindle speed(r.p.m)1 - 24000 rpmpositioning accuracy (mm)0.01 mm(0in)
    travel (x axis)(mm)1300 mm(51.18in)travel (y axis)(mm)2500 mm(98.43in)
    repeatability (x/y/z) (mm)0.01 mm(0in)Spindle Motor Power (kw)9.0
    dimension(l*w*h)3900 *2200 *2000 mm(153.54*86.61*78.74in)Keywords4 axis cnc router
    Control systemTaiwan LNC / SyntecSpindle9.0KW ATC Spindle
    Table SurfaceVacuum Combined T-slot TableMotor and driverServo motor and drives
    Guide railTaiwan Hiwin Square Guide RailTool magazine12 tools
    InverterTaiwan Delta InverterSoftwareArtCam/Power Mill
    Working speed30000mm/min
