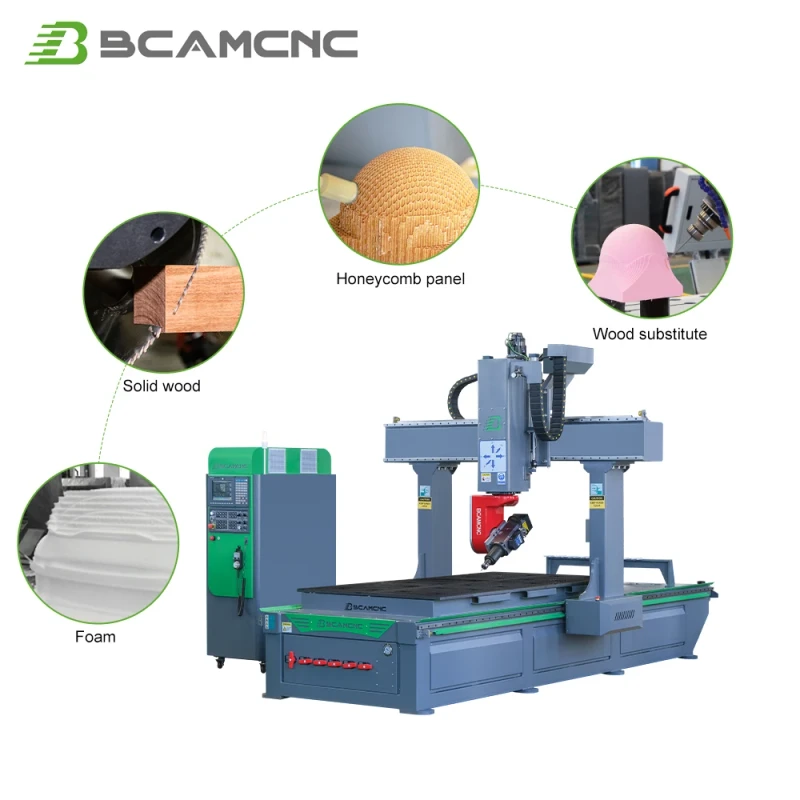

3D Wood Carving Machine Price with Enhanced Features and Upgraded Control System for Professional Use
3D Wood Carving Machine Price with Enhanced Features and Upgraded Control System for Professional Use
| number of axes | 5 | voltage | 380 V, 240V |
| machine type | CNC Router | No. of Spindles | ATC |
| key selling points | Competitive Price | Accessory Type | Scanner, Dust collection |
| core components | Motor, Pump, Gear, Pressure Vessel, PLC, Bearing, Engine, Gearbox, Other | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| weight (kg) | 2000 | range of spindle speed(r.p.m) | 6000 - 24000 rpm |
| positioning accuracy (mm) | 0.01 | travel (x axis)(mm) | 1300 |
| travel (y axis)(mm) | 2500 | repeatability (x/y/z) (mm) | 0.01 |
| Spindle Motor Power (kw) | 9 | dimension(l*w*h) | 3500*2000*1550mm(137.80*78.74*61.02in) |
| Product name | 3d Cnc Wood Carving Machine | Application | Wood Foam Mould Engraving |
| Keywords | 3D Wood Cnc Router | Control system | Nc-studio/Mach3/DSP Control System |
| Spindle | 9KW Air Cooling Spindle | Function | 3d 5axis Cnc Router Machine |
| Table | Vacuuum Table | Linear Guide Rail | Taiwan Hiwin Square Guide Rail |
| Servo Motor Drive | Japan Yaskawa Servo System | After-sales Service Provided | 24 Hours Online Service+Engineers |
