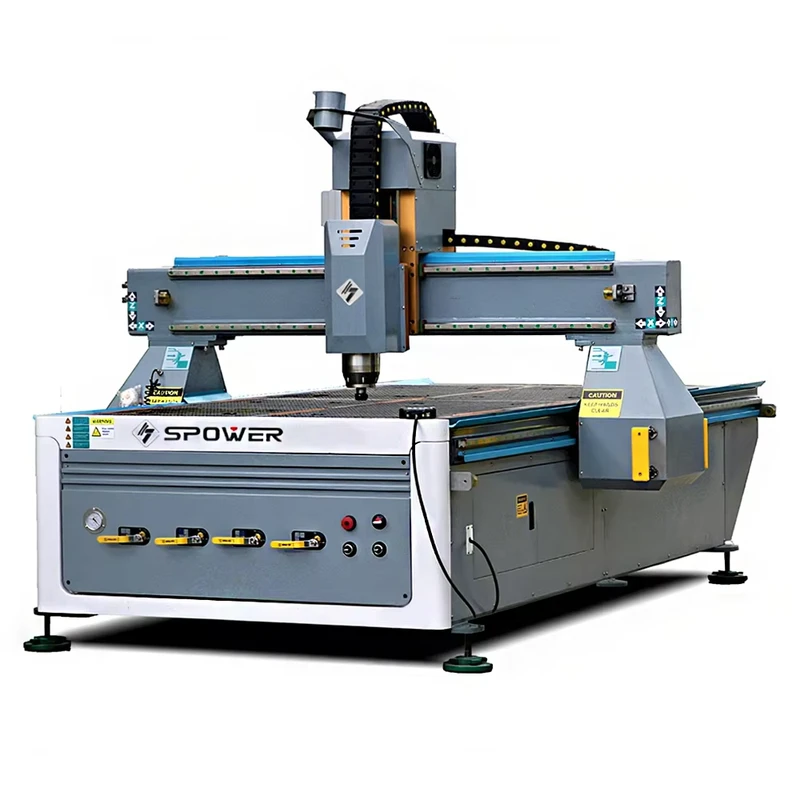

3D Wood 1325 Cnc Router Machine for Cutting and Engraving Wood Metal Alucobond Aluminum Acrylic MDF PVC Plastic
3D Wood 1325 Cnc Router Machine for Cutting and Engraving Wood Metal Alucobond Aluminum Acrylic MDF PVC Plastic
| Working Table Size(mm) | 1300×2500 | number of axes | 3 |
| voltage | AC380V(Option :220V) | machine type | CNC Router |
| No. of Spindles | Single | key selling points | Easy To Operate |
| core components | Motor, Bearing, Gear | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| Power (kW) | 3 | weight (kg) | 1500 |
| range of spindle speed(r.p.m) | 6000 - 24000 rpm | positioning accuracy (mm) | 0.03 |
| travel (x axis)(mm) | 1300 | travel (y axis)(mm) | 2500 |
| repeatability (x/y/z) (mm) | 0.02 | Spindle Motor Power (kw) | 3.0kw(4.02hp) |
| dimension(l*w*h) | 3440*2280*1800mm(135.43*89.76*70.87in) | Product name | CNC Wood Working Machine |
| Application | Wood Working | Control system | syntec,rich auto |
| Working area | 1300x2500mm | Spindle | Air Cooling Spindle |
| Spindle power | 3.0 Kw | After-sales Service Provided | Online Support |
| Transmission | Ball Screw Z axis | Inverter | Fuling Inverter |
| Guide rail | Square Guide Rail |
