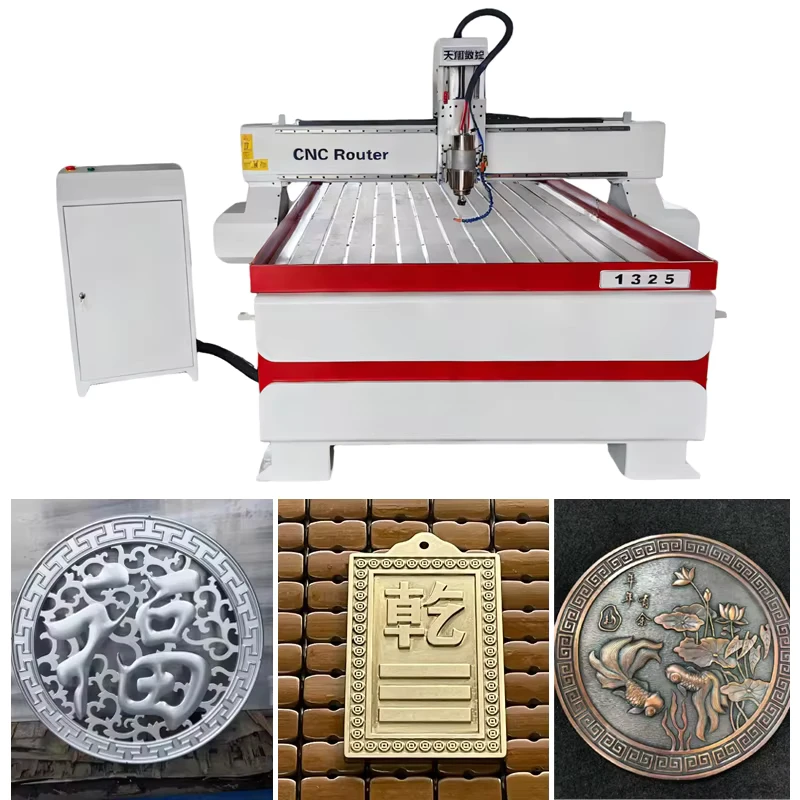

3D 3-Axis CNC Router 3-Axis Metal Stone Aluminum Wood Cutting and Carving Machine 1325
3D 3-Axis CNC Router 3-Axis Metal Stone Aluminum Wood Cutting and Carving Machine 1325
| number of axes | 3 | voltage | 220v/380v |
| machine type | CNC Router | No. of Spindles | Single |
| key selling points | Easy To Operate | core components | "Bearing, Motor, Pump, Gear, PLC. Pressure Vessel, |
| cnc or not | CNC | video outgoing-inspection | Provided |
| machinery test report | Provided | weight (kg) | 1300 |
| range of spindle speed(r.p.m) | 0 - 24000 | positioning accuracy (mm) | 0.03 |
| travel (x axis)(mm) | 1300 | travel (y axis)(mm) | 2500 |
| repeatability (x/y/z) (mm) | 0.03 | Spindle Motor Power (kw) | 3.5 |
| dimension(l*w*h) | 3000*2100*1550mm(118.11*82.68*61.02in) | Product name | 1325 Woodworking Stone Metal Integrated Carving Machine |
| Application | Cutting/engraving | Working Voltage: | AC380V/50HZ |
| Transmission | Rack and pinion | Software | Type 3 / Artcam / Castmate / Proe / UG / CAD ,and other software |
| color | white (You can customize) | Drive and Motor | Stepper/Servo |
| Spindle: | Water cooling/Air cooling | "After-sales Service Provided" | Engineers available to service machinery overseas |
