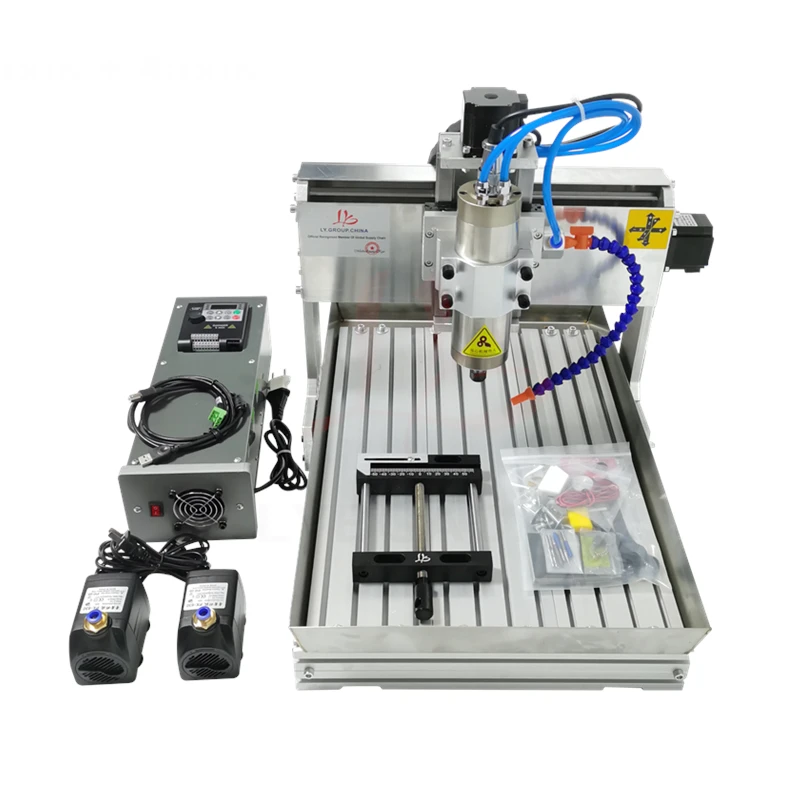

3axis CNC Engraving LYFS4060 Drilling and Milling Machine for Aluminum Copper Plastic Acrylic Wood 1500W Water cooled CNC Router

3axis CNC Engraving LYFS4060 Drilling and Milling Machine for Aluminum Copper Plastic Acrylic Wood 1500W Water cooled CNC Router
  • 3axis CNC Engraving LYFS4060 Drilling and Milling Machine for Aluminum Copper Plastic Acrylic Wood 1500W Water cooled CNC Router

    • 3axis CNC Engraving LYFS4060 Drilling and Milling Machine for Aluminum Copper Plastic Acrylic Wood 1500W Water cooled CNC Router

    Request a Quote
    number of axes3voltage220V
    machine typeCNC RouterNo. of SpindlesSingle
    key selling pointsEasy To OperateAccessory Typecnc engraving machine parts
    core componentsMotor, othercnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    weight (kg)47range of spindle speed(r.p.m)0 - 24000
    positioning accuracy (mm)0.02travel (x axis)(mm)400
    travel (y axis)(mm)600repeatability (x/y/z) (mm)0.02
    Spindle Motor Power (kw)1.5dimension(l*w*h)80*60*50cm(31.50*23.62*19.69in)
    ModelLYFS4060Working stroke (XYZ) mm400*600*100
    Acceptable material thickness≤120mmRack material12~15mm aluminum plate
    Table materialAluminum alloy T table + Water tankRail typeSquare line rail track
    Spindle motor1500W/2200W VFD Water-cooled spindleCollet typeER11,1/8"(3.175mm) Collet
    Stepper motor and drive57HS56Communication interfaceUSB Port
