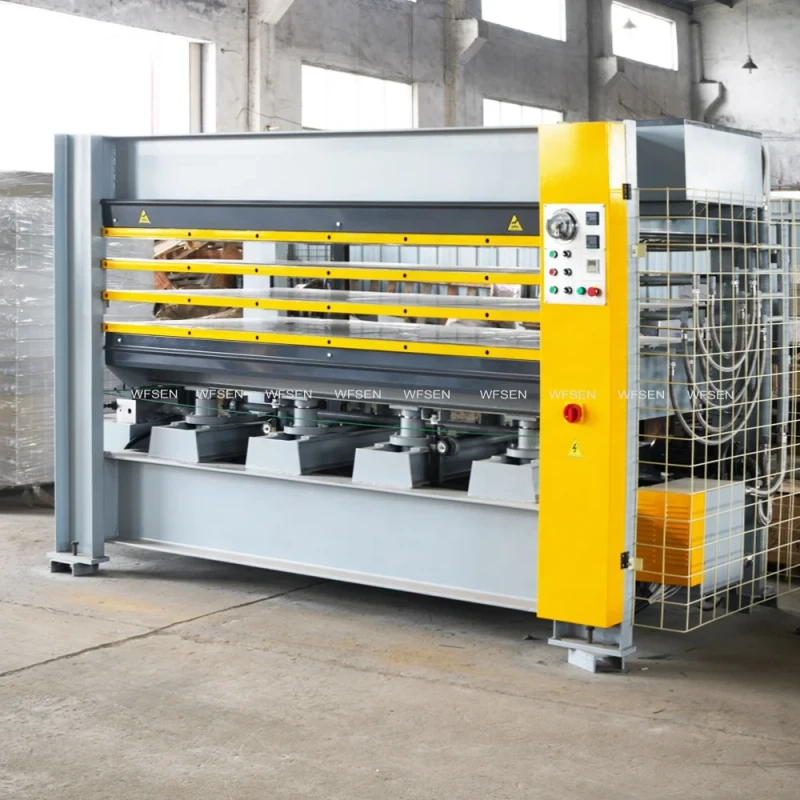

3 Layer Lamination Hot Press Machinery Hydraulic Hot Press Machine for Plywood Wood Doors
3 Layer Lamination Hot Press Machinery Hydraulic Hot Press Machine for Plywood Wood Doors
| type | Hot Press | max.pressure(t) | 120 |
| working table size(mm) | 1250×2500 | voltage | 220 V, 380 V |
| core components | PLC, Engine, Gearbox, Bearing, Pressure Vessel, Motor, Gear | key selling points | Easy To Operate |
| machinery test report | Provided | video outgoing-inspection | Provided |
| weight (kg) | 9000 | power (kw) | 39 |
| dimension(l*w*h) | 3700*1700*2000mm(145.67*66.93*78.74in) | Product name | Hydraulic Hot Press Machine for Plywood Wood Doors |
| Heating media | Thermal Oil | Platen size | 2500*1250*42mm |
| Cylinder No.& diameter | 6x100mm | Hydraulic Motor Power | 5.5kw |
| Hot Oil Pump Power | 3.7kw | Total pressure | 120T |
| Heating Method | Electrical Heated | Model | 3 layers |
| Application | Plywood Product |
