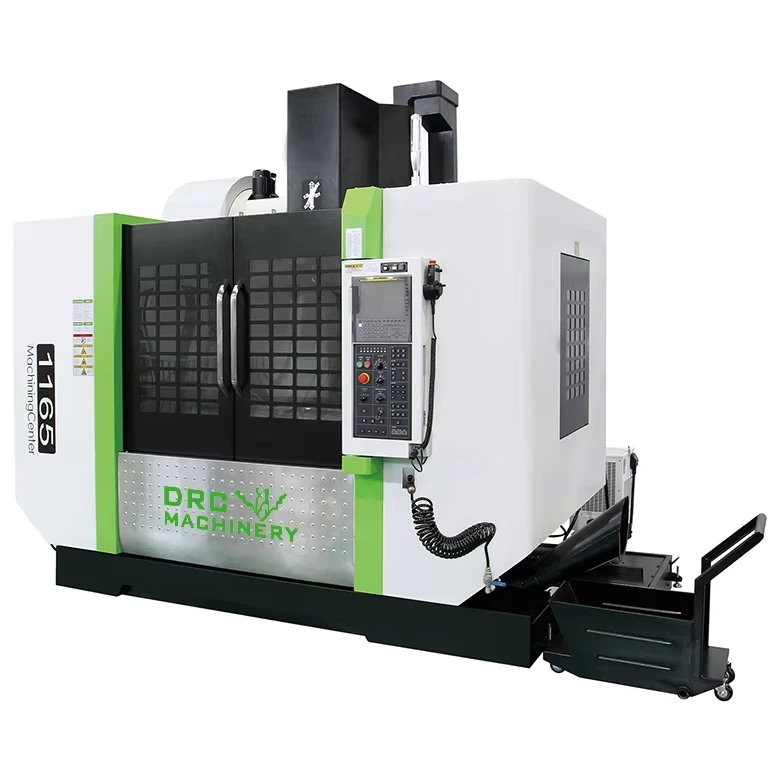

3 4 5 Axis Vertical CNC Machining Center CNC Manufacturer MV1165 High Precision Machining Centre
3 4 5 Axis Vertical CNC Machining Center CNC Manufacturer MV1165 High Precision Machining Centre
| type | VERTICAL | number of axes | 3, 4, 5 |
| table travel (x) (mm) | 1100 mm(43.31in) | table travel (y) (mm) | 650 mm(25.59in) |
| table travel (z) (mm) | 650 mm(25.59in) | repeatability (x/y/z) (mm) | 0.001 |
| positioning accuracy | 0.002 mm(0in) | spindle taper | BT40 |
| no. of spindles | Single | tool magazine capacity | 24 |
| cnc control system | GSK, FANUC | voltage | 220/380 |
| table size | 1300X650mm | machinery test report | Provided |
| video outgoing-inspection | Provided | min. time of tool change(s) | 2 |
| key selling points | High-Accuracy | weight (t) | 7.5 T(8.27short tons ) |
| max. table load(kg) | 1000 kg(2204.62lb) | dimension(l*w*h) | 3500x2700x2650mm(137.80x106.30x104.33in) |
| range of spindle speed | 8000 - 10000 r.p.m | spindle motor power | 11/15 |
| After-sales Service Provided | Engineers available to service machinery overseas | Color | As you need Machining Center |
| Spindle diameter | 170mm | Tool magazine type | BT40 |
| Tool magazine capacity | 24 | Rotary table hydraulic clamping force | 4000NM |
| Spindle speed(r/min) | 8000 | Ballscrew support bearing | NSK |
| High Precision Machining Centre | 3/4/5 Axis Vertical Cnc Machining Center Cnc Manufacturer MV1165 | Product name | CNC Machining Center |
