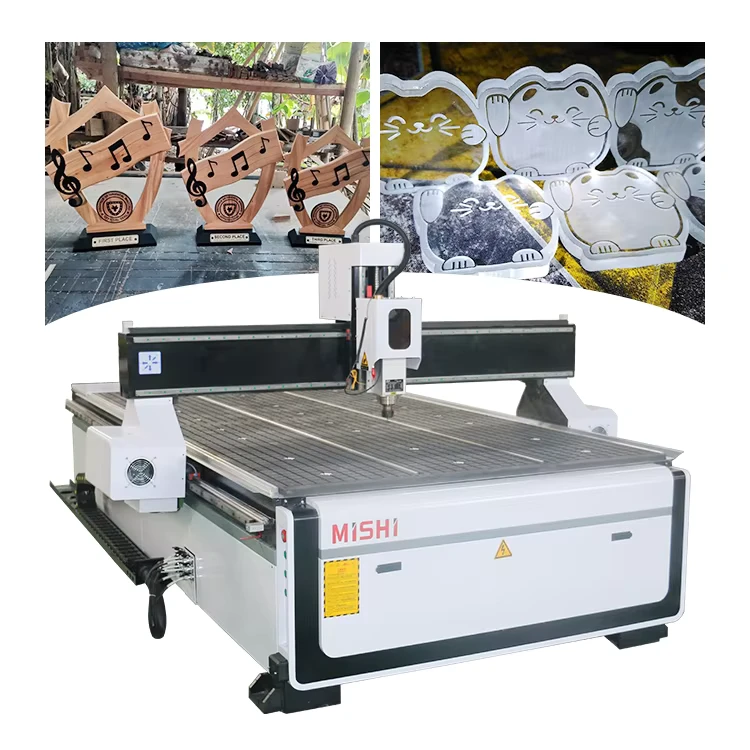

1500 x 3000 5x10 ft Woodworking Nesting 1530 3 Axis 3D Wood DSP Control Handle 1530 CNC Router Machine

1500 x 3000 5x10 ft Woodworking Nesting 1530 3 Axis 3D Wood DSP Control Handle 1530 CNC Router Machine
  • 1500 x 3000 5x10 ft Woodworking Nesting 1530 3 Axis 3D Wood DSP Control Handle 1530 CNC Router Machine

    • 1500 x 3000 5x10 ft Woodworking Nesting 1530 3 Axis 3D Wood DSP Control Handle 1530 CNC Router Machine

    Request a Quote
    number of axes3voltage220v/380V 50HZ
    machine typeCNC RouterNo. of SpindlesSingle
    key selling pointsHigh Rigiditycore componentsMotor, Driver, System, Spindle
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)1200
    range of spindle speed(r.p.m)1 - 24000 rpmpositioning accuracy (mm)0.01
    travel (x axis)(mm)1500travel (y axis)(mm)3000
    repeatability (x/y/z) (mm)0.01Spindle Motor Power (kw)3.2Kw(4.29hp)
    dimension(l*w*h)3700*2200*1650mm(145.67*86.61*64.96in)TransmissionTaiwan TBI Ball Screw
    Working tableAluminum T Slot Working TableApplicationWood Acrylic PVC Engraving Cutting
    Guide railTaiwan Hiwin Square Guide RailSoftwareUcancam / ArtCam/TYPE3
    Product nameCnc Router Wood Carving MachineKeywordsCnc Wood Router Engraver
    FunctionWood Acylic Plywood MDF EngravingMaterialWood Plastic Acrylic Foam Polystyrene Composite
    ColorCustomer Needing
