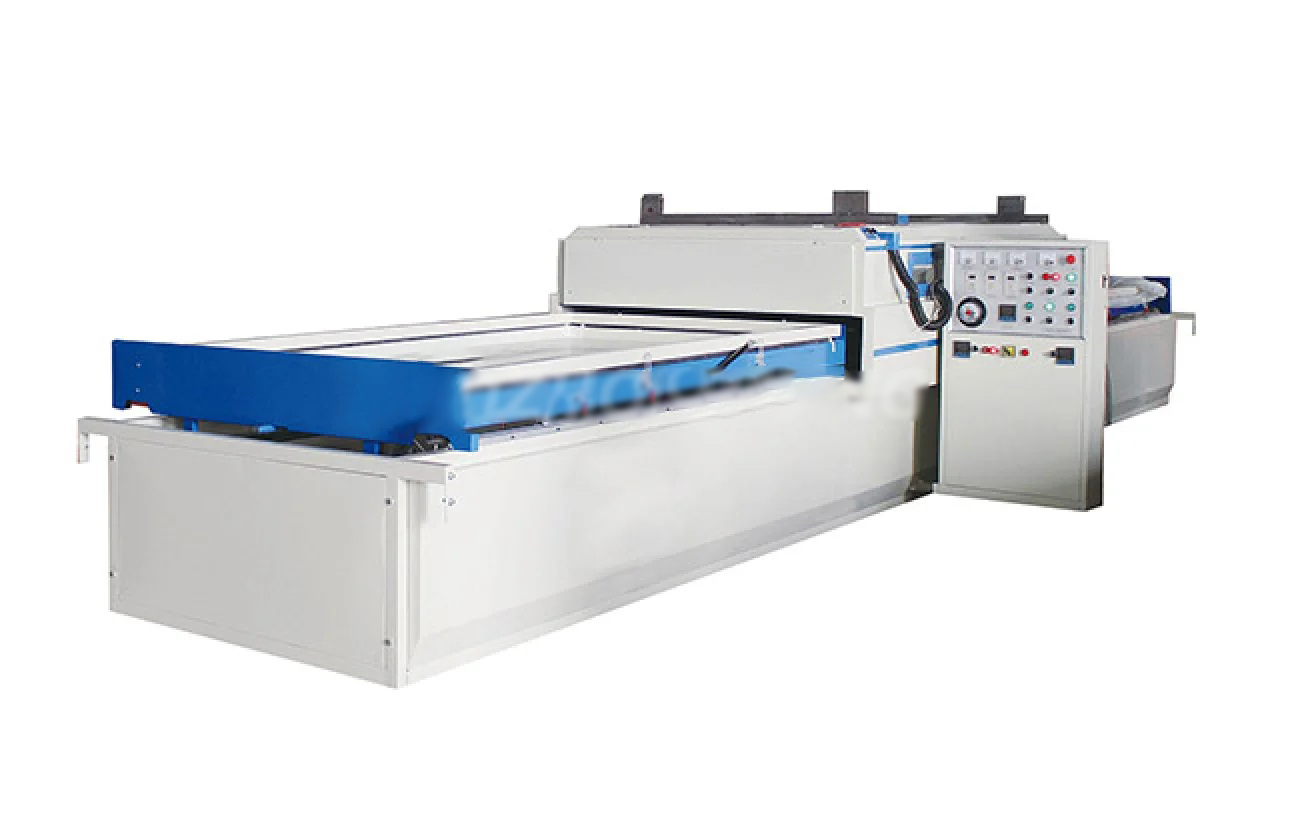

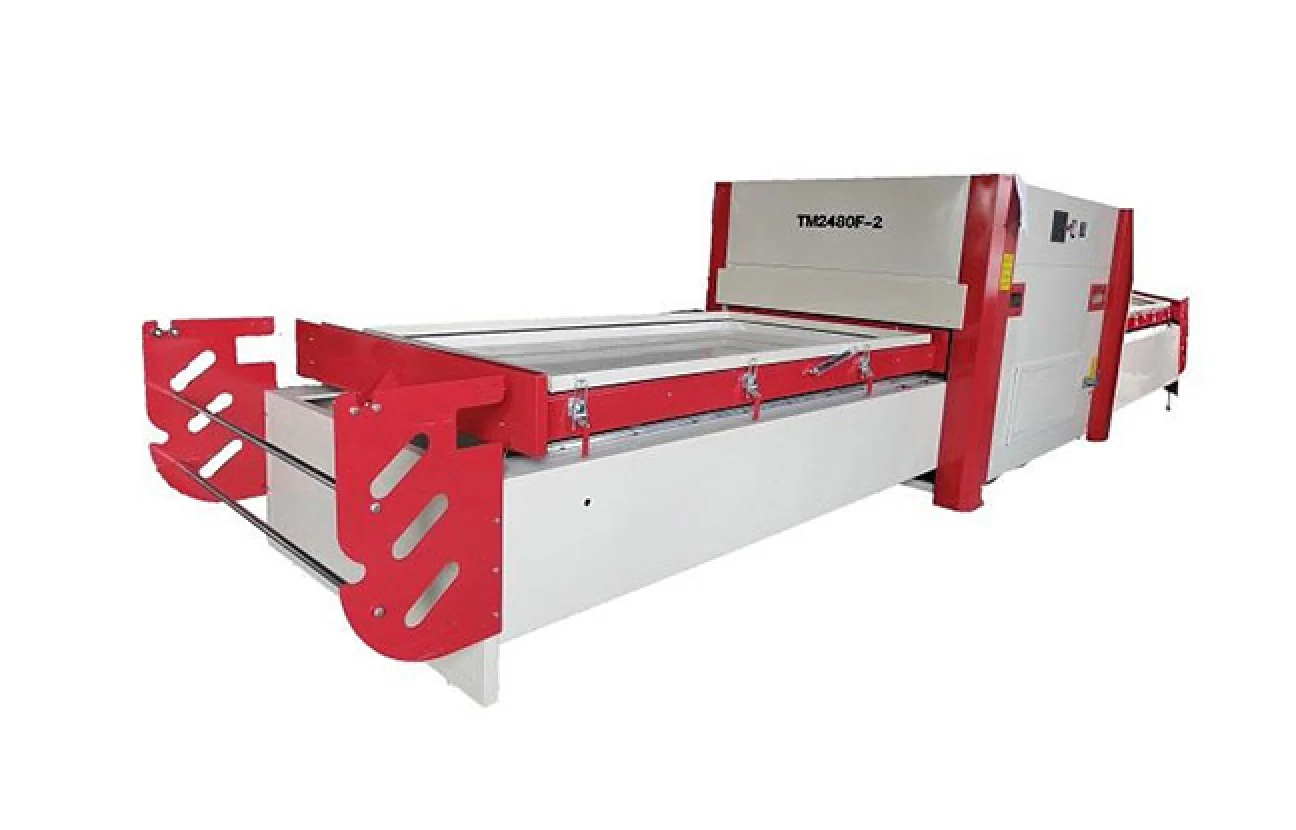

Vacuum Laminating Machine
<div class="texts"> <p>● Vacuum laminating machine has high work efficiency</p><p>● Fast and uniform heating</p><p>● Firmly adsorbed</p><p>● Long life service</p><p>● Customizable and OEM & ODM</p></div>
Vacuum Laminating Machine
● Vacuum laminating machine has high work efficiency
● Fast and uniform heating
● Firmly adsorbed
● Long life service
● Customizable and OEM & ODM
Model | TM2480H-2 | Electrical parts brand | Schneider |
Overall size | 9800*2200*1800mm | Real power consumption | 8-9kw/h |
Working table size | 2500*1300mm+2500*1100mm | Total weight | 3000kg |
Processing height | 60mm | Power | 3 phase 4 wire380V, 50Hz |
Rated working pressure | The negative pressure is more or equal than -0.1Mpa | Installed power | 45KW |
1.MCGS Brand PLC touch screen control pane has a high degree of automation, simple operation and low failure rate, can store the 16 kinds of processing data for different doors. One-touch start + working table automatic entry and exit + regular heating + automatic vacuum laminating.
Shanghai vacuum pump, vacuum speed is140cbm/h ,ultimate vacuum formation is faster, performance is more stable, applied with three air tanks. It takes 4mins to finish one door laminating.
Aluminum row heating technology, auxiliary heating on both sides, uniform heating, energy saving Metal five-sided aluminum row heating + multi-point auxiliary heating + heating under the workbench.
Double side working table, driving by round guide rail, can move smoothly.
Rack is controlled by inverter.
Automatic lock the PVC film device，high efficiency .
