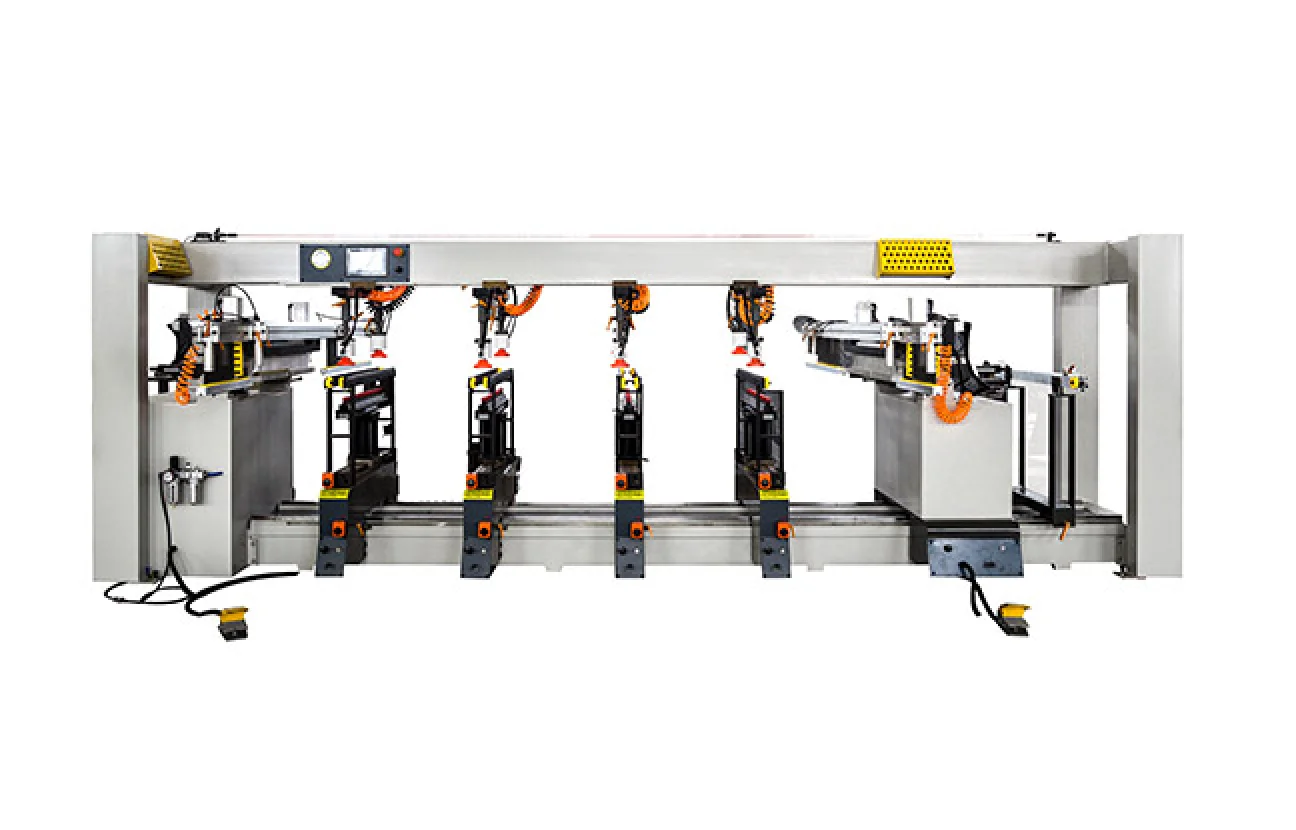

Drilling Machine for Furniture
<div class="texts"> <p>● PLC industrial control system, powerful, work very stable</p><p>● Steel undergoes high-temperature annealing (to eliminate internal stress) treatment</p><p>● Higher working efficiency</p><p>● Long life service</p><p>● Customizable and OEM & ODM</p></div>
Drilling Machine for Furniture

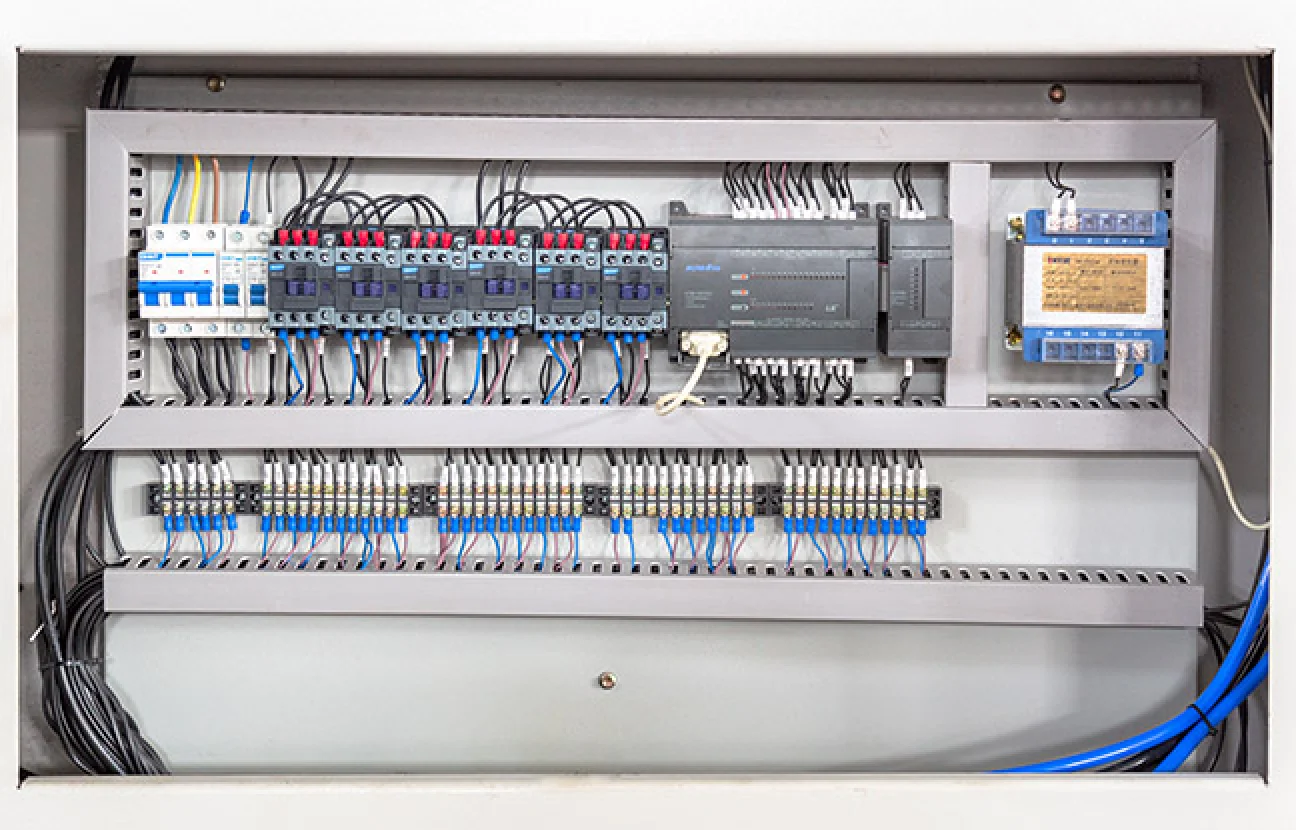

● PLC industrial control system, powerful, work very stable
● Steel undergoes high-temperature annealing (to eliminate internal stress) treatment
● Higher working efficiency
● Long life service
● Customizable and OEM & ODM
Model No | MZ73216 |
Power | 9kw |
Max working depth | 60mm |
Vertical spindle heads | 140-3500mm |
Number of spindle | 21*6 |
Spindle speed | 2800rpm |
Motor power | 1.5kw*6 |
Overall dimensions | 4500*1200*1600mm |
Max processing thickness | 20-96mm |
Max processing width | 800mm |
Net weight | 1200kg |
Max drill diameter | max=35mm(for single drill) |

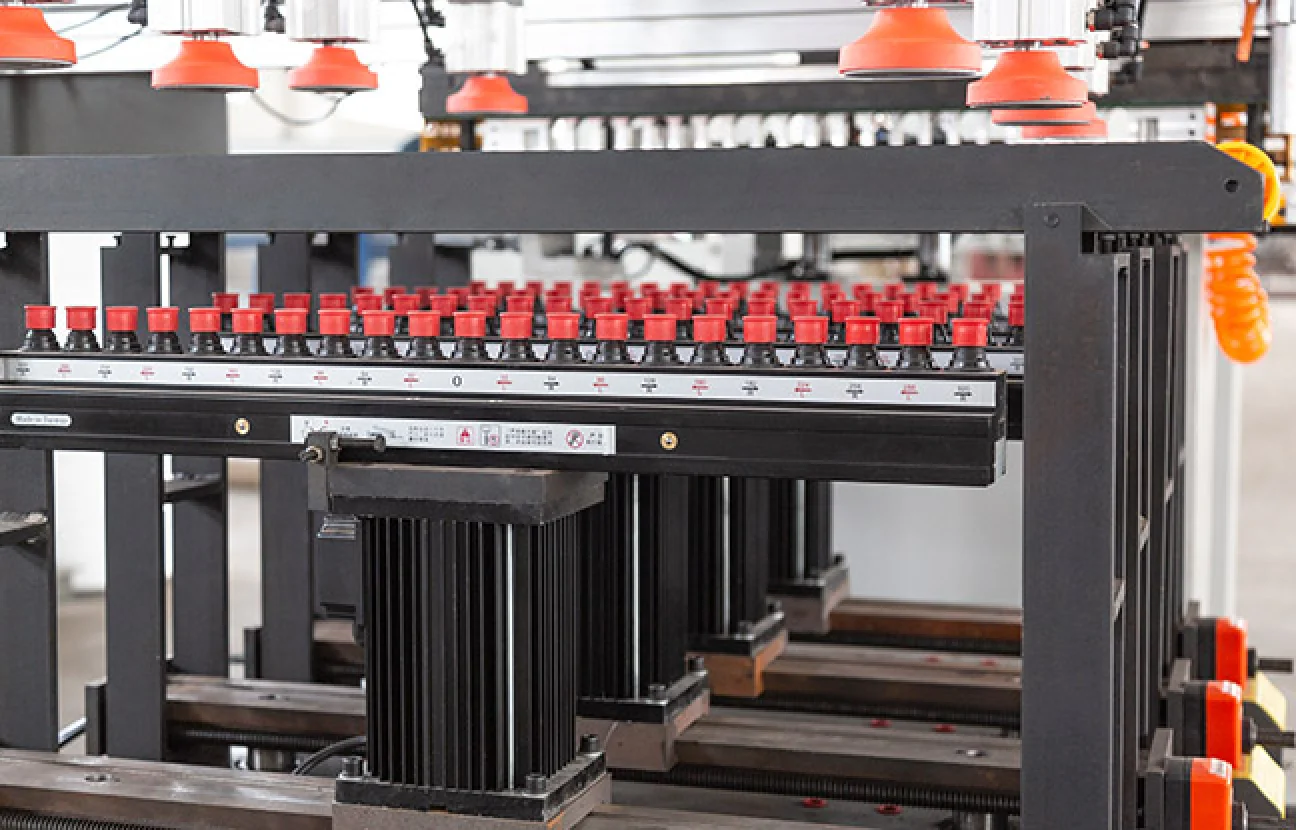

The drilling range is large, and all drilling head are quick and easy to use.

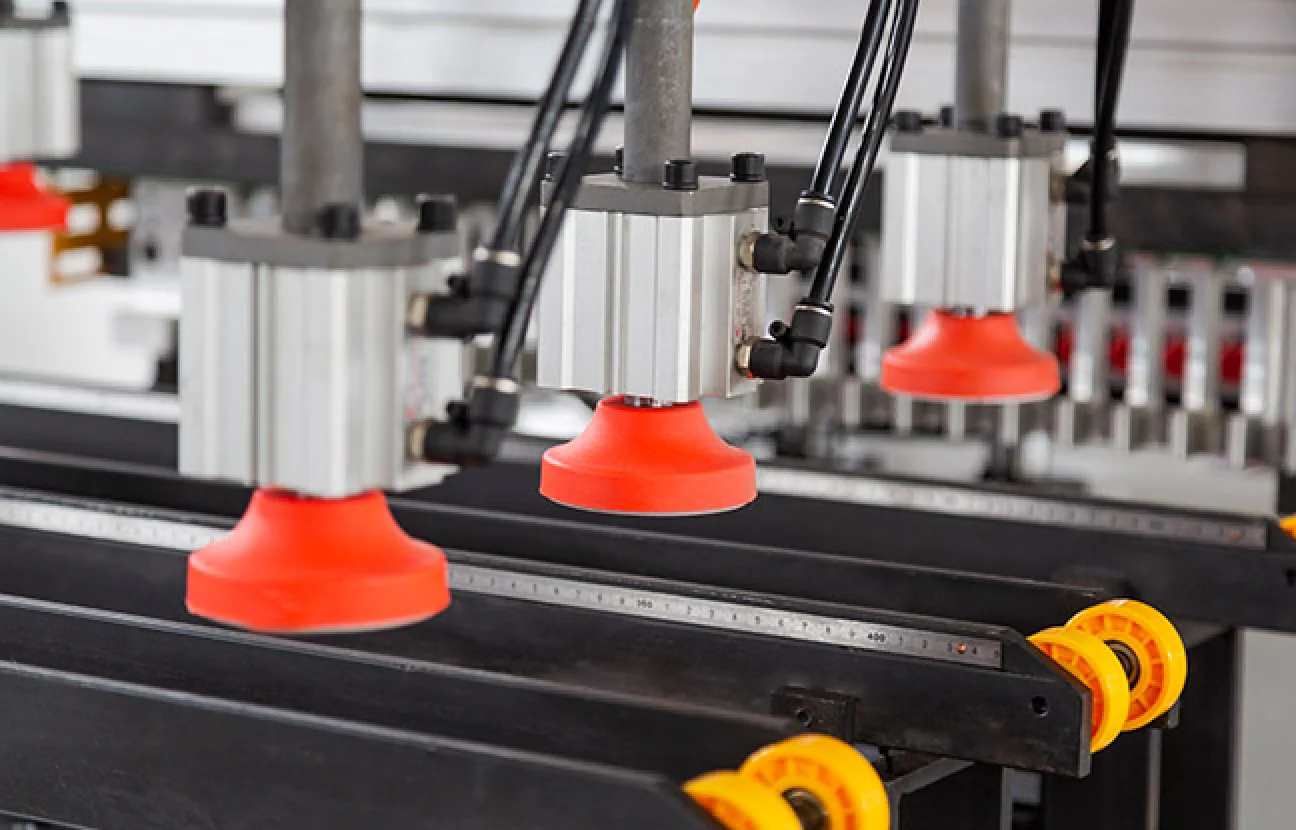

The drilling head has high precision, small amplitude, simple opening and long service life.
Drill assembly display, optimized design and reasonable structure, built in drag chain, easy to transport and use.
