Drilling Machinery Wood
<div class="texts"> <p>● Drilling Machinery Wood uses PLC industrial control system, powerful, work very stable</p><p>● Steel undergoes high-temperature annealing (to eliminate internal stress) treatment</p><p>● Higher working efficiency</p><p>● Long life service</p><p>● Customizable and OEM & ODM</p></div>

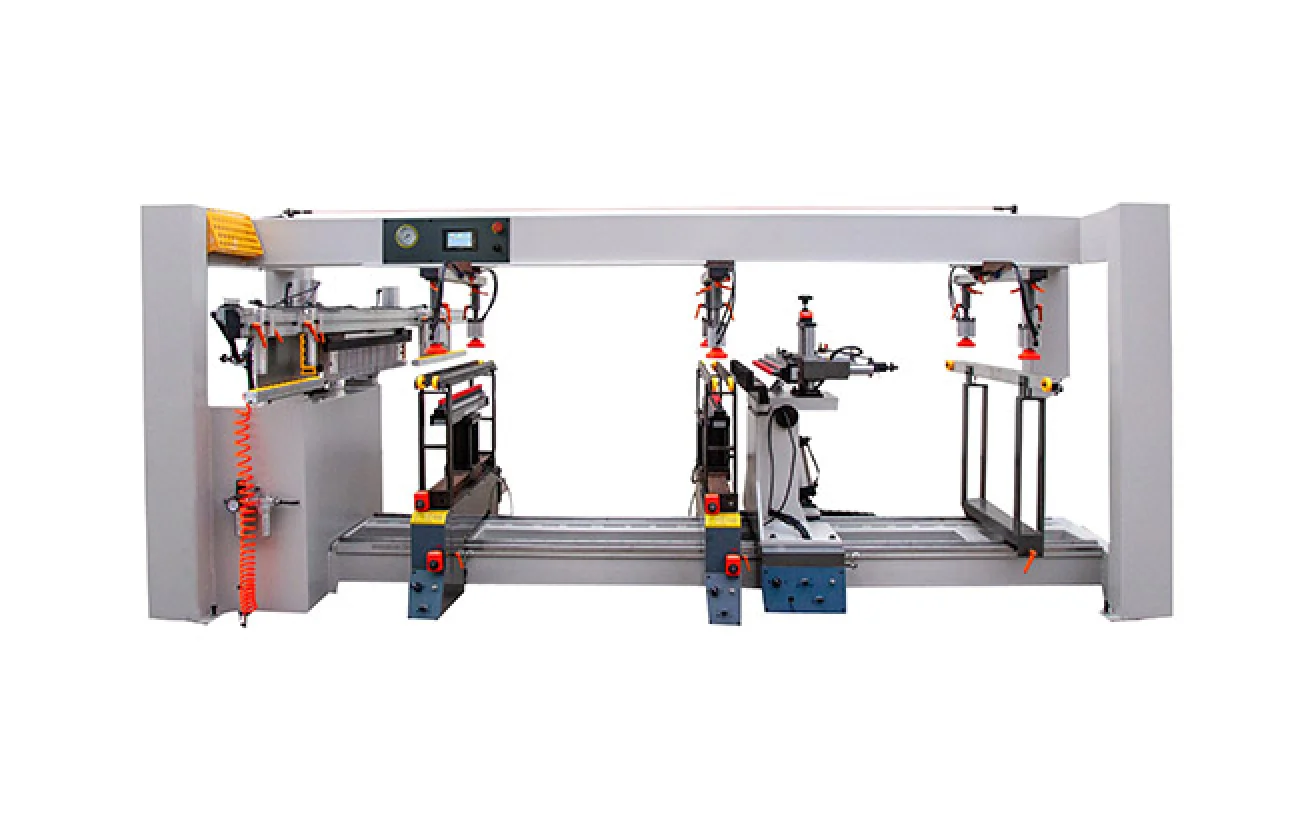

Drilling Machinery Wood
● Drilling Machinery Wood uses PLC industrial control system, powerful, work very stable
● Steel undergoes high-temperature annealing (to eliminate internal stress) treatment
● Higher working efficiency
● Long life service
● Customizable and OEM & ODM
Model No | MZ73214 |
Max drill diameter | 35mm |
Max working depth | 60mm |
Vertical spindle heads | 130-2500mm |
Number of spindle | 21*4 lines |
Spindle speed | 2840 rpm |
Install power | 1.5 kw *4 |
Air pressure | 0.6-0.8 Mpa |
Overall size | 3500*2500*1500mm |
Max processing width | 2500mm |
Net weight | 1000kg |

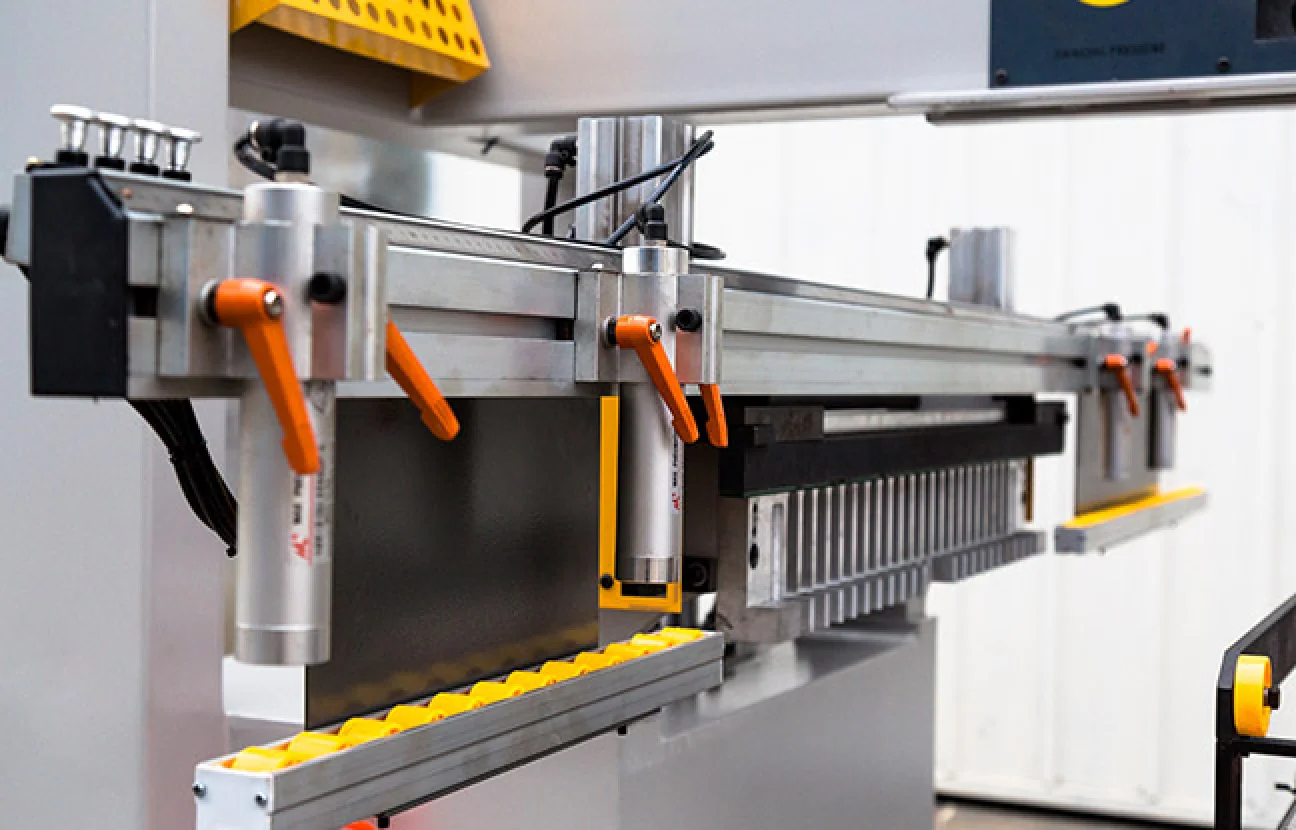

Imported cylinder The air pressure adjustment button is upgraded to directly the air pressure and change the past air pressure adjustment.

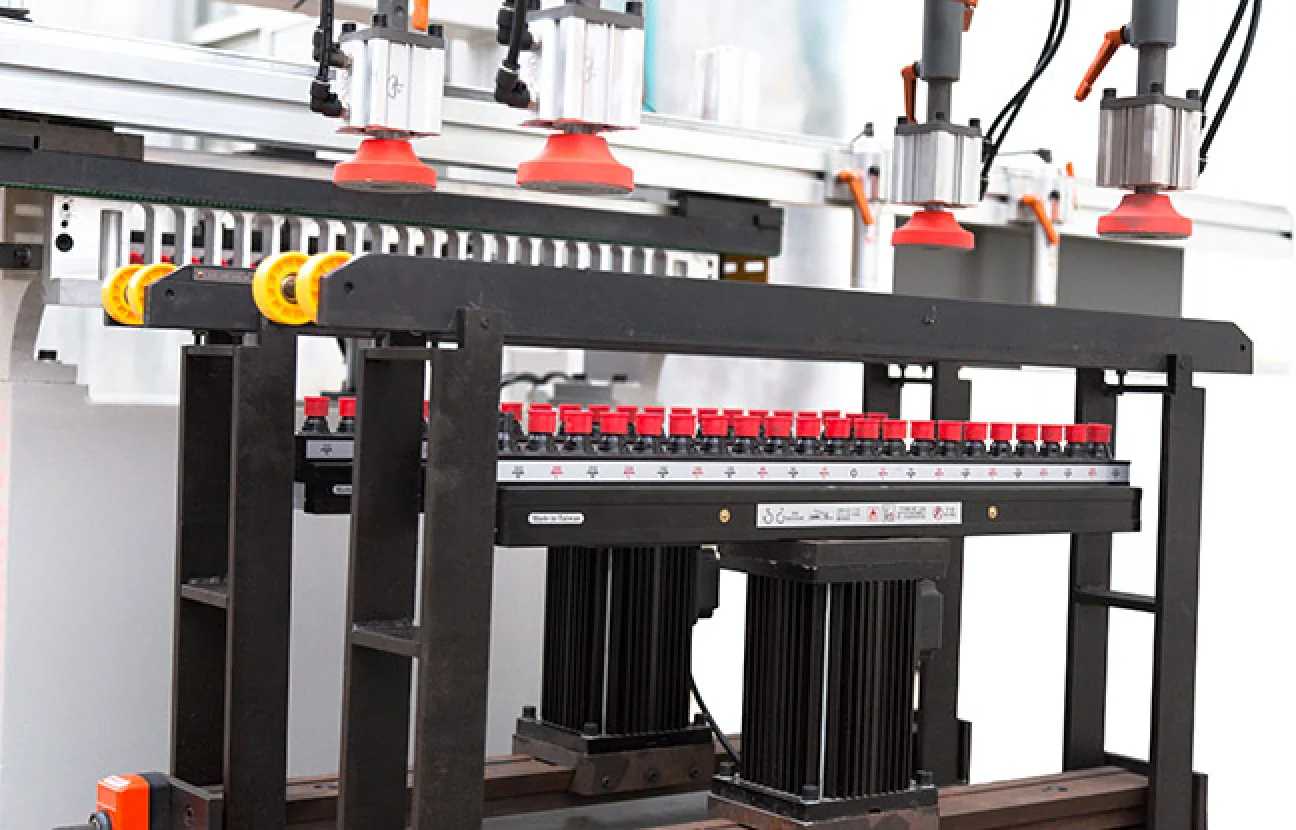

High speed boring tool can adjust the drilling rate for plates of different hardness and make the equipment run stably.

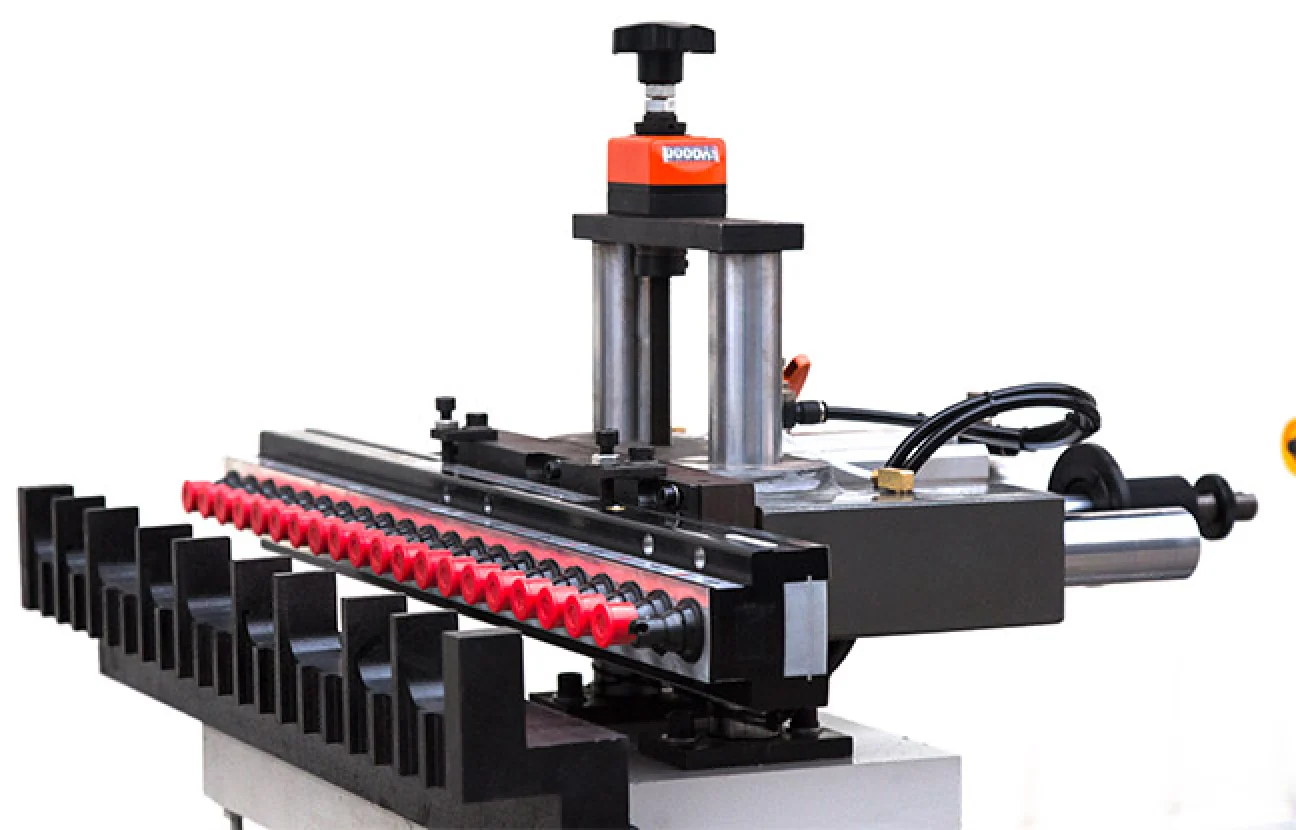

Drill assembly display, optimized design and reasonable structure, built in drag chain, easy to transport and use.
