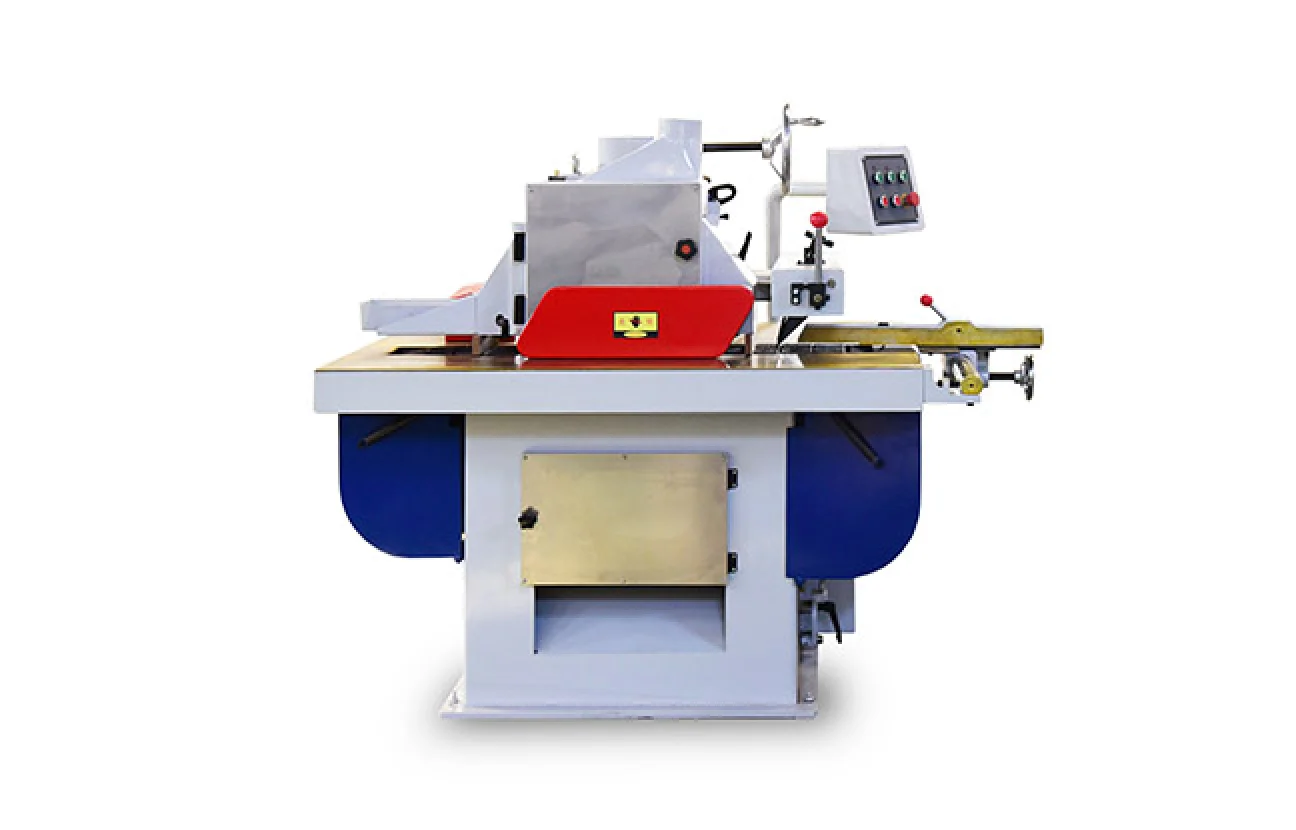

Rip Saw
<div class="texts"> <p>● Rip Saw is high precision of tracked feeding chain</p><p>● New clamper makes the feeding more stable</p><p>● Super-long guide rail</p><p>● Sealed electrical cabinet to ensure cleanliness of the electrical box</p><p>● Customizable and OEM & ODM</p></div>
Rip Saw
● Rip Saw is high precision of tracked feeding chain
● New clamper makes the feeding more stable
● Super-long guide rail
● Sealed electrical cabinet to ensure cleanliness of the electrical box
● Customizable and OEM & ODM
Model | MJ153 |
Working thickness | 85mm |
Min. working length | 120 |
Saw blade & fuselage distance | 460 |
Saw spindle diameter | φ30mm |
Saw diameter and sawing height | φ250(10-60)mm |
Main shaft speed | 3500 |
Feeding speed | 13172123 |
Main saw motor | 7.5 |
Feeding motor | 0.75 |
Dust output diameter | φ100mm |
Inner dust collector | / |
Size within the container | 2024*1337*1480 |
Machine weight | 1000kg |

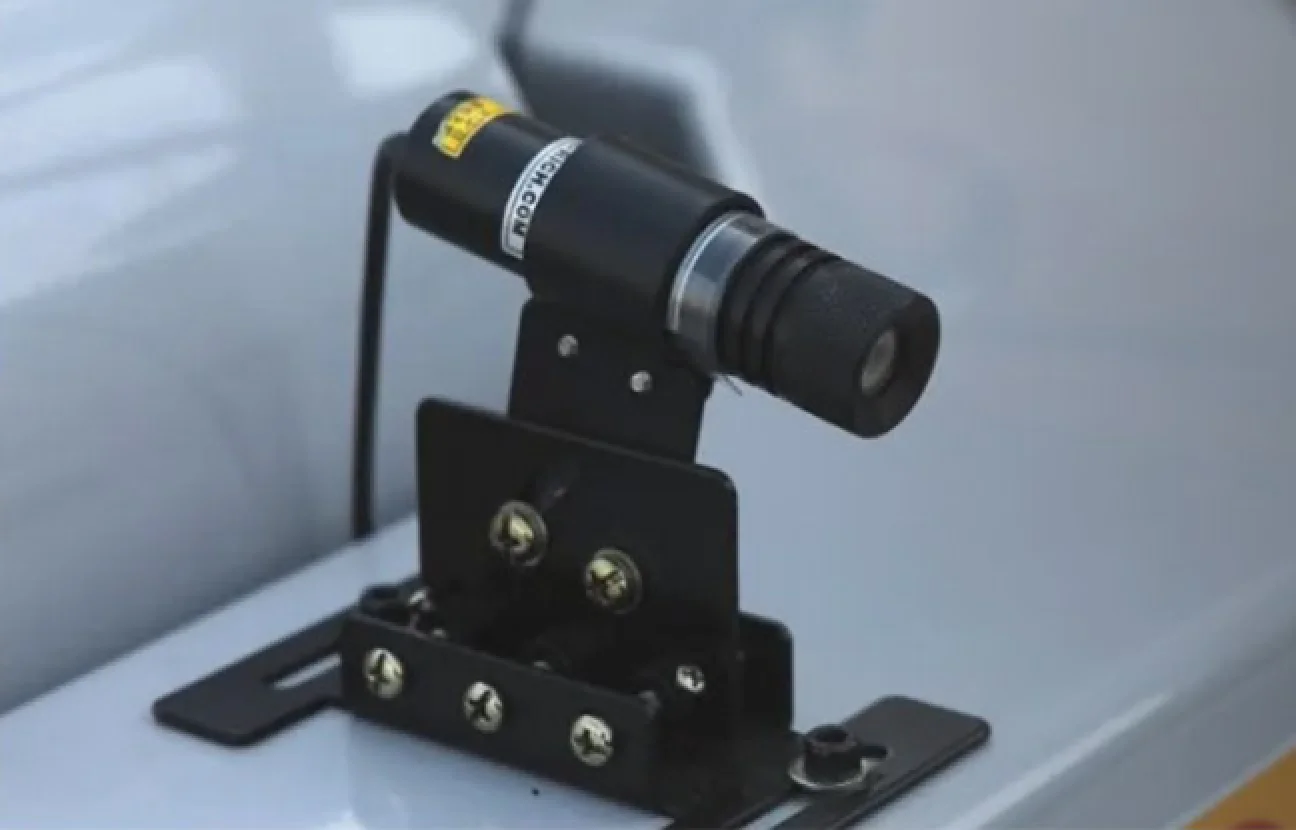

Selected for infrared calibration device ,the workpiece; calibration can be real-time monitoring.
The surface of the tabletop is treated with anti-rust ,and the top is smooth and durable.

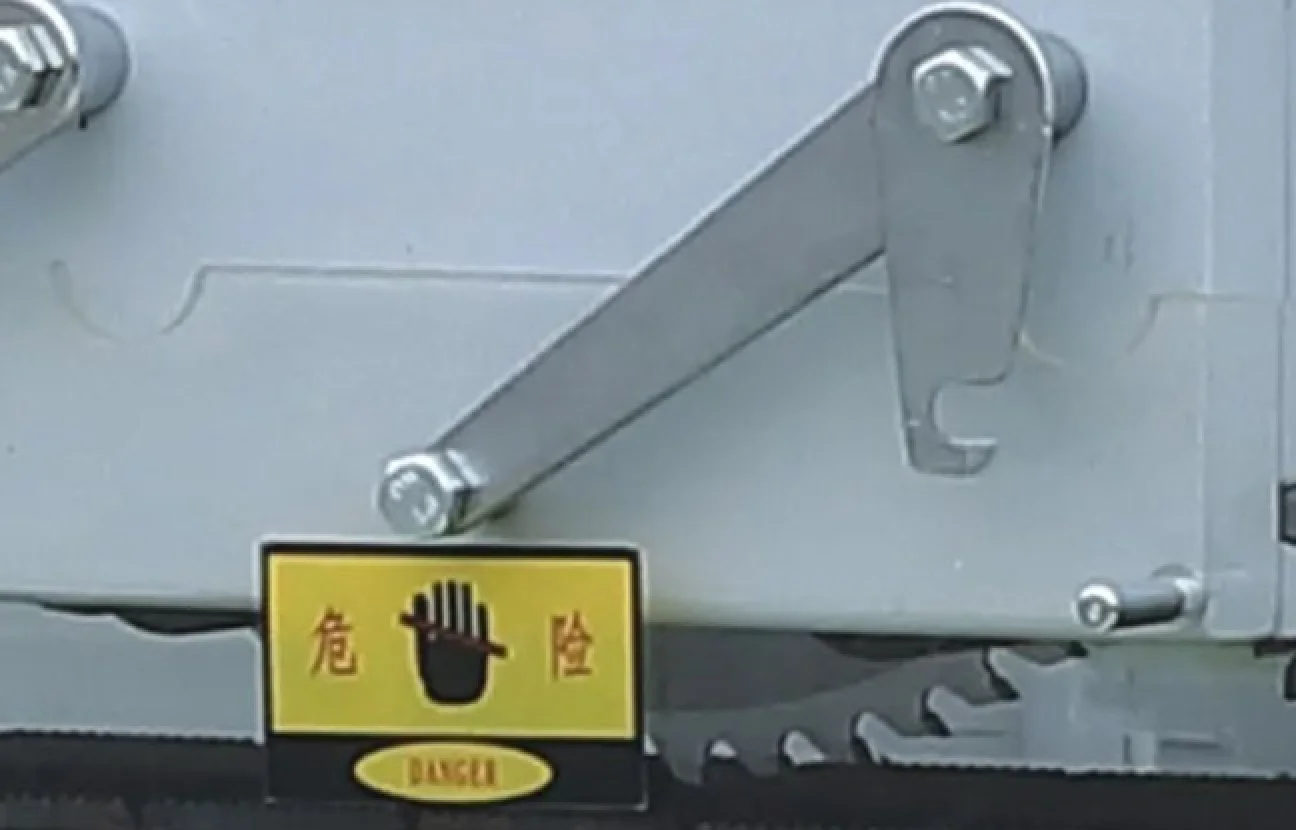

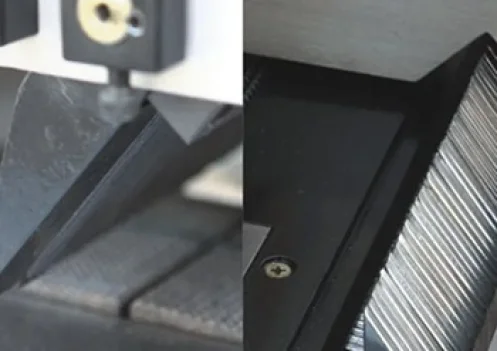

Specially designed side guard can prevent chips or knurls from spilling out to hurt people efficiency and prevent the operator putting his hand into the machine.

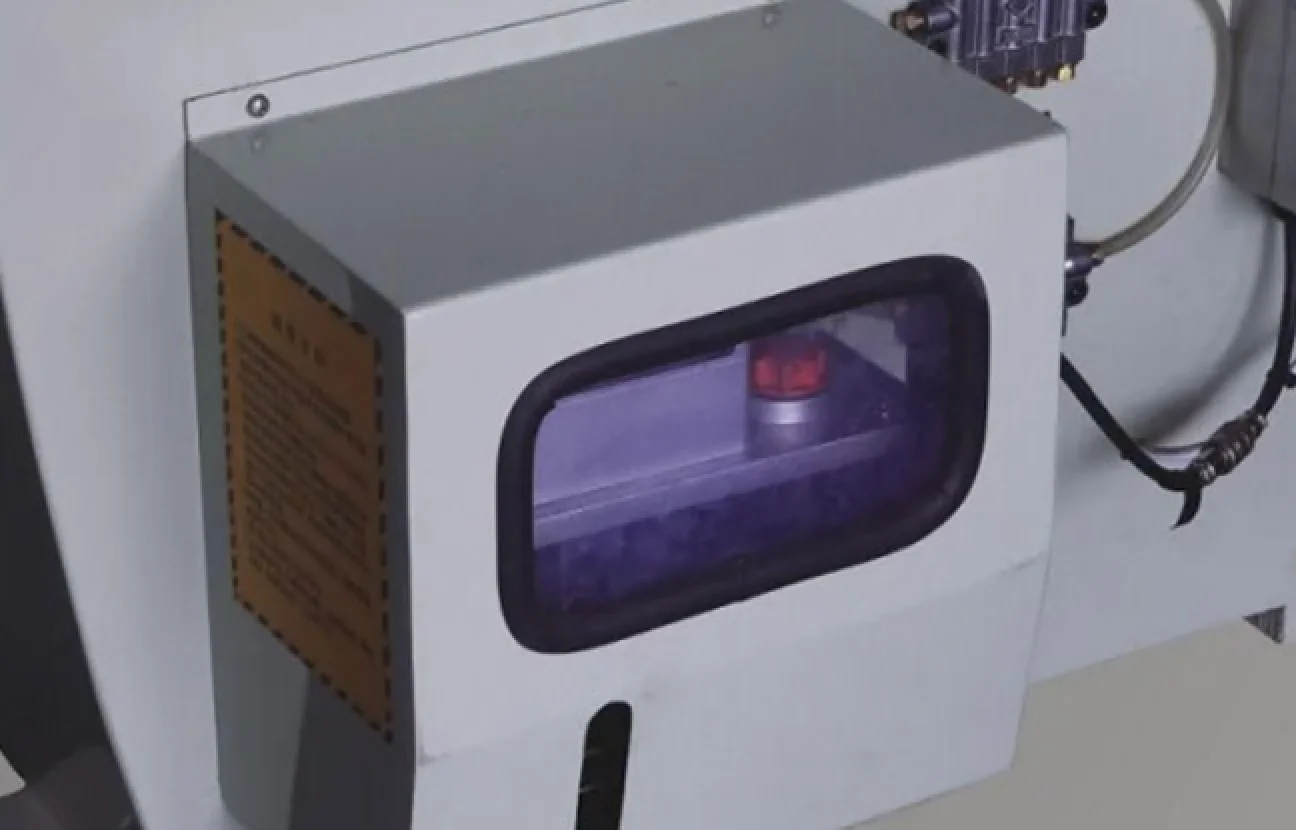

The automatic lubrication system circulates and lubricates the entire equipment to ensure efficient operation and prolong service life.

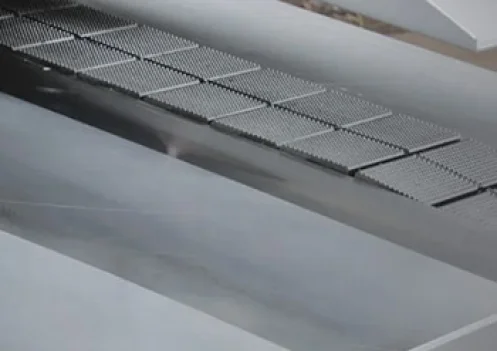

Conveyor chain blocks made by special materials with tooth surface for better friction and resistance ,stock feeding more smooth .

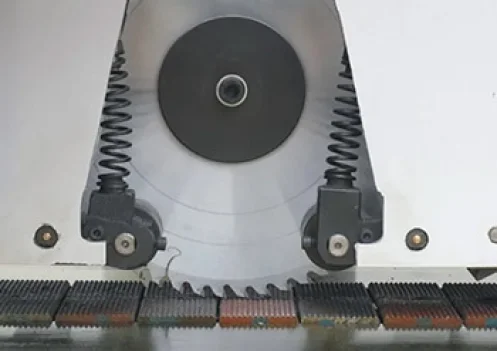

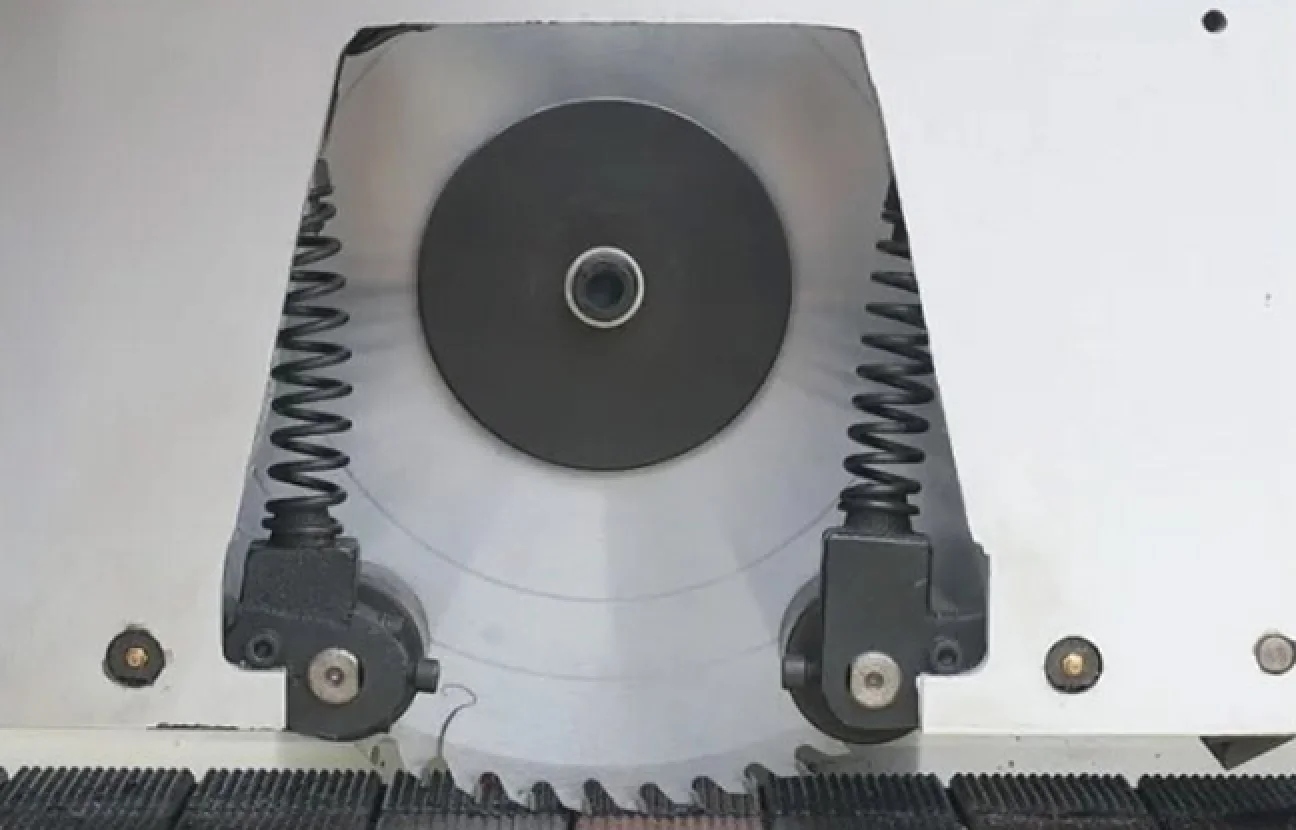

The anti-recoil device of the conveyor avoids the kickback of the workpiece and ensures cutting safety.
