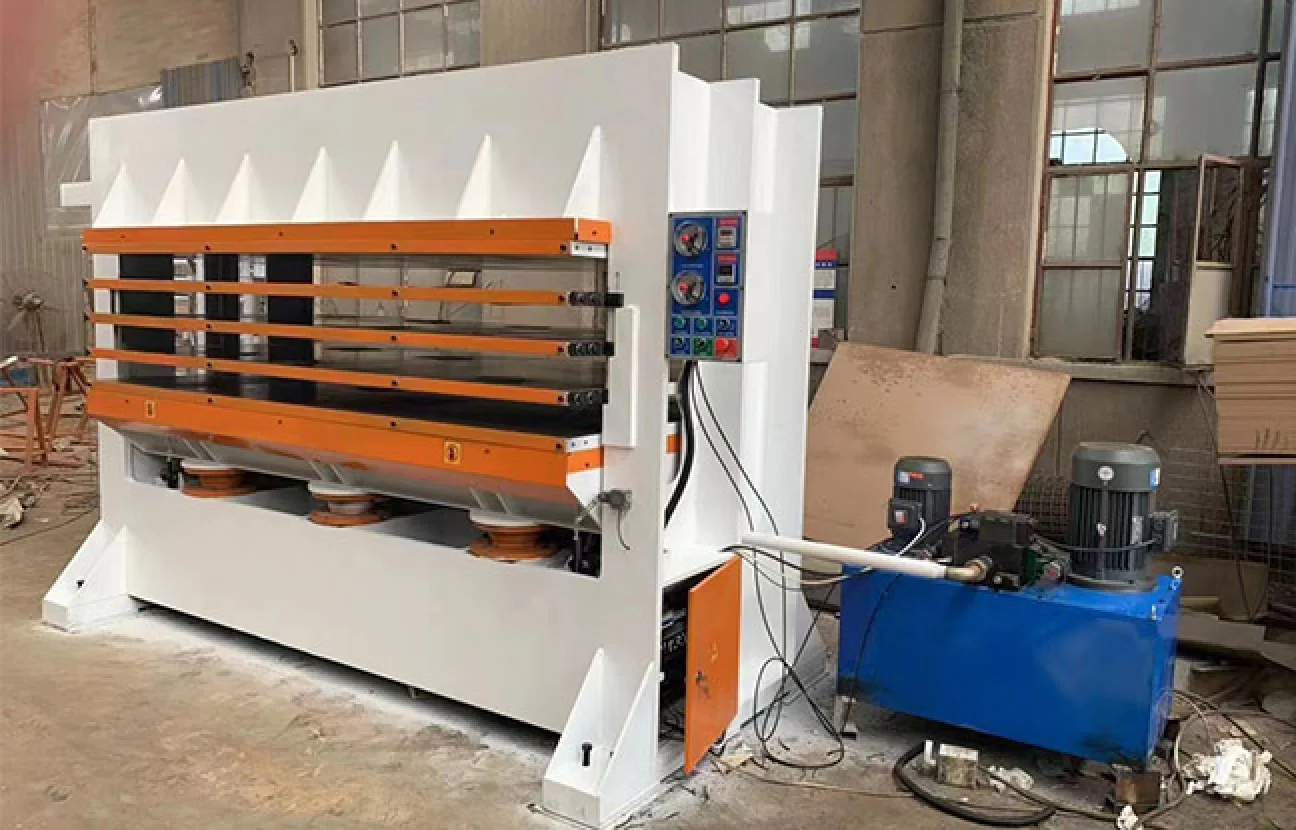

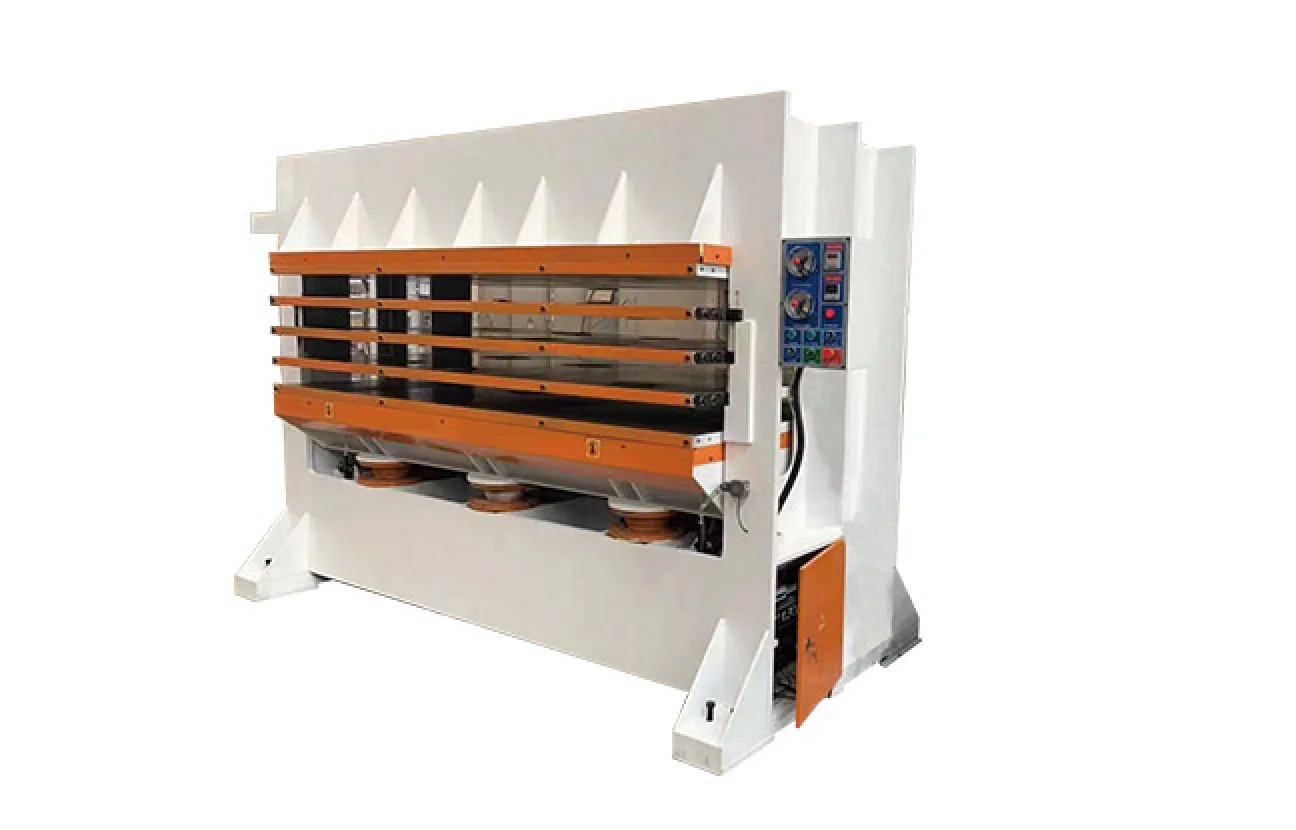

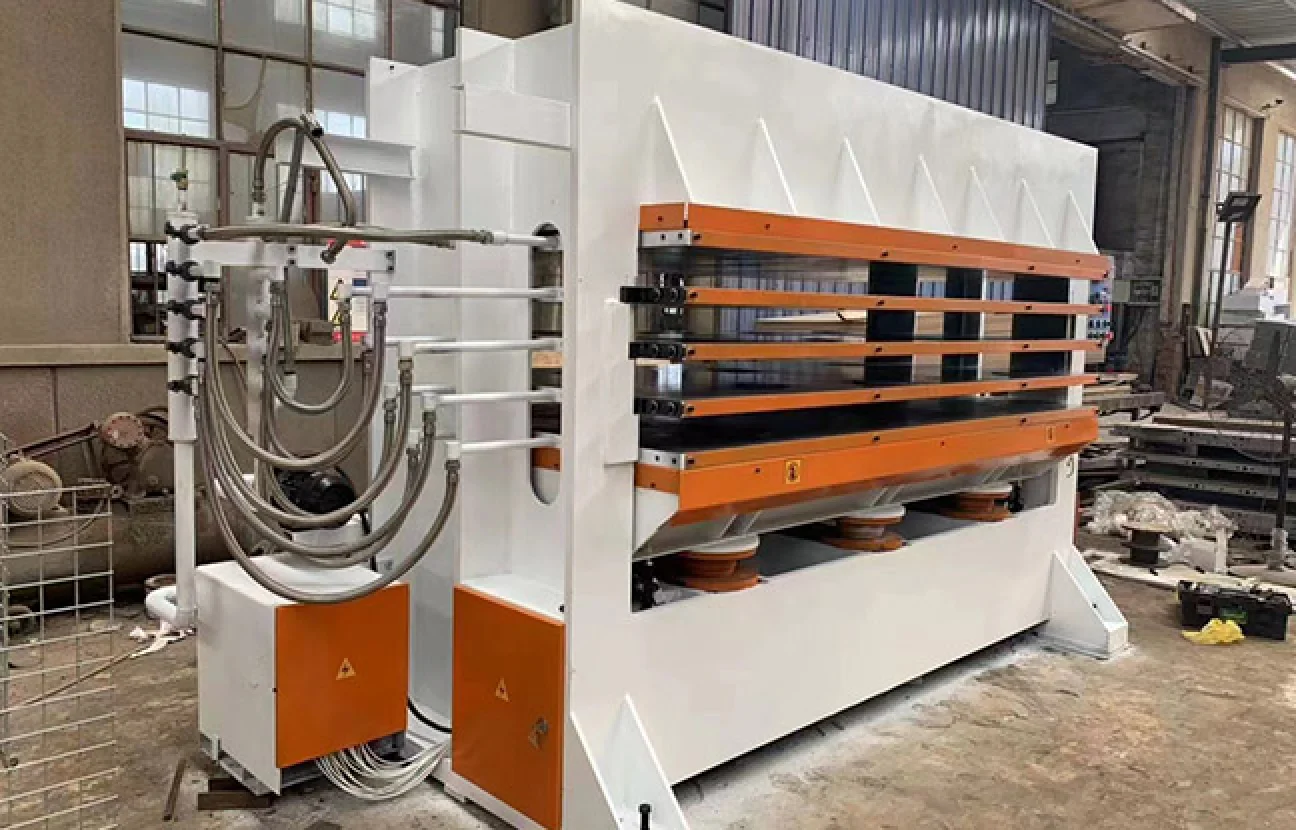

Hot Press Machine Wood

<div class="texts"> <p>● Hot press machine wood flatness is within 0.2mm</p><p>● Heavy duty machine body, work stably</p><p>● Higher working efficiency</p><p>● Long life service</p><p>● Customizable and OEM & ODM</p></div>

Hot Press Machine Wood
  • Hot Press Machine Wood
  • Hot Press Machine Wood
  • Hot Press Machine Wood

    • Hot Press Machine Wood

    ● Hot press machine wood flatness is within 0.2mm

    ● Heavy duty machine body, work stably

    ● Higher working efficiency

    ● Long life service

    ● Customizable and OEM & ODM

    Request a Quote
    Product Details
    Hot Press Machine Wood Technical Data:

    Model

    ZD214*3/30

    Maximum Working Pressure

    3000 KN

    Heating Plate Size

    2500*1300*42 mm

    Working Pressure Per Unit Area

    9.23KGF/cm2

    Number And Diameter of Hydraulic Cylinders

    6 *160 mm

    Machine Closing Speed

    30 mm/s

    Machine Heating Method

    Electric Heating Heat Transfer Oil

    Press Plate Opening Method

    Electric Control

    Working Layers

    Customized Upon Request

    Machine Maximum Working Temperature

    200 ℃

    Machine Working Power

    65.2 Kw
